Wi-Fi 6E M.2 AE Key Module AW7916-AED
$39.90
ASB916AED0101042
The AW7916-AED is a cutting-edge M.2 AW Key Module that supports WiFi6E 3000, Tri-band/DBDC and is based on Mediatek MT7916AN.
Out of stock. Will be available on Nov. 10th.
Available on backorder
AW7916-AED: High-Performance M.2 AW Key Module with Wi-Fi 6E Support and Advanced Features
Introducing the AW7916-AED, a state-of-the-art M.2 AW Key Module that’s all about next-level connectivity. It’s got your back with Wi-Fi 6E 3000 support, Tri-band/DBDC, and it’s powered by the Mediatek MT7916AN chipset.
This module is like a speed demon, offering up to 3Gbps of performance. It’s not picky when it comes to bandwidth either, with support for max bandwidths of 160MHz in the 5 or 6GHz range and 40MHz in the 2.4GHz range. And guess what? It’s got an extra antenna to supercharge downlink performance, thanks to zero-wait DFS or MRC.
But here’s where it gets really interesting – the FEM radio integration into the Mediatek Filogic 630 platform brings some size and cost benefits to the table.
This module is a true multitasker. It can handle up to 24 users with OFDMA, supports MU-MIMO clients, can store 512 MAC entries, and has room for 16 MBSSID. Plus, it’s all about Wi-Fi 6 Release 2 features, so you’re not missing out on anything.
And the chipset inside? It’s a real powerhouse with a hardware-based Wi-Fi offload engine. That means it’s not just fast; it’s also energy-efficient and reduces the load on your router’s AP.
But wait, there’s more! The Filogic 630 can team up with the Filogic 830 SoC platform, giving you a full arsenal of Tri-band Wi-Fi 6/6E solutions for your routers and repeaters.
In a nutshell, the AW7916-AED is your gateway to the future of high-speed, efficient, and top-performing Wi-Fi.

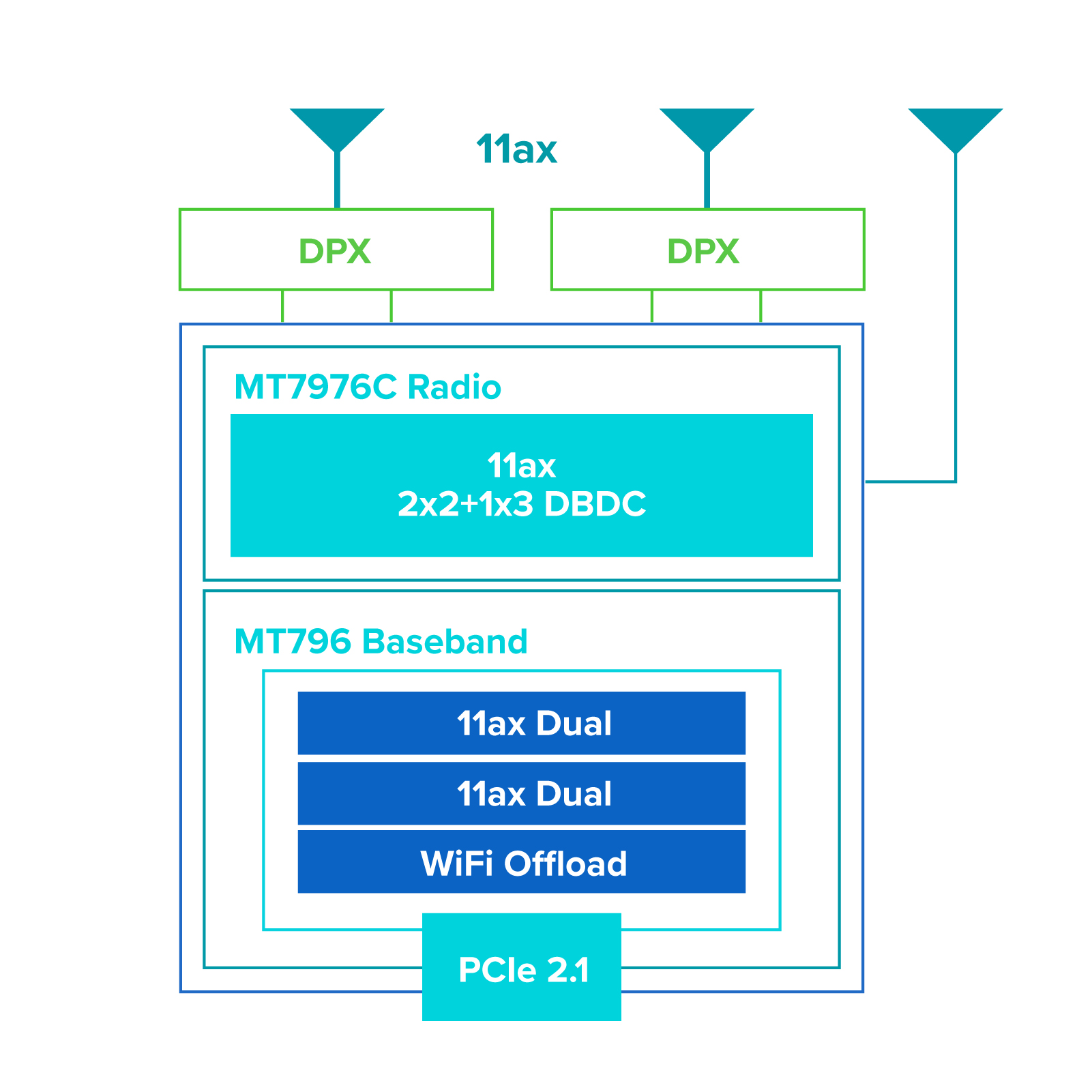

- IEEE 802.11 a/b/g/n/ac/ax compliant
- Support 20/40MHz bandwidth in G-band, and 20/40/80/160MHz bandwidth in A-band
- G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps
- Support MU-MIMO TX/RX
- Support MU-OFDMA TX/RX
- Support STBC, LDPC, TX Beamformer and RX Beamformer
- Support greenfield, mixed mode, legacy modes
- Security support for WFA WPA/WPA2/WPA3 personal, WPS2.0
- QoS support of WFA WMM, WMM PS
- 32-bit RISC MCU for Wi-Fi protocols and Wi-Fi offload
- Embedded SRAM/ROM
- UART interface with hardware flow control
- Programmable and multiplexed GPIO pins
- PCIe device fully compliant to PCIe v2.1 specification
- Integrate 4Kbit efuse to store device specific information and calibration data
| Standards | Wireless: G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps |
| BUS Interface | M.2 AE Key |
| Data Rate | IEEE 802.11ax 3000Mbps@TX/RX |
| Output Power | 11b: 23dbm+/- 1.5dbm @ 11Mbps 11g: 21dbm+/- 1.5dbm @ 54Mbps 11g/n: 21dBm +/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE40 11a: 20dBm +/- 1.5dbm @ 54Mbps 11a/n: 20dBm+/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE40 11ac HE20: 20+/-1.5dBm@MCS8 11ac HE40: 17+/-1.5dBm@MCS9 11ac HE80: 14.5+/-1.5dBm@MCS9 11ax HE20: 20+/-1.5dBm@MCS9 11ax HE40: 17+/-1.5dBm@MCS9 11ax HE80: 13.5+/-1.5dBm@MCS11 11ax HE160: 13.5+/-1.5dBm@MCS11 |
| Receiver Sensitivity | 11b: -99dBm@11Mbps 11g: -95dBm@54Mbps 11g/n: -90dBm@HT20,MCS7, -86dBm@HT40,MCS7 11a: -90Bm@54Mbps 11a/n: -85dBm@HT20,MCS7, -81dBm@HT40,MCS7 11ac: -90dBm+/-2dBm @VHT20 MCS8 11ac: -85dBm+/-2dBm @VHT40 MCS9 11ac: -68dBm+/-2dBm @VHT80 MCS9 11ax: -61dBm+/-2dBm @HE20 MCS11 11ax: -58dBm+/-2dBm @HE40 MCS11 11ax: -55dBm+/-2dBm @HE80 MCS11 |
| Antenna | External Antenna connector (IPEX) x2 |
| Frequency Range | US, Canada 2.412GHz~2.462 GHz (CH1~CH11) EU, Japan: 2.412GHz~2.472GHz (CH1~CH13) 5G Bands: 5.15GHz ~5.875GHz 6G Bands: 5.925 ~ 7.125 GHz |
| Software | Security: 64/128-bit WEP Encryption, WPA, WPA2 Driver: Linux |
| Operating Voltage | DC 3.3V ± 5% |
| Temperature | Operating: 0°C ~ +70°C Storage : -20°C ~ +90°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
| Dimension | 50.95(H) x 30(W)mm |
Package with Heatsink 30x30x10mm Aluminum material
Power consumption maximum is 8W, average is 5W. Main board Power Supply design please provide 3.3V 3.5A, minimum 3.3V 3A.
