【Wi-Fi 6E EFFICIENT Package】AW7916-NPD Wi-Fi 6E AX3000 Module, Precision Coaxial Cables, and Wi-Fi 7 Antennas

$80.94

Seamlessly upgrade your wireless setup with our exclusive bundle, featuring one AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module, three high-performance Coaxial Cables, and three advanced Wi-Fi 7 Antennas. Ideal for achieving superior wireless communication.

Package detail

Wi-Fi 6E Mini PCIe Module AW7916-NPD Module:  AW7916-NPD Wi-Fi 6 Mini PCIe Module *1pc
1130150131X080R_2 Cable: 1130150131X080R Coaxial Cable 1.13 diameter SMA RP IPEX Pigtail *3pcs
Wi-Fi 7 6E 2.4 GHz/ 5 GHz/ 6 GHz Antenna ANTS0WF602M01001 Antenna: ANTS0WF602M01001 Antenna Wi-Fi 7 6E 2.4GHz 5GHz 6GHz *3pcs



x

Looking for an efficient and comprehensive solution to enhance your wireless communication systems? Our carefully curated bundle: W7916-NPD Wi-Fi 6E AX3000 Module, Precision Coaxial Cables, and Wi-Fi 7 Antennas is here to simplify your purchase. It includes:

Package detail

AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module Module:  AW7916-NPD

1 x AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module: Experience cutting-edge Wi-Fi 6E technology with this mini PCIe module, powered by Mediatek MT7916AN chipset, 802.11ax 3000 G-band 2T2R and A-band 3T3R 2ss Dual Bands Dual Concurrents, perfect for high-speed, low-latency wireless networking.

1130150131X080R_2 Cable:  Coaxial Cable 1.13 diameter SMA RP IPEX Pigtail 1130150131X080R

3 x Precision-Engineered Coaxial Cables 1130150131X080R: Ensure optimal signal transmission with these coaxial cables, featuring SMA RP to IPEX connectors, designed for minimal signal loss and maximum reliability.

Wi-Fi 7 6E 2.4 GHz/ 5 GHz/ 6 GHz Antenna ANTS0WF602M01001 Antenna: Antenna Wi-Fi 7 6E 2.4GHz 5GHz 6GHz ANTS0WF602M01001

2400-2500MHz, 5150-5850MHz, 6150-7200MHz, SMA Plug, 2-5dBi, 188×21.6mm

3 x Wi-Fi 7 Antennas ANTS0WF602M01001: Stay ahead with these advanced Wi-Fi 7 antennas, covering a wide range of frequencies and offering robust signal strength and stability.

This bundle is designed for buyers who seek the convenience of a complete, high-quality wireless networking setup. Perfect for both commercial and technical projects, it offers exceptional performance and ease of integration. Upgrade your wireless capabilities today!


The Wi-Fi 6E AX3000 Mini PCIe Module AW7916-NPD supports Wi-Fi 6E 3000 and Tri-band/DBDC. It is powered by the Mediatek MT7916AN chipset, offering high performance.
The Wi-Fi 6E AX3000 Mini PCIe Module AW7916-NPD supports Wi-Fi 6E 3000 and Tri-band/DBDC. It is powered by the Mediatek MT7916AN chipset, offering high performance.

AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module, powered by Mediatek MT7916AN chipset –  802.11ax 3000 G-band 2T2R and A-band 3T3R 2ss Dual Bands Dual Concurrents

Certification

FCC ID: TKZXXXXXX-XXX; IC ID: 996XX-XXXXXXXX, CE (If you require detailed certification numbers, please contact our Sales Team: sales@asiarf.com)

The AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module

Introducing the AW7916-NPD AX3000 Mini PCIe Module, a powerhouse in wireless networking powered by MediaTek’s MT7916AN chipset. This module is a game-changer for Wi-Fi setups, offering support for the ultra-fast Wi-Fi 6E standard with speeds up to 3Gbps. It’s a multi-band marvel, handling the 2.4GHz, 5GHz, and 6GHz bands with ease, featuring 160MHz bandwidth on the 5 and 6GHz bands, and 40MHz on the 2.4GHz band. AsiaRF’s cutting-edge design includes G-band 2T2R + A-band 3T3R 2ss DBDC technology, ensuring robust and seamless network performance, even in densely populated areas. The additional antenna boosts download speeds, making the AW7916-NPD AX3000 ideal for high-traffic networks without compromising speed or efficiency.

Specification Comparison Chart : Best-Selling Wi-Fi Module




1130150131X080R_2



Coaxial Cable 1.13 diameter SMA RP IPEX Pigtail 1130150131X080R | Description



The 1130150131X080R is a precision-engineered Coaxial Cable with a 1.13 diameter, featuring SMA RP to IPEX connectors. This pigtail cable is designed for optimal performance in RF applications, offering reliable connectivity and minimal signal loss. It’s an ideal choice for both commercial and technical projects requiring high-quality RF cabling.

It is recommended to pair this with the AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module. Click here to learn more about the AW7916-NPD.


Wi-Fi 7 6E 2.4 GHz/ 5 GHz/ 6 GHz Antenna ANTS0WF602M01001



 Antenna Wi-Fi 7 6E 2.4GHz 5GHz 6GHz ANTS0WF602M01001 | Description



The Wi-Fi 7 Antenna ANTS0WF602M01001 is an advanced antenna solution for modern wireless communications. It supports frequencies from 2400-2500MHz, 5150-5850MHz, to 6150-7200MHz, ensuring wide compatibility.

The antenna features an SMA Plug and offers a gain of 2-5dBi, promising strong and reliable signal reception. With dimensions of 188×21.6mm, it’s compact yet effective for both personal and professional use.

This antenna is ideally paired with the AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module, enhancing its capabilities. Click here to learn more about the AW7916-NPD.



The Wi-Fi 6E AX3000 Module AW7916-NPD provides a more powerful experience for high-bandwidth applications. By utilizing up to 14 additional 80MHz channels or 7 extra ultra-wide 160MHz channels in the 6GHz frequency band, it supports smooth and high-definition video calls and can handle large-scale data transmission.
The Wi-Fi 6E AX3000 Module AW7916-NPD provides a more powerful experience for high-bandwidth applications. By utilizing up to 14 additional 80MHz channels or 7 extra ultra-wide 160MHz channels in the 6GHz frequency band, it supports smooth and high-definition video calls and can handle large-scale data transmission.

Wi-Fi 6E Mesh+Security

A mesh system can provide offices and enterprises with a more reliable network connection, covering a wide area, and allowing numerous devices to connect to the network, offering better performance in densely populated device areas. Even as users move to different areas, their devices can smoothly switch to the strongest Wi-Fi access point without the need for manual reconnection or experiencing disconnection.

The Wi-Fi 6E AX3000 Module AW7916-NPD adopts the latest WPA3 security protocol, safeguarding users from unauthorized access and data breaches, addressing security threats in modern wireless networks.

Accurate and fast remote operation

Compared to the past, Wi-Fi 6E enables remote operations with higher precision. This advancement is expected to drive the progress of remote medical services and open up possibilities for practical applications of remote surgeries in the medical field. With Wi-Fi 6E, healthcare professionals can perform surgeries with greater precision and less invasiveness, marking a significant breakthrough in the field of medical services. Additionally, in manufacturing and logistics, technologies such as robotic arms and drones can execute tasks more swiftly and accurately, reducing the likelihood of errors. This technology also fosters progress in smart and automated systems, bringing forth more innovations and efficiency for businesses.

Applications:

🌐 Applications in Real-World Scenarios:
Wi-Fi 6E isn’t merely an incremental update; it’s a leap forward that is set to revolutionize sectors like healthcare, manufacturing, and logistics.

🏥 Healthcare:
The increased precision afforded by Wi-Fi 6E is poised to be a game-changer for remote medical services, paving the way for groundbreaking applications such as remote surgeries. Health professionals can now execute procedures with unprecedented accuracy, reducing invasiveness and enhancing patient outcomes.

🏭 Manufacturing & Logistics:
In industrial settings, the AW7916-NPD’s rapid and precise remote operation capabilities facilitate smarter, more efficient workflows. From robotic arms to drones, tasks are executed swiftly and accurately, thereby minimizing the margin for error.

🌆 Smart Systems:
This technology is also a catalyst for innovations in smart and automated systems, empowering businesses to operate with greater efficiency and agility.

At the end of 2022, the University of Michigan in the United States underwent a revolutionary change by deploying over 16,000 Wi-Fi access points across 225 buildings and outdoor areas on campus. This remarkable achievement allowed the university to support up to 70,000 device connections simultaneously. Through this extensive Wi-Fi infrastructure, the University of Michigan can meet the growing data demands, enhance teaching and campus management efficiency, and foster the application and development of smart devices on campus. This will have a positive impact on various aspects of academic research, student learning, and campus life.

Wi-Fi 6E is a significant trend in the current wireless network market. With continuous technological advancements and increasing data demands, Wi-Fi 6E has become the representation of the next-generation wireless network technology and is gaining widespread attention and adoption in the market.



Learn more on our blog : 🚀 Elevate Your Enterprise Network with AsiaRF’s Cutting-Edge Wi-Fi 6E Module!
Or follow us on Linkedin :  Why use Wi-Fi 6E? What are the benefits of Wi-Fi 6E products?



AWLRGW-001 LoRaWAN Gateway Module



AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module | Features

  • IEEE Standard: 802.11 a/b/g/n/ac/ax compliant
  • Bandwidth : Support 20/40MHz bandwidth in G-band, and 20/40/80/160MHz bandwidth in A-band
  • PHY rate: G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps
  • Support MU-MIMO TX/RX
  • Support MU-OFDMA TX/RX
  • Support STBC, LDPC, TX Beamformer and RX Beamformer
  • Modes: greenfield, mixed mode, legacy modes
  • Security: WFA WPA/WPA2/WPA3 personal, WPS2.0
  • Intelligent power saving: QoS support of WFA WMM, WMM PS
  • 32-bit RISC MCU for Wi-Fi protocols and Wi-Fi offload
  • Data Storage: Embedded SRAM/ROM
  • UART interface with hardware flow control
  • Programmable and multiplexed GPIO pins
  • Fully adherent: PCIe device fully compliant to PCIe v2.1 specification
  • Integrate 4Kbit efuse to store device specific information and calibration data

AWLRGW-001 LoRaWAN Gateway Module



AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module | Specification

Standards Wireless: G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps
Data Rate IEEE 802.11ax 3000Mbps@TX/RX
Output Power 11b: 23dbm+/- 1.5dbm @ 11Mbps
11g: 21dbm+/- 1.5dbm @ 54Mbps
11g/n: 21dBm +/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE4011a: 20dBm +/- 1.5dbm @ 54Mbps
11a/n: 20dBm+/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE4011ac HE20: 20+/-1.5dBm@MCS8
11ac HE40: 17+/-1.5dBm@MCS9
11ac HE80: 14.5+/-1.5dBm@MCS911ax HE20: 20+/-1.5dBm@MCS911ax HE40: 17+/-1.5dBm@MCS911ax HE80: 13.5+/-1.5dBm@MCS1111ax HE160: 13.5+/-1.5dBm@MCS11
Receiver Sensitivity 11b: -99dBm@11Mbps
11g: -95dBm@54Mbps
11g/n: -90dBm@HT20,MCS7, -86dBm@HT40,MCS7
11a: -90Bm@54Mbps
11a/n: -85dBm@HT20,MCS7, -81dBm@HT40,MCS711ac: -90dBm+/-2dBm @VHT20 MCS8
11ac: -85dBm+/-2dBm @VHT40 MCS9
11ac: -68dBm+/-2dBm @VHT80 MCS911ax: -61dBm+/-2dBm @HE20 MCS11
11ax: -58dBm+/-2dBm @HE40 MCS11
11ax: -55dBm+/-2dBm @HE80 MCS11
Certification CE
FCC ID: TKZAW7916-NPD
IC ID: 9968A-W7916NPD
Antenna External Antenna connector (IPEX) x3
Frequency  Range US, Canada 2.4G Bands: 2.412GHz~2.462 GHz, 5G Bands:5.15GHz ~5.875GHz, 6G Bands: 5.925 ~ 7.125 GHz
EU, Japan: 2.4G Bands: 2.412GHz~2.472GHz, 5G Bands:5.15GHz ~5.875GHz, 6G Bands: 5.925 ~ 7.125 GHz
Software Security: 64/128-bit WEP Encryption, WPA, WPA2
Driver: Linux
Operating Voltage DC 3.3V ± 5%
Temperature Operating: 0°C ~ +70°C
Storage : -20°C ~ +90°C
Humidity Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~90% non-condensing

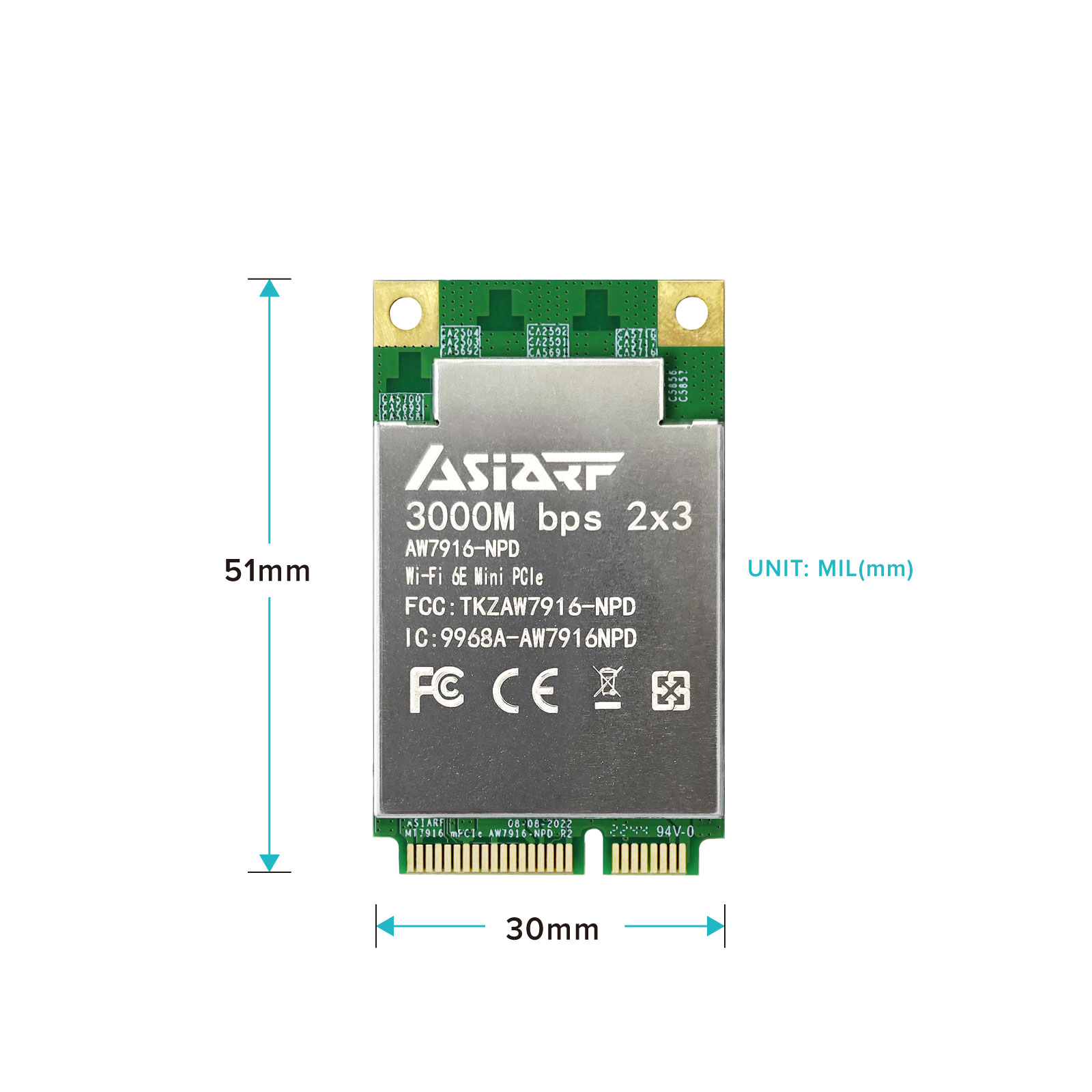

Dimension 50.95(H) x 30(W)mm

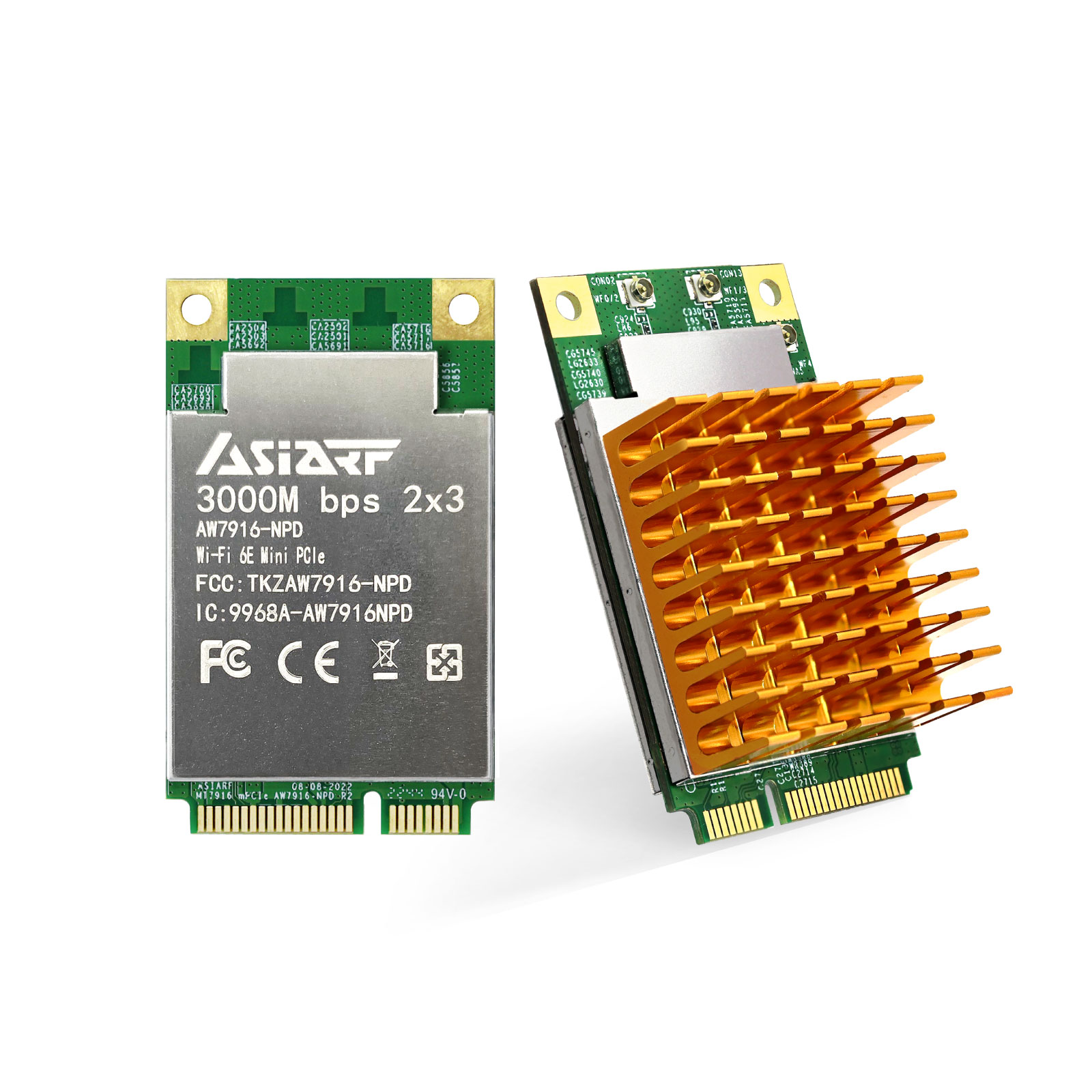

Package with Heatsink 30x30x10mm Aluminum material

Power consumption maximum is 8W, average is 5W.
Main board Power Supply design please provide 3.3V 3.5A, minimum 3.3V 3A.




Wi-Fi 7 6E 2.4 GHz/ 5 GHz/ 6 GHz Antenna ANTS0WF602M01001



ANTS0WF602M01001 Wi-Fi 7 Antennas | Specification



Frequency Range 2400~2500MHz

5150~5850MHz

6150~7200MHz

Impedance 50Ωy
VSWR 2400~2500MHz@≤2.5

5150~5850MHz@≤2.5

6150~7200MHz@≤4.0

Gain 2-5dBi
Admitted power radiation 1W
Pattern of Radiation Toroidal
Radiation Omni
Polarization Vertical
Connector Type RP-SMA Plug

Mechanical properties

Operation temperature range  -20℃~+85℃
Storage temperature range -20℃~+85℃
Color Black
Dimension As diagram
Weight 11.4 g
Main Material PC/PC+PBT/POM/ Brass/RG316/PCB/
Weight 0.3 kg
Dimensions 29 × 13 × 6.2 cm
