Description
Expand Your M.2 B+M Key Slot with Storage or WWAN Support
The ACM2BM-2E1-2 allows devices with M.2 E Key or A-E Key interface (typically used for Wi-Fi, and other wireless modules with PCle signal) to be connected to a host wth an M.2 B/M Key slot (typically used for PCle/NVMe SSD with PCle signal).
This adapter is ideal for systems that only provide SSD slot but require support for Wireless modules.

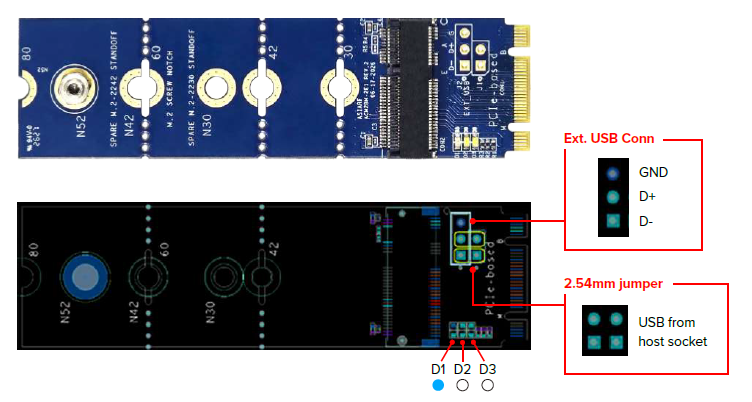

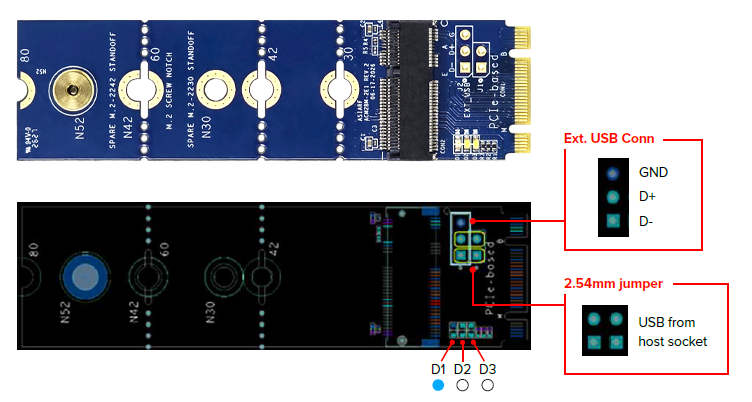

Cautions
- Unplug the AC power before installation/removal.
- This adapter only provides physical pin mapping; protocol incompatibility will prevent operation.
For further technical details, consult the official M.2 specification or contact your hardware provider.
Application Examples
Expand your free storage slots for Wi-Fi modules.
New Version, More Possibilities

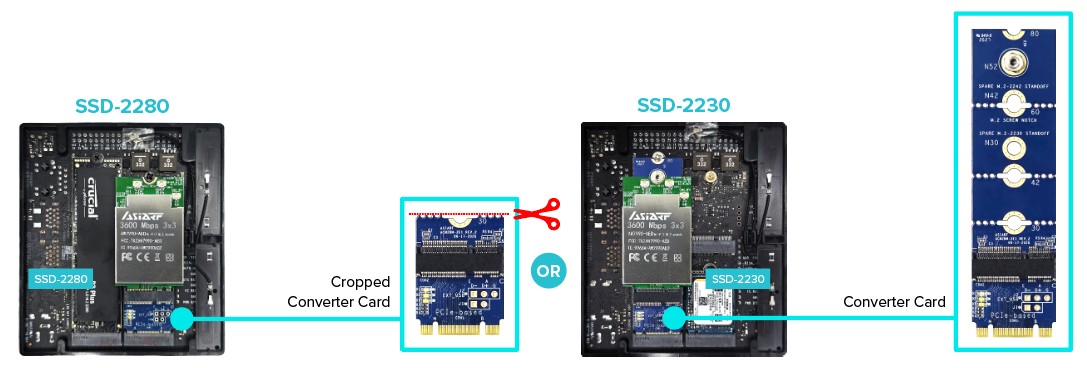

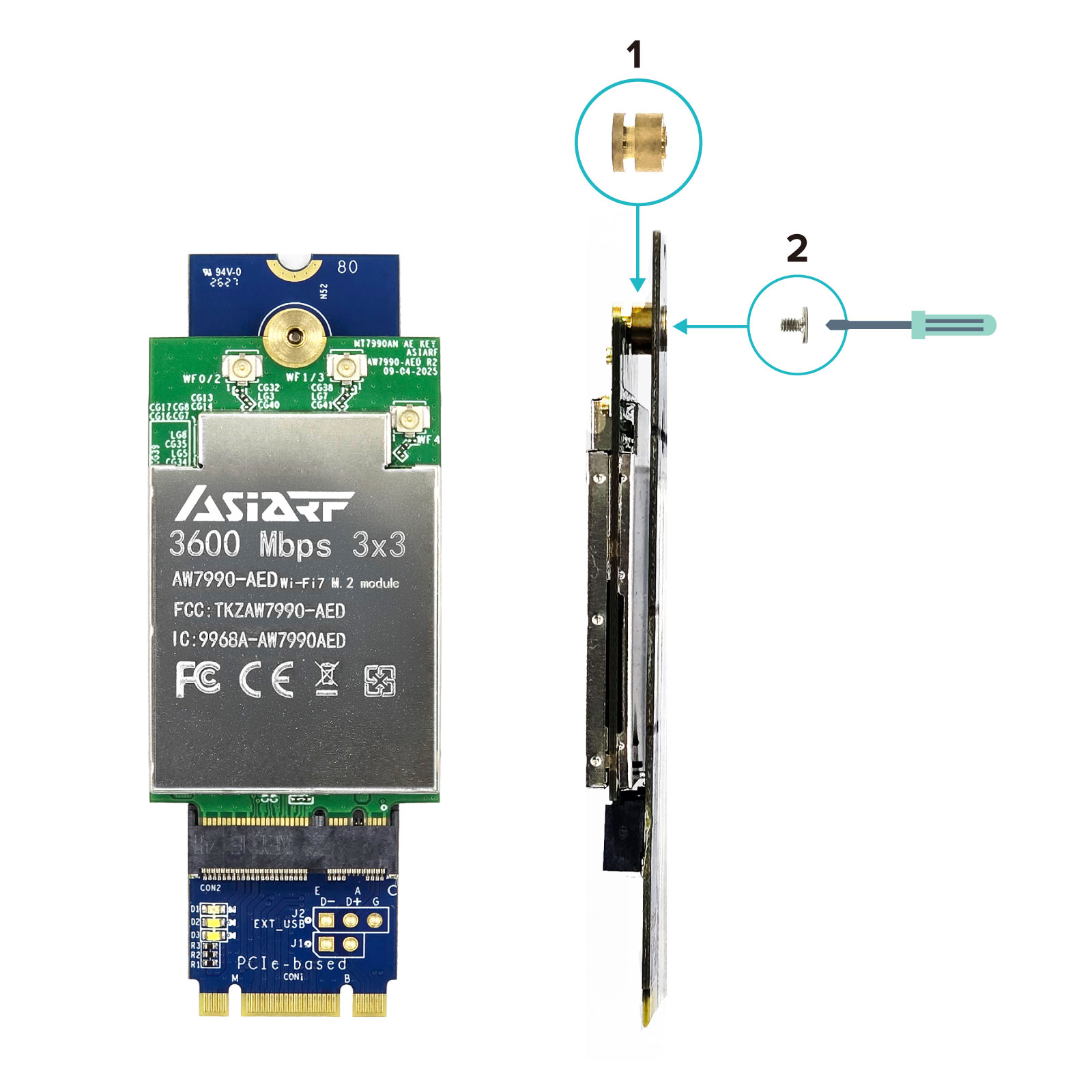

ACM2BM-2E1-2 is compatible with the NVIDIA Jetson Orin Nano Developer Kit.

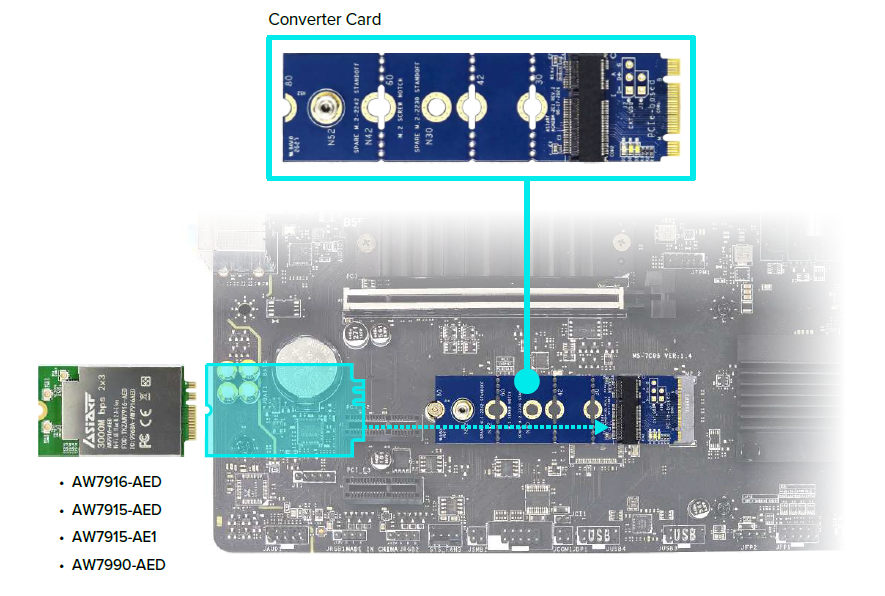

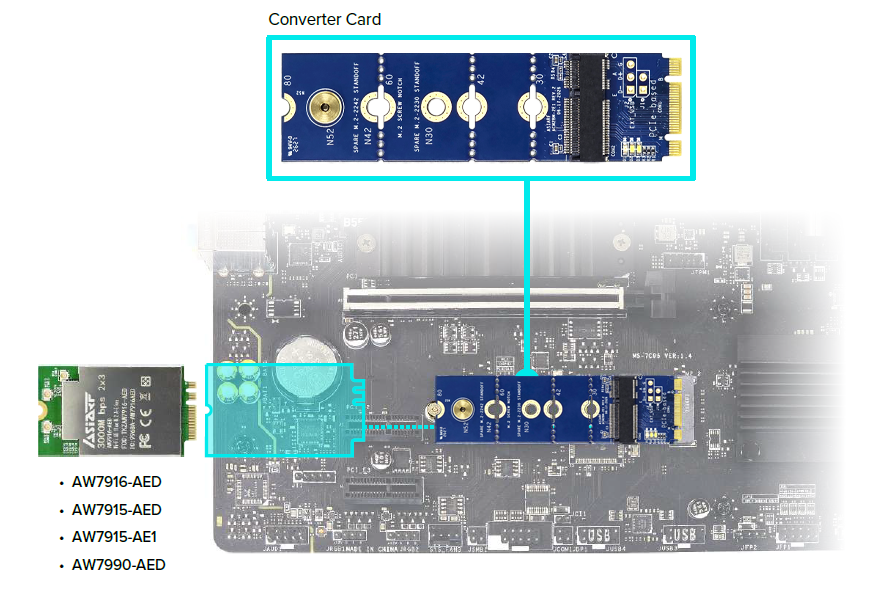

Single Application Mode on PC Motherboard
Why AsiaRF
- Flexible Product Portfolio
From low-power to high-performance modules, with standard and custom form factors—built to match diverse project requirements. - Proven Across Industries
Deployed in manufacturing, retail, energy, and smart agriculture, enabling reliable connectivity in real-world applications. - Quality You Can Trust
Every product undergoes rigorous validation and testing to ensure consistent performance and long-term reliability. - Engineering-Level Support
Our technical team provides responsive, end-to-end support—from design-in to deployment. - Optimized Cost Efficiency
Streamlined solutions and periodic promotions help reduce total cost of ownership without compromising performance.
Backed by strategic partnerships with leading chipset providers like MediaTek and Morse Micro, AsiaRF delivers future-ready wireless solutions with strong supply continuity and access to next-generation technologies.
Learn more on our blog : https://asiarf.com/category/blog/Setting New Standards for Sub-GHz Communication!
Or follow us on Linkedin : https://www.linkedin.com/company/asiarf/posts/?feedView=all
Features
- High-quality PCB for stable signal transmission
Application Examples
- Installing Wi-Fi module in embedded systems with only M Key slots
Standard
| Model Name | ACM2BM-2E1-2 |
| Device interface | M.2 E Key (Socket 2/3, supports 22×42/60/80 mm) |
| Supported Protocols | M.2 B+M Key (Socket 1, 2230/2242/3042/3052) |
| Supported Protocols | USB, PCIe x2 (depending on host and module) |
| Supported Devices | USB, PCIe x2 (depending on host and module) |
| Dimensions | 22 mm x 80 mm (host side), and provides 2242/2260 screw holes also. |
| Installation | Tool-less insertion, screw mounting |
| Power Supply | Operation W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Operating Temp. | 0°C ~ 70°C |
| Storage Temp. | -40°C ~ 85°C |
| PCB Material | High-quality PCB, gold-plated edge connector |

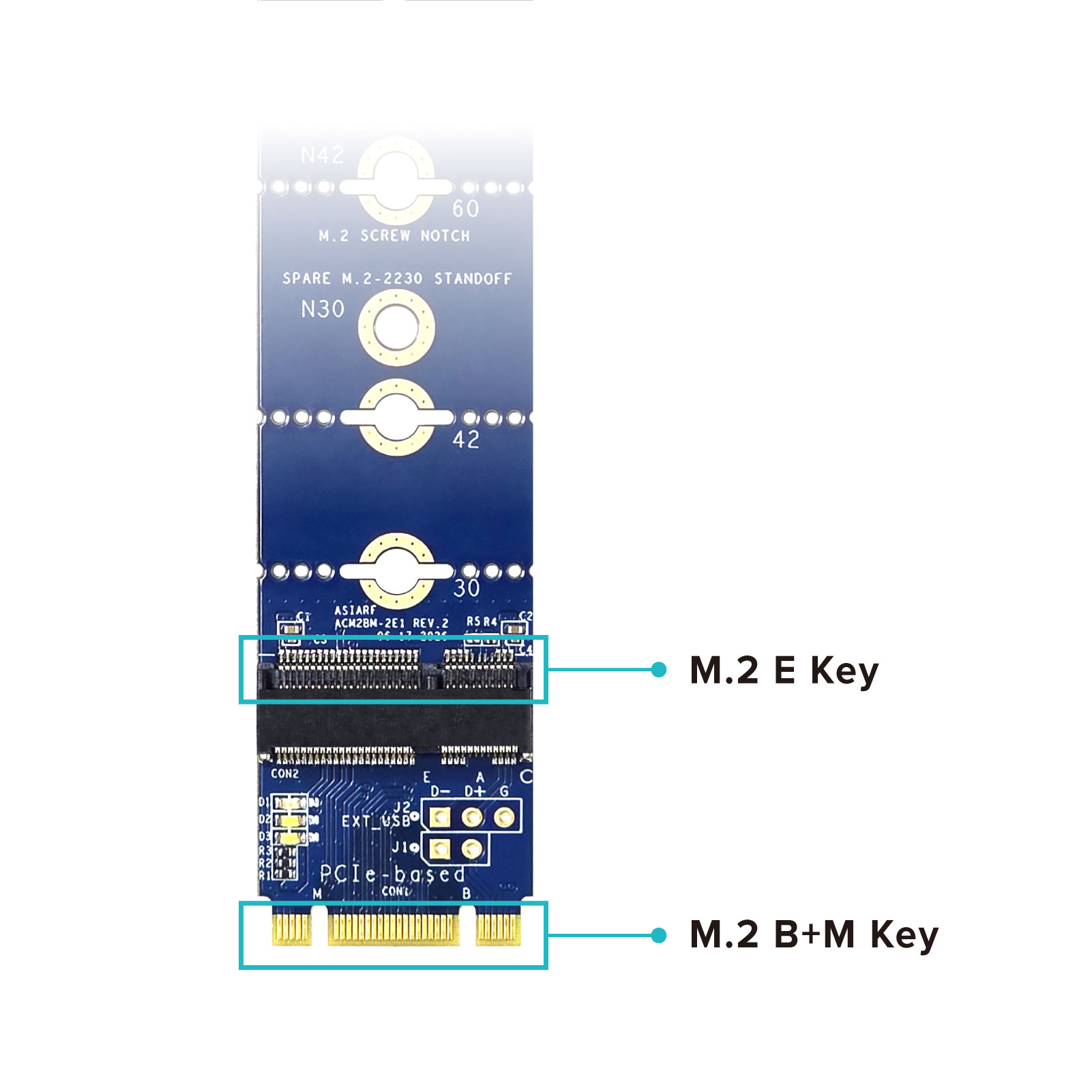

Pinout Mapping
| M.2 B+M Key Pins | M.2 E Key Pins | Function/Notes |
| 1~75 | 1~75 | Standard mapping |
| B Key | E Key | Protocol dependent |
Note : Some pins may not be fully mapped due to differences in protocol support (e.g., PCIe lane count, USB, I2C, UART). Actual compatibility depends on the host and module used.

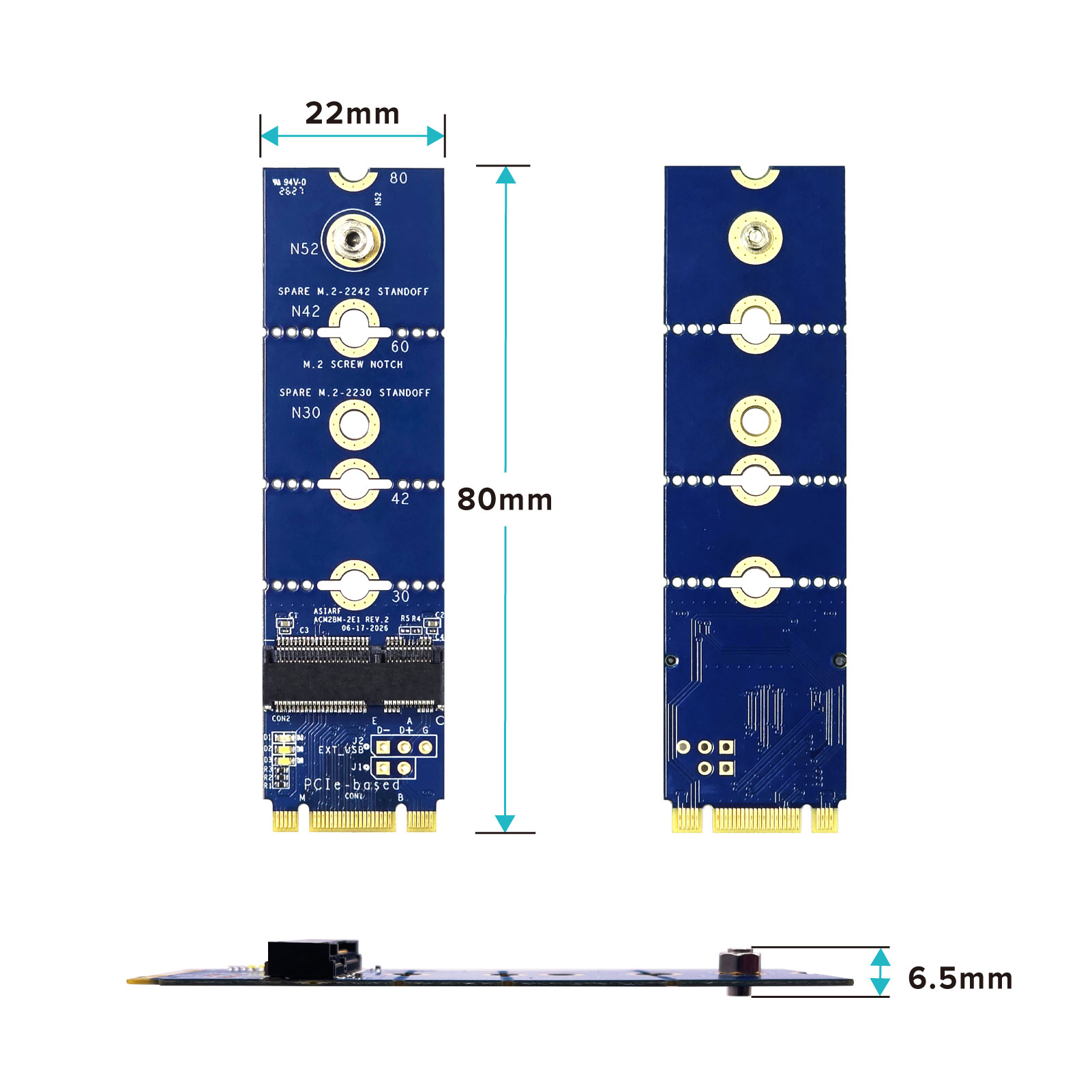

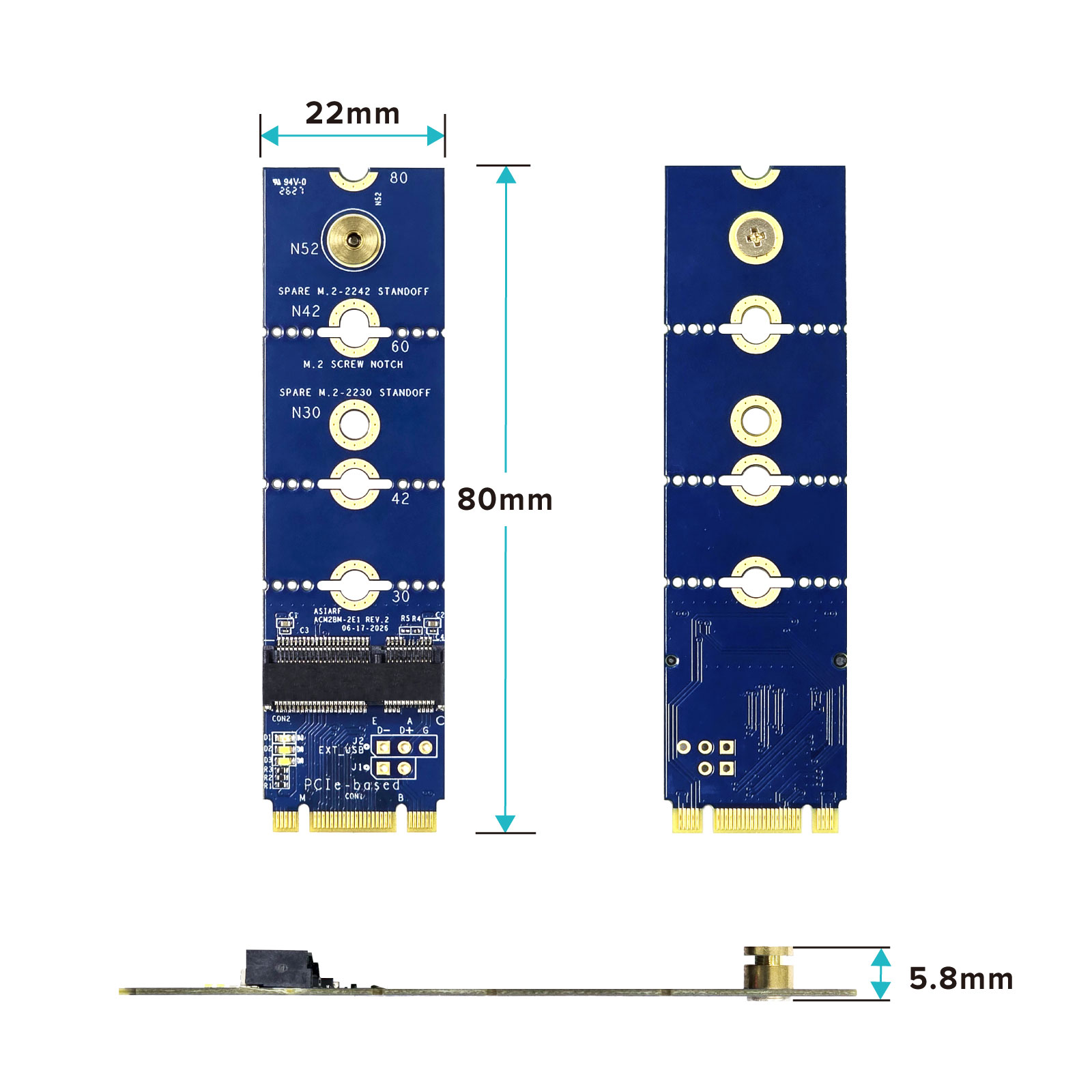

Mechanical Drawing
| Parameter | Dimension |
| Length | 80 mm |
| Width | 22 mm |
| Thickness | 1.2 mm |
Additional information
| Weight | 0.0185 kg |
|---|---|
| Dimensions | 10 × 6.5 × 1.5 cm |
