AW7915-NP1: High-Speed Wi-Fi 6 Mini PCIe Module with Low Power Consumption — Wi-Fi 6 4T4R Dual Bands Selectable mPCIe Card IEEE802.11ax / ac / a / b / g / n 2.4G / 5GHz powered by MediaTek MT7915
FCC ID: CE, FCC ID: TKZXXXXXX-XXX; IC ID:996XX-XXXXXXXXX
(If you require detailed certification numbers, please contact our Sales Team: [email protected])

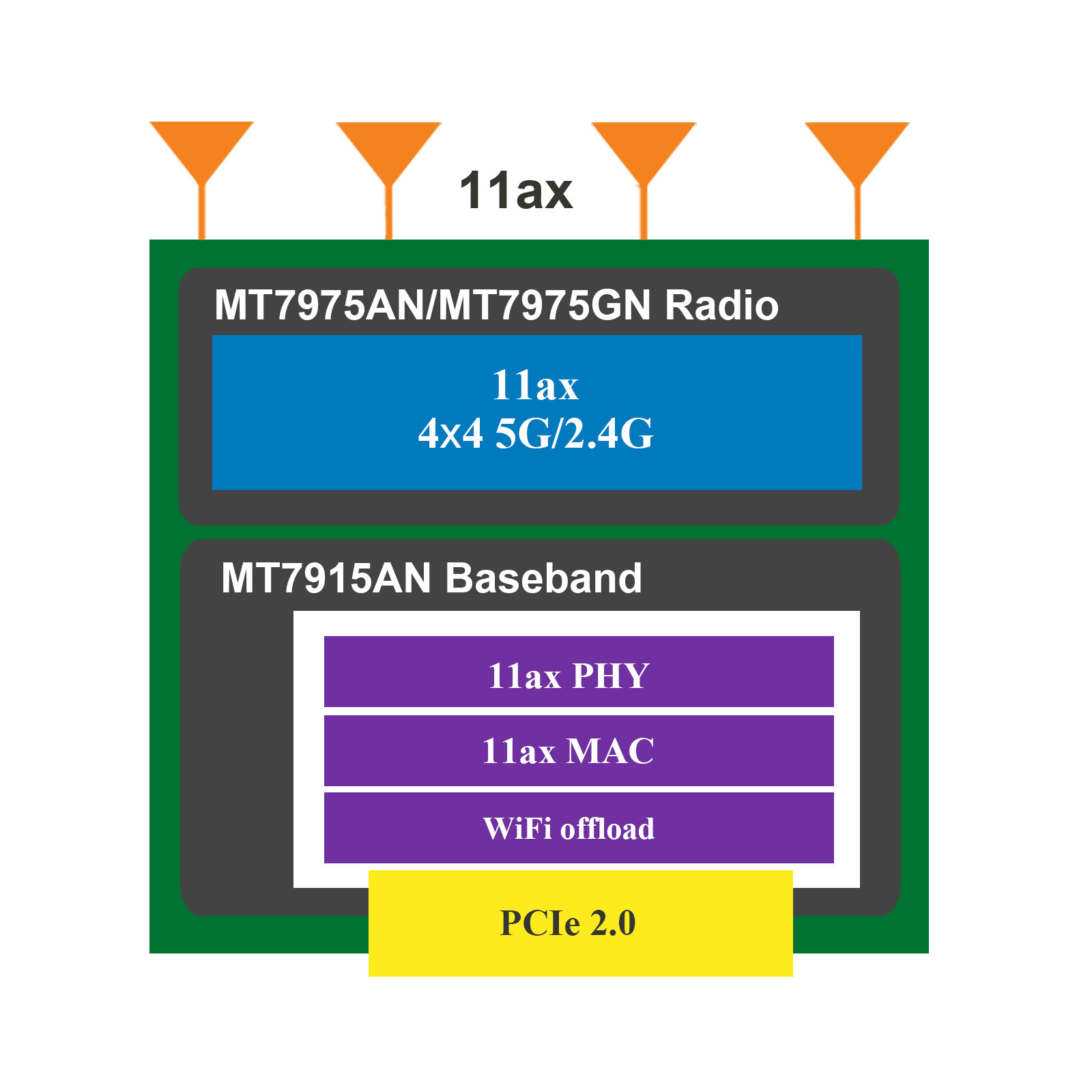

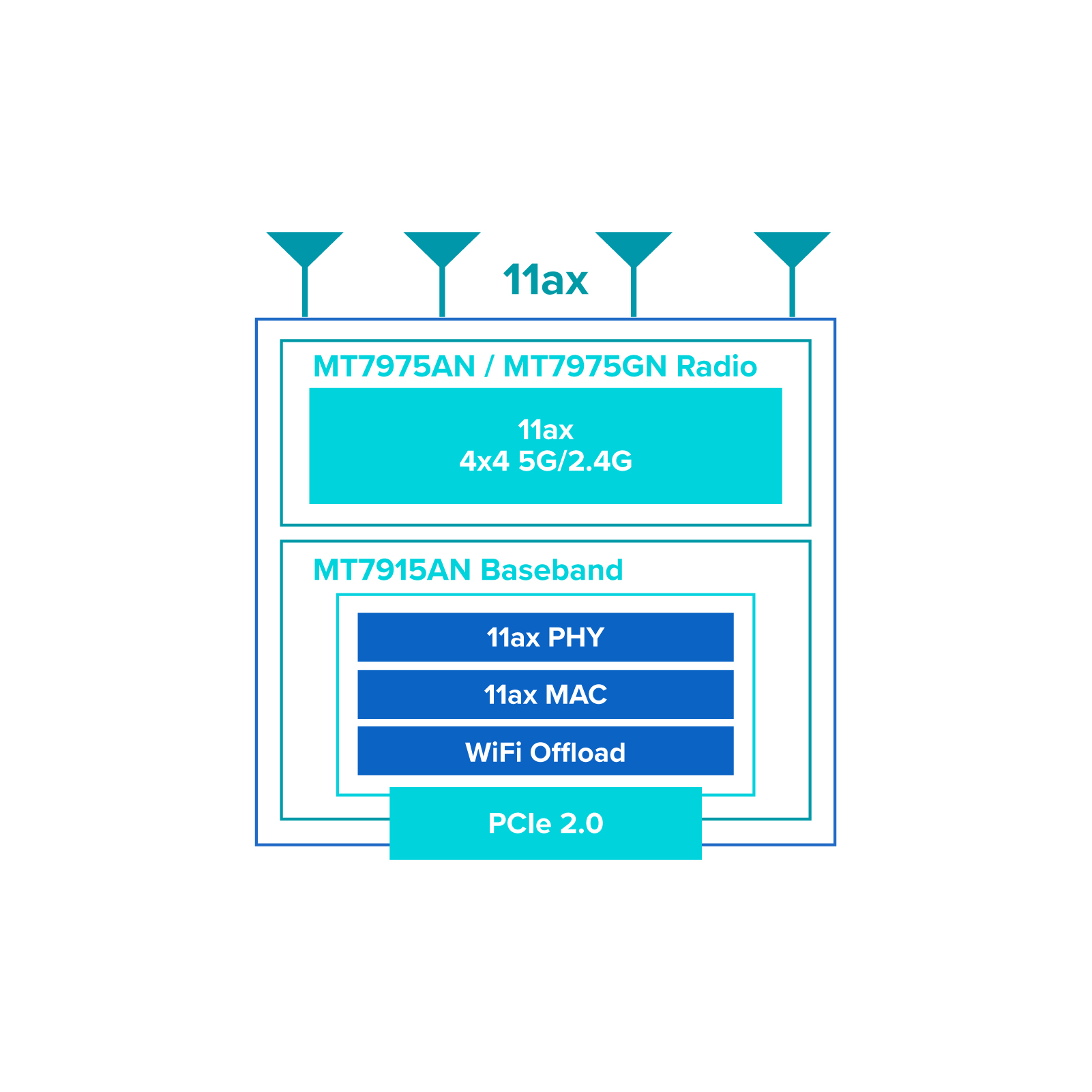

The AW7915-NP1 is a mini PCIe Module from MT7915, and it’s all about supercharged Wi-Fi. It’s like having a speed demon in your device, with Wi-Fi 6 (that’s the fancy 11ax) support, boasting 4T4R for a blazing 2401Mbps speed. What’s cool is that it plays nice with all the Wi-Fi standards you’ve ever heard of, like 802.11ax/ac and the older ac/a/b/g/n. It’s your ticket to rock-solid wireless connections that won’t drain your battery. This module has some high-tech tricks up its sleeve. It’s got smart RF architecture, a clever MAC design, and PCIe interfaces built in to keep your bandwidth stable.
Key capabilities and benefits
- The operation of Wi-Fi 6E in the 6 GHz spectrum offers extremely wide 160 MHz channels and additional capacity, leading to enhanced network performance.
- Orthogonal frequency division multiple access (OFDMA) more efficiently allocates channels, thereby increasing network efficiency and reducing latency for both uplink and downlink traffic in high-demand environments.
- Multi-user multiple input, multiple output (MU-MIMO) allows more uplink and downlink data to be transferred at once and enables an access point to handle a larger number of concurrent clients.
- The ability to utilize a 160 MHz channel increases bandwidth, resulting in enhanced performance with minimal latency.
- 1024 quadrature amplitude modulation mode (1024-QAM) enables throughput increases by encoding more data in the same amount of spectrum.
- Transmit beamforming enhances signal power, leading to significantly higher data rates within a specified range.
Wi-Fi generation comparison overview
| Feature | Wi-Fi 4 | Wi-Fi 5 | Wi-Fi 6 |
| Channel bandwidth (MHz) | 20, 40 | 20, 40, 80, 80 + 80, 160 | 20, 40, 80, 80 + 80, 160 |
| Frequency bands | 2.4 and 5 GHz | 5 GHz | 2.4,5, and 6 GHz |
| Maximum data rate | 150 Mbps | 3.5 Gbps* | 9.6 Gbps* |
| Highest subcarrier modulation | 64-QAM | 256-QAM | 1024-QAM |
| Spatial streams | 1 | 4 | 8 |
| Underlying technology | IEEE 802.11n | IEEE 802.11ac | IEEE 802.11ax |
* Depending upon number of spatial streams and channel used
Product features:
- Diversified Module Specifications: We offer a variety of Wi-Fi modules from basic to high-end, standard to custom sizes, and low-power to high-performance.
- Cross-Industry Applications: Suitable for various industries such as manufacturing, retail, energy, agriculture, etc.
- Quality First: All products undergo stringent quality control and testing.
- Professional Technical Support: Our professional team is always available to provide technical assistance.
- Limited-Time Promotions: We regularly hold promotional activities, allowing you to purchase products at a discount or receive additional rewards.
- We firmly believe that our strategic partnerships with leading chip companies such as Morse Micro and MediaTek will further enhance our product supply and access to cutting-edge technology.
Why AsiaRF
- Flexible Product Portfolio
From low-power to high-performance modules, with standard and custom form factors—built to match diverse project requirements. - Proven Across Industries
Deployed in manufacturing, retail, energy, and smart agriculture, enabling reliable connectivity in real-world applications. - Quality You Can Trust
Every product undergoes rigorous validation and testing to ensure consistent performance and long-term reliability. - Engineering-Level Support
Our technical team provides responsive, end-to-end support—from design-in to deployment. - Optimized Cost Efficiency
Streamlined solutions and periodic promotions help reduce total cost of ownership without compromising performance.
Backed by strategic partnerships with leading chipset providers like MediaTek and Morse Micro, AsiaRF delivers future-ready wireless solutions with strong supply continuity and access to next-generation technologies.
About AsiaRF : Global Leader in Wi-Fi HaLow, Wi-Fi 7, and IoT Solutions : https://asiarf.com/about-asiarf/
Learn more on our blog : https://asiarf.com/category/blog/Setting New Standards for Sub-GHz Communication!
Or follow us on Linkedin : https://www.linkedin.com/company/asiarf/posts/?feedView=all
Features
Platform :
– 32-bit RISC MCU for Wi-Fi
– PCIe device fully compliant to PCIe v2.1 specification
WLAN :
– IEEE 802.11 a/b/g/n/ac/ax compliant
– Support 20/40M bandwidth in 2.4G band and
20/40/80M/80+80M bandwidth in 5G band
– Dual-band 4T4R mode with support of up to 2401Mbps PHY rate
– Support MU-MIMO TX/RX
– Support MU-OFDMA TX/RX
– Support STBC, LDPC, TX Beamformer and RX Beamformee
– Greenfield, mixed mode, legacy modes support
– Security support for WFA WPA/WPA2/WPA3 personal, WPS2.0, WAPI
– QoS support of WFA WMM, WMM PS
– Integrated LNA, PA, and T/R switch
Wi-Fi MAC :
– Support all date rates of 802.11a/g including 6, 9, 12, 18, 24, 36, 48, and 54Mbps
– Support short GI and all data rates of 802.11n including MCS0 to MCS7
– Support 802.11ac MCS0 to MCS9
– Support 802.11ax MCS0 to MCS11
– AMPDU/AMSDU RX (de-aggregation) and TX (aggregation) support
– TX beamformer and RX beamformee
WLAN Baseband :
DFS radar detection
WLAN Baseband :
Configurable Wi-Fi 2.4/5GHz PA for higher efficiency in low-power applications.
Standard

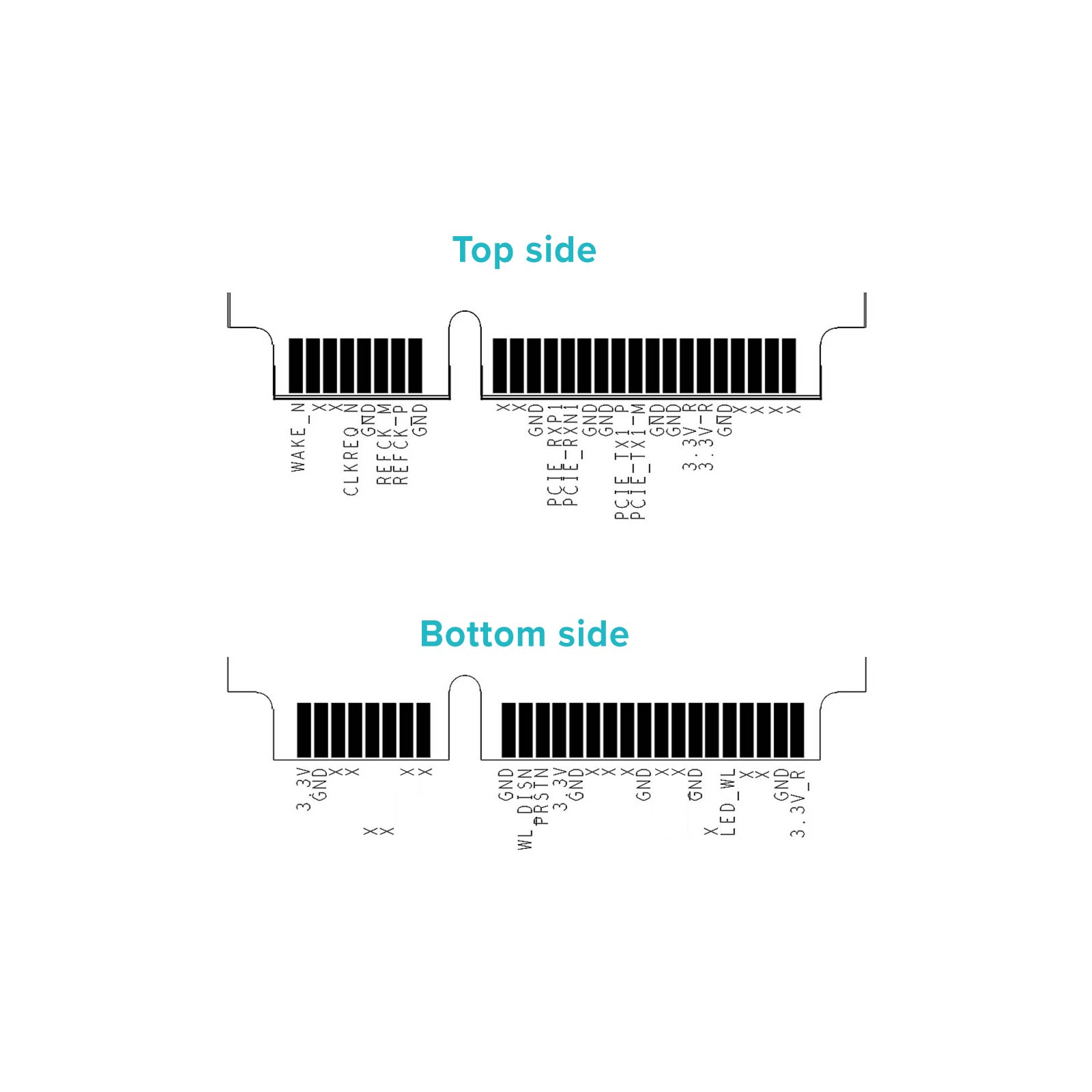

| Standards | Wireless: IEEE 802.11a/b/g/n/ac/ax (4Tx4R) |
| BUS Interface | Mini PCIe |
| Data Rate | IEEE802.11ax 2401Mbps @TX/RX IEEE802.11ac 1733Mbps @TX/RX IEEE802.11a/n 600Mbps @TX/RX IEEE802.11a/g 108Mbps IEEE802.11b 22Mbps |
| Output Power | 11b: 23dbm+/- 1.5dbm @11Mbps 11g: 20dbm+/- 1.5dbm @54Mbps 11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 17dBm@MCS7,HT40 11a: 19.5dBm +/- 1.5dbm @54Mbps 11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20+/-1.5dBm @MCS8 11ac HT40: 17+/-1.5dBm @MCS9 11ac HT80: 14.5+/-1.5dBm @MCS9 11ax HT20: 20+/-1.5dBm @MCS9 11ax HT40: 17 +/- 1.5dBm @MCS9 11ax HT80: 14.5 +/- 1.5dBm @MCS11 |
| Certification | CE FCC ID: TKZAW7915NP1 IC ID: 9968A-AW7915NP1 |
| Receiver Sensitivity | 11b: -99dBm @11Mbps 11g: -95dBm @54Mbps 11g/n: -90dBm @HT20, MCS7 -86dBm @HT40, MCS7 11a: -90Bm @54Mbps 11a/n: -85dBm @HT20, MCS7 -81dBm @HT40, MCS7 11ac: -90dBm +/- 2dBm @VHT20 MCS8 11ac: -85dBm +/- 2dBm @VHT40 MCS9 11ac: -68dBm +/- 2dBm @VHT80 MCS9 11ax: -61dBm +/- 2dBm @HE20 MCS11 11ax: -58dBm +/- 2dBm @HE40 MCS11 11ax: -55dBm +/- 2dBm @HE80 MCS11 |
| Antenna | External Antenna connector (IPEX) x4 |
| Frequency Range | US, Canada 2.412GHz~2.462 GHz (CH1~CH11) EU, Japan: 2.412GHz~2.472GHz (CH1~CH13) 5.15GHz ~5.875GHz |
| Software | Security: 64/128-bit WEP Encryption, WPA, WPA2 Driver: Linux |
| Operating Voltage | DC 3.3V ± 5% |
| Temperature | Operating: -10°C ~ +70°C Storage : -20°C ~ +90°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |

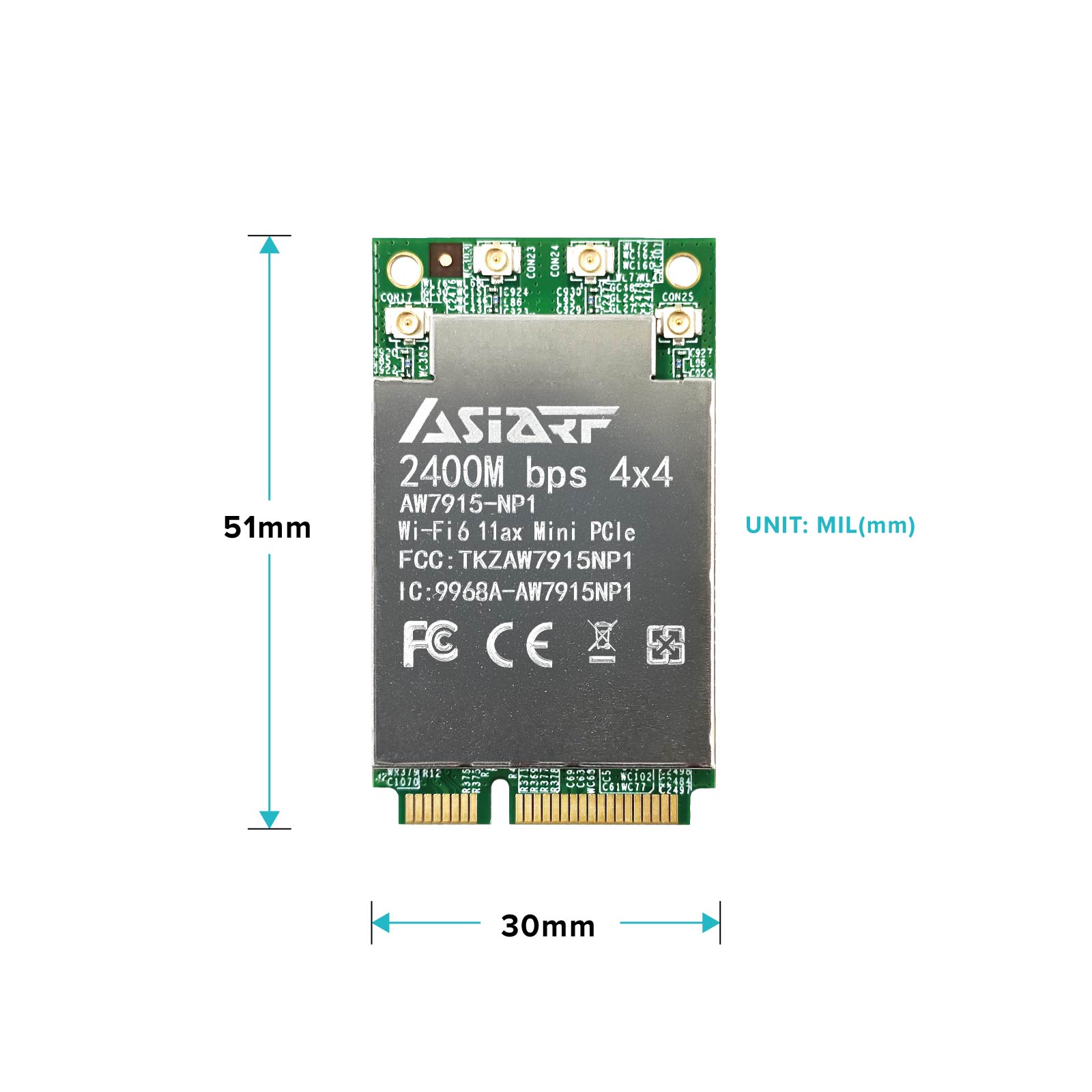

| Dimension | 50.95(H) x 30(W)mm |
| Weight | 0.0125 kg |
Power consumption maximum is 9W, average is 4 – 8W.
Main board Power Supply design please provide 3.3V 3A, minimum 3.3V 2.5A.
Additional information
| Weight | 0.0185 kg |
|---|---|
| Dimensions | 9.5 × 6.5 × 1.5 cm |
