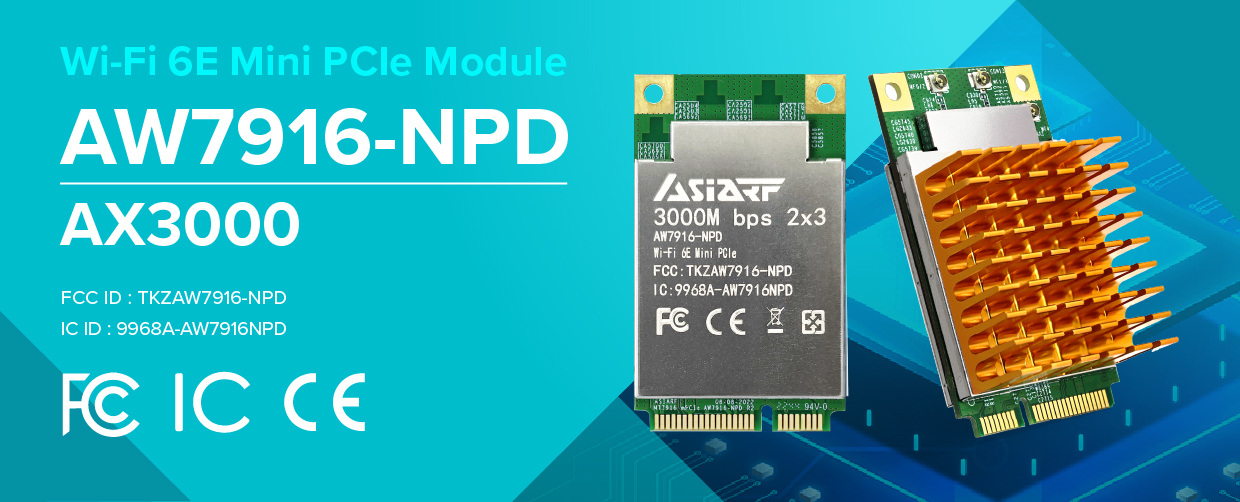

Wi-Fi 6E AX3000 Mini PCIe Module AW7916-NPD
Original price was: $80.00.$38.00Current price is: $38.00.
The Wi-Fi 6E AX3000 Mini PCIe Module AW7916-NPD supports Wi-Fi 6E 3000 and DBDC. It is powered by the Mediatek MT7916AN chipset, offering high performance.
AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module, powered by Mediatek MT7916AN chipset – 802.11ax 3000 G-band 2T2R and A-band 3T3R 2ss Dual Bands Dual Concurrents
Certification
FCC ID: TKZXXXXXX-XXX; IC ID: 996XX-XXXXXXXX, CE (If you require detailed certification numbers, please contact our Sales Team: [email protected])
The state-of-the-art Mini PCIe Module AW7916-NPD has already obtained FCC certification for 2.4GHz, 5GHz, and 6GHz frequencies. As promised, we provide high-quality Wi-Fi modules coupled with comprehensive end-to-end services. This ensures that you save significant time and money on certifications.
The AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module is like a turbocharger for your Wi-Fi setup. It supports the super-fast Wi-Fi 6E 3000 and can handle three bands at once and DBDC. It’s powered by the powerful Mediatek MT7916AN chipset, so you know it means business. With blazing-fast speeds of up to 3Gbps, this module takes your wireless connectivity to a whole new level. It’s got your back whether you’re on the 5GHz or 6GHz band with a whopping 160MHz of bandwidth, and it even handles the 2.4GHz band with 40MHz. Plus, there’s an extra antenna to make sure your download speeds are top-notch.
Specification Comparison Chart : Best-Selling Wi-Fi Module
Introducing the AW7916-NPD AX3000, Powered by MediaTek’s World-Class MT7916 Chipset, AsiaRF’s state-of-the-art AX3000 Mini PCIe Wi-Fi 6E module, designed to redefine your wireless network experience. Engineered with cutting-edge G-band 2T2R + A-band 3T3R 2ss dual-band dual-concurrent (DBDC) technology, this module offers a staggering transmission rate of up to 3000 Mbps. Its robust support for Wi-Fi 6E ensures seamless network performance—even in high-traffic areas—making it ideal for accommodating a larger user base without sacrificing speed or efficiency.
Wi-Fi 6E AX3000 module AW7916-NPD Mesh+Security
A mesh system can provide offices and enterprises with a more reliable network connection, covering a wide area, and allowing numerous devices to connect to the network, offering better performance in densely populated device areas. Even as users move to different areas, their devices can smoothly switch to the strongest Wi-Fi access point without the need for manual reconnection or experiencing disconnection.
The Wi-Fi 6E AX3000 Module AW7916-NPD adopts the latest WPA3 security protocol, safeguarding users from unauthorized access and data breaches, addressing security threats in modern wireless networks.
Accurate and fast remote operation
Compared to the past, Wi-Fi 6E enables remote operations with higher precision. This advancement is expected to drive the progress of remote medical services and open up possibilities for practical applications of remote surgeries in the medical field. With Wi-Fi 6E, healthcare professionals can perform surgeries with greater precision and less invasiveness, marking a significant breakthrough in the field of medical services. Additionally, in manufacturing and logistics, technologies such as robotic arms and drones can execute tasks more swiftly and accurately, reducing the likelihood of errors. This technology also fosters progress in smart and automated systems, bringing forth more innovations and efficiency for businesses.
Applications:
🌐 Applications in Real-World Scenarios:
Wi-Fi 6E isn’t merely an incremental update; it’s a leap forward that is set to revolutionize sectors like healthcare, manufacturing, and logistics.
🏥 Healthcare:
The increased precision afforded by Wi-Fi 6E is poised to be a game-changer for remote medical services, paving the way for groundbreaking applications such as remote surgeries. Health professionals can now execute procedures with unprecedented accuracy, reducing invasiveness and enhancing patient outcomes.
🏭 Manufacturing & Logistics:
In industrial settings, the AW7916-NPD’s rapid and precise remote operation capabilities facilitate smarter, more efficient workflows. From robotic arms to drones, tasks are executed swiftly and accurately, thereby minimizing the margin for error.
🌆 Smart Systems:
This technology is also a catalyst for innovations in smart and automated systems, empowering businesses to operate with greater efficiency and agility.
Wi-Fi 6E is driving several world trends and technological advancements
At the end of 2022, the University of Michigan in the United States underwent a revolutionary change by deploying over 16,000 Wi-Fi access points across 225 buildings and outdoor areas on campus. This remarkable achievement allowed the university to support up to 70,000 device connections simultaneously. Through this extensive Wi-Fi infrastructure, the University of Michigan can meet the growing data demands, enhance teaching and campus management efficiency, and foster the application and development of smart devices on campus. This will have a positive impact on various aspects of academic research, student learning, and campus life.
Wi-Fi 6E is a significant trend in the current wireless network market. With continuous technological advancements and increasing data demands, Wi-Fi 6E has become the representation of the next-generation wireless network technology and is gaining widespread attention and adoption in the market.
Learn more on our blog : 🚀 Elevate Your Enterprise Network with AsiaRF’s Cutting-Edge Wi-Fi 6E Module!
Or follow us on Linkedin : Why use Wi-Fi 6E? What are the benefits of Wi-Fi 6E products?
- IEEE Standard: 802.11 a/b/g/n/ac/ax compliant
- Bandwidth : Support 20/40MHz bandwidth in G-band, and 20/40/80/160MHz bandwidth in A-band

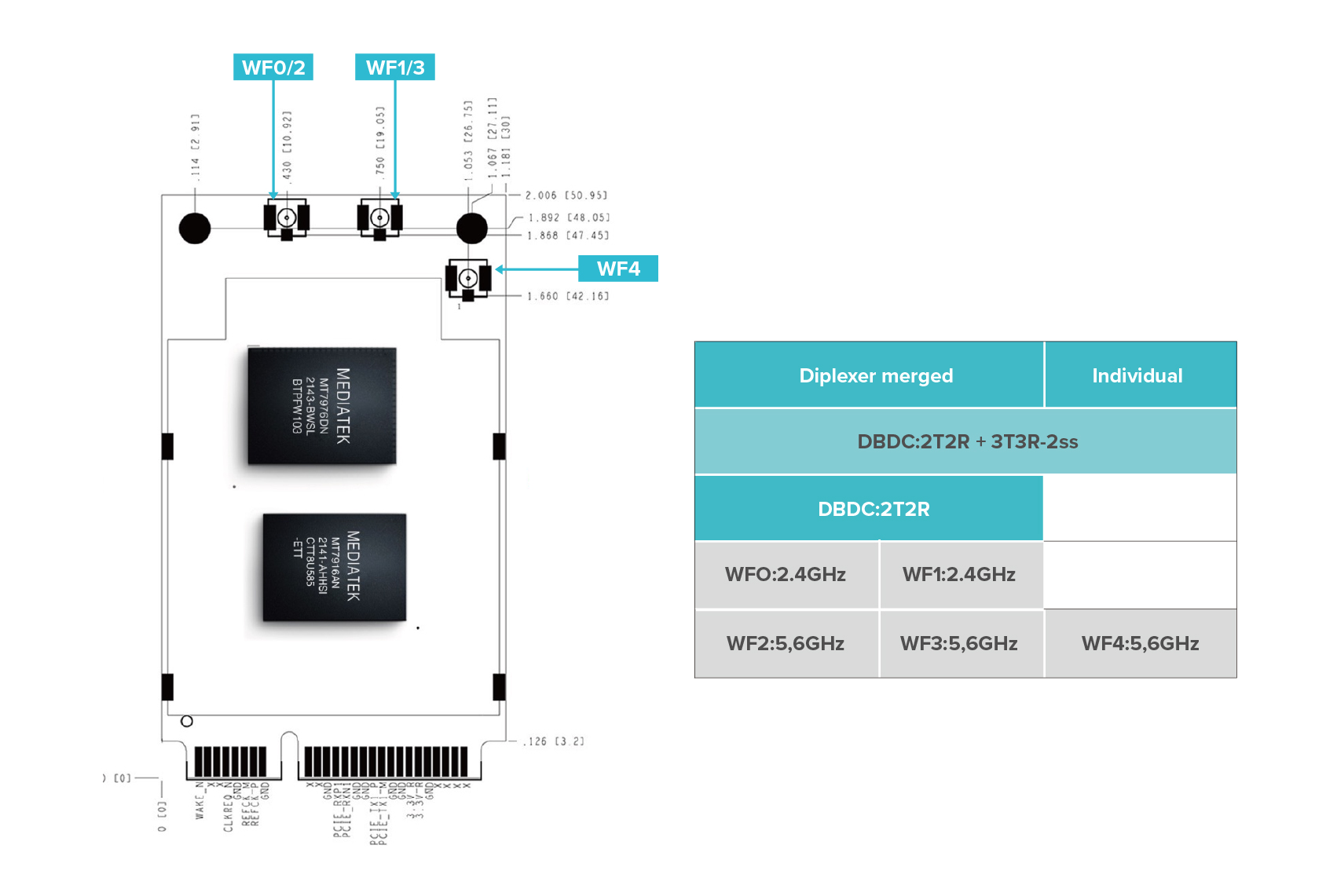

- PHY rate: G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps
- Support MU-MIMO TX/RX
- Support MU-OFDMA TX/RX
- Support STBC, LDPC, TX Beamformer and RX Beamformer
- Modes: greenfield, mixed mode, legacy modes
- Security: WFA WPA/WPA2/WPA3 personal, WPS2.0
- Intelligent power saving: QoS support of WFA WMM, WMM PS
- 32-bit RISC MCU for Wi-Fi protocols and Wi-Fi offload
- Data Storage: Embedded SRAM/ROM
- UART interface with hardware flow control
- Programmable and multiplexed GPIO pins
- Fully adherent: PCIe device fully compliant to PCIe v2.1 specification
- Integrate 4Kbit efuse to store device specific information and calibration data
Package with Heatsink 30x30x10mm Aluminum material
Power consumption maximum is 8W, average is 5W.
Main board Power Supply design please provide 3.3V 3.5A, minimum 3.3V 3A.
Weight | 0.028 kg |
---|---|
Dimensions | 9.5 × 6.5 × 3 cm |
