Wi-Fi HaLow Sub-GHz Module Powered by Morse Micro® MM6108 RF SOC, ideal for IoT with low power and long-range capabilities.
FCC ID: TKZXXXXXXXXX ; IC : 9968A-MMXXXXXX ; NCC : CCAF23XXXXXXXX; TELEC : 217-XXXXXX , CE , RCM (If you require detailed certification numbers, please contact our Sales Team:firstname.lastname@example.org)
The state-of-the-art HaLow Module MM610X-001 has already obtained FCC certification. As promised, we provide high-quality Wi-Fi modules coupled with comprehensive end-to-end services. This ensures that you save significant time and money on certifications.
The MM610X-001 is basically a supercharged Wi-Fi module designed for IoT (Internet of Things) applications. It’s powered by the advanced Morse Micro® MM6108 RF SOC. What’s really neat about it is that it operates at a frequency below 1 gigahertz (GHz), which gives it a longer range and consumes less power. It’s like the long-distance champion of Wi-Fi, following the special HaLow version of the IEEE 802.11 standard. This module isn’t just any ordinary device; it’s certified by the Wi-Fi Alliance as Wi-Fi CERTIFIED HaLow™ and meets the 802.11ah specification. It’s got impressive RF capabilities, like excellent sensitivity, selectivity, and blocking performance. Plus, there’s a U.FL connector that lets you hook up an external Sub-GHz antenna for even better reception.
MM610X-001 Wi-Fi HaLow Sub-GHz Wireless Module
In terms of connecting to other stuff, it’s quite versatile. You can use various IO interfaces, including UART, SDIO, SPI, I2C, and GPIOs for functions like PWM and switches. It’s ready to communicate over a whopping 2 kilometers in a direct line of sight, which is pretty amazing. So, whether you’re setting it up indoors or outdoors for your IoT projects, it’s up to the task. But here’s the kicker: it can handle a lot of data. You’re looking at a throughput of 20Mbps using UDP, which is quite impressive for long-range wireless IoT. And its physical layer (PHY) data rate is 32.5Mbps. And just to put your mind at ease, it’s been certified by regulatory authorities like the FCC, IC, CE, TELEC, NCC, and RCM, so you know it’s the real deal. In a nutshell, the MM610X-001 module offers dependable and long-range connectivity for all your IoT needs. It’s got top-notch RF capabilities, flexible IO interfaces, and impressive data handling capabilities.
Achieves maximum transmission rate of 32.5 Mbps and enables communication up to 1 kilometer, a 10-fold increase over traditional Wi-Fi connections.
Enabling 32.5 Mbps transmission and communication up to 1 km, it offers a 10x boost over traditional Wi-Fi.
Designed based on Morse Micro® MM6108 RF SOC.
Smart PMU, low-power design, 5+ year lifespan.
Integrates WPA3 and OWE for strong security.
Stable RF connections with exceptional performance.
Versatile interfaces: UART, SDIO, SPI, I2C for diverse applications.
AES encryption engine, hardware hash functions for strong data security.
11ah OFDM PHY supporting future WFA HaLow certiﬁcation
BPSK & QPSK, 16-QAM & 64-QAM Modulation
Automatic frequency & gain control
Packet detect & channel equalization
Forward Error Correction (FEC) coding & decoding
Supports Modulation and Coding Scheme (MCS) levels MCS 0-7 and MCS 10
Supports 1 MHz duplicate mode
Supports optional Traveling Pilot
11ah MAC supporting future WFA HaLow certiﬁcation
Support for STA and AP roles
Listen-Before-Talk (LBT) access with energy detect
11 power save
11 fragmentation and defragmentation
Power-Saving Target Wake Time (TWT) support for long battery life
Automatic and manual MCS rate selection
Single-stream max data rate of 32.5 Mbps (MCS=7, 64-QAM, 8MHz channel, 4 uSec GI)
Radio supporting worldwide Sub-1 GHz frequency bands
Frequency Range: 850-950 MHz
Channel width options of 1/2/4/8 MHz
0-3.6V for VBATT and VDDFEM. 1.8-3.6V for VDDIO
-40 to +85°C

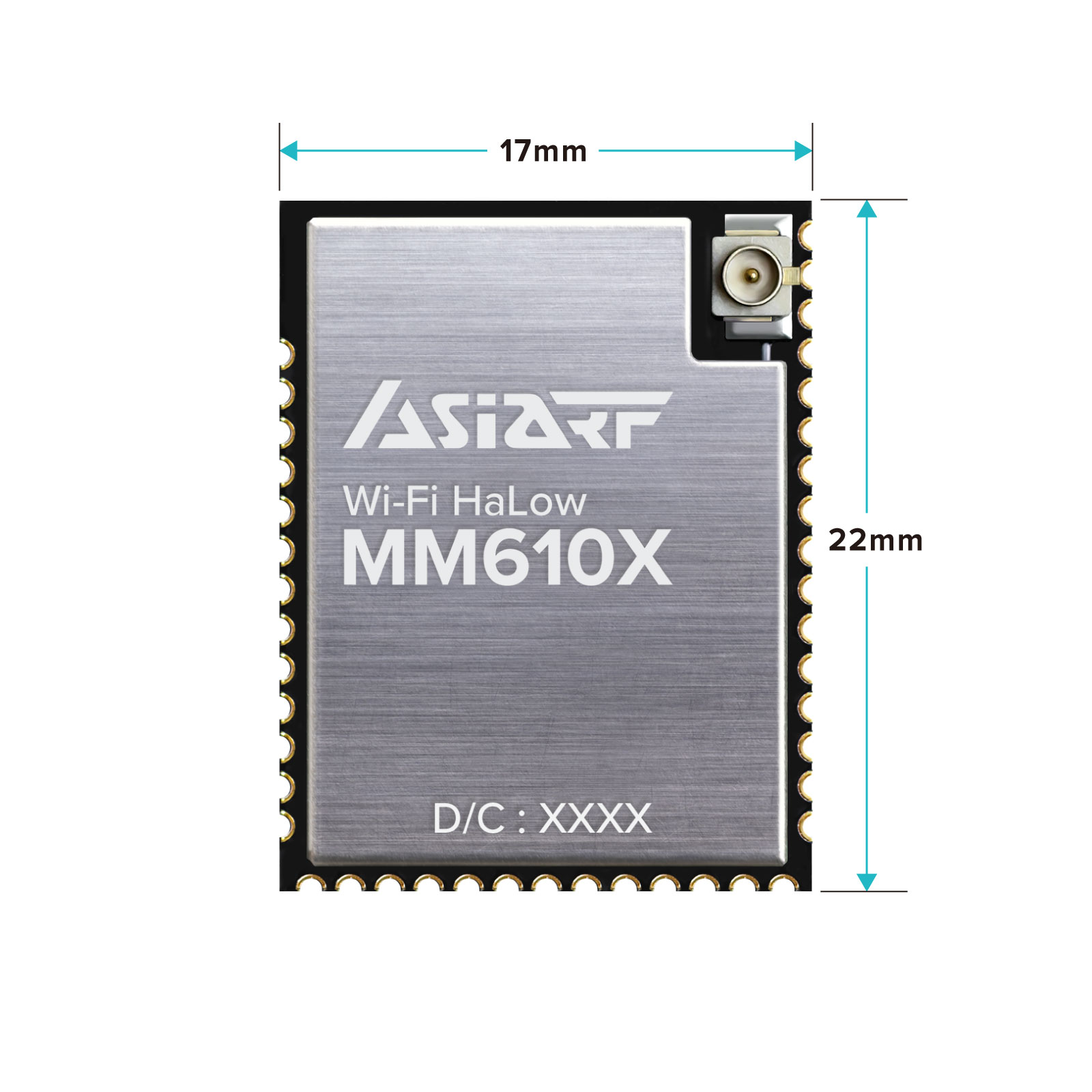

22 mm x 17.0 mm x 2.0 mm (module)
AES encryption engine
Hardware support for SHA1 and SHA2 hash functions (SHA-256, SHA-384, SHA-512)
WPA3 including protected management frames (PMF)
Opportunistic Wireless Encryption (OWE)
12-bit 1 Msps SAR ADC
12 × GPIO
3 × UART, 1 x SPI, 1 x I2C
2 × 16-bit Timer/Counter
1 × 32-bit Timer/Counter
32-bit Real Time Counter
24-bit Low Energy Timer for waveform generation
2 × Watchdog Timer
Power Management Unit for power state switching
SDIO 2.0 compliant slave interface
SDIO 2.0 Default Speed (DS) at 25MHz
SDIO 2.0 High Speed (HS) at 50MHz
Support for both 1-bit and 4-bit data mode
Support for SPI mode operation

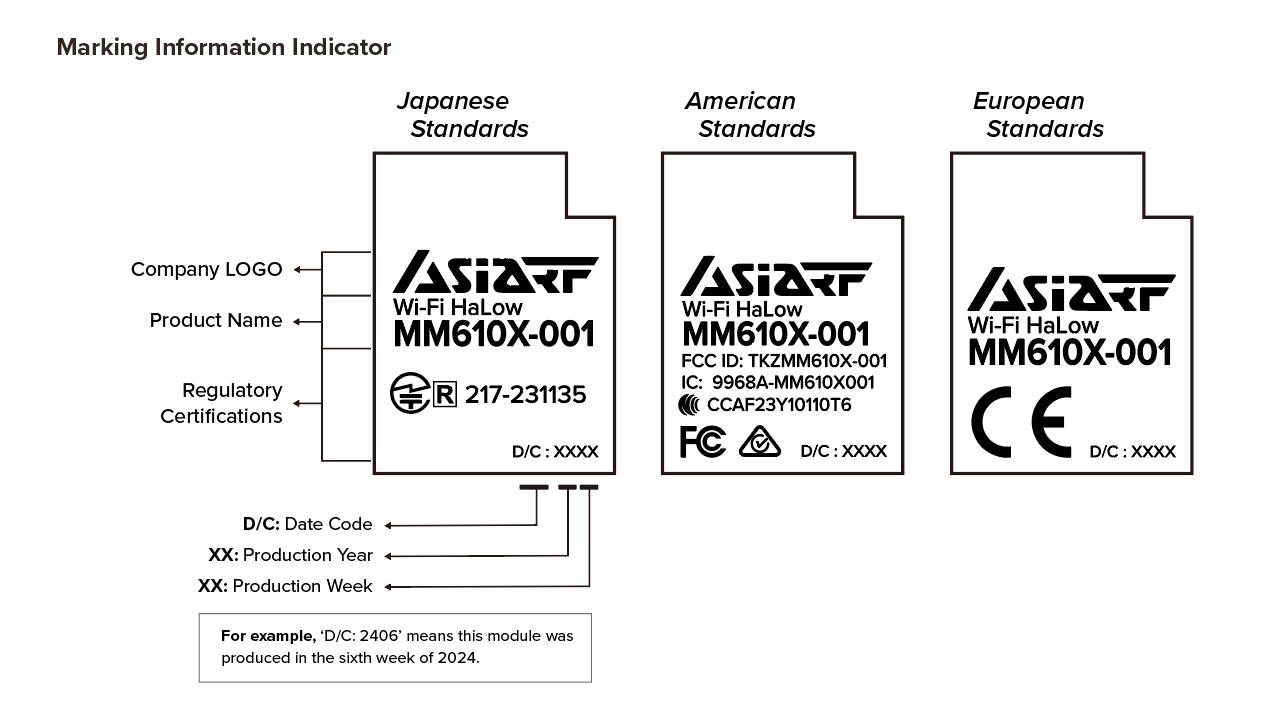

FCC ID TKZMM610X-001
IC ID 9968A-MM610X001
RCM(for AU NZ)
NCC ID CCAF23Y10110T6
TELEC ID 217-231135
