AW7915-BMD Wi-Fi 6 11ax M.2 BM Key Module

Original price was: $75.00.Current price is: $28.00.

AW7915-BMD is a Wi-Fi 6 M.2 Module BM Key by MT7915DAN, offering reliable wireless connectivity with a PHY rate of 1800Mbps. It complies with IEEE 802.11ax/ac and IEEE 802.11 ac/a/b/g/n standards.

AW7915-BMD is a Wi-Fi 6 M.2 Module BM Key by MT7915DAN, offering reliable wireless connectivity with a PHY rate of 1800Mbps. It complies with IEEE 802.11ax/ac and IEEE 802.11 ac/a/b/g/n standards.
This item: AW7915-BMD Wi-Fi 6 11ax M.2 BM Key Module
Original price was: $75.00.Current price is: $28.00.
Original price was: $75.00.Current price is: $28.00.
OTHER00050057004 HeatSink 30x30x4mm Aluminum material
$0.45 - $0.49
Quantity Discount (%) Price
1 - 99 62.67 % $28.00
100+ 68 % $24.00
x

AW7915-BMD: Reliable Wi-Fi 6 M.2 BM Key Module with 1800Mbps PHY Rate  – 2T2R Dual Bands Dual Concurrents DBDC  IEEE802.11ax by Mediatek  MT7915DAN

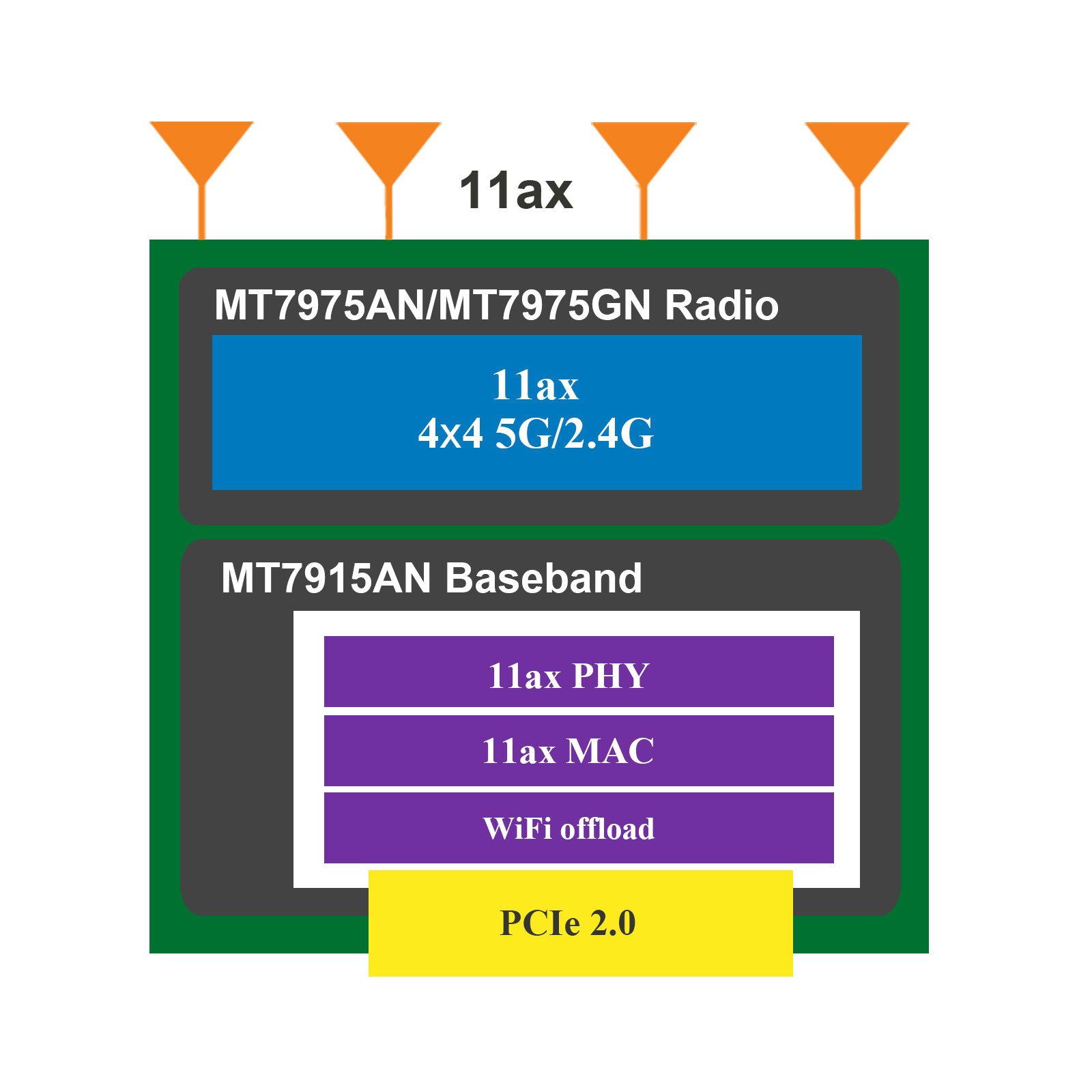

Introducing the AW7915-BMD, a Wi-Fi 6 M.2 Module with BM Key, powered by the MT7915DAN chipset. It’s your ticket to rock-solid wireless connectivity with a speedy PHY rate of 1800Mbps. And guess what? It plays nicely with a bunch of IEEE standards, including 802.11ax/ac and even the older 802.11 ac/a/b/g/n ones. Now, let’s talk tech. This module is no slouch. It’s got some clever tricks up its sleeve. Thanks to its optimized RF architecture and smart MAC design, it performs like a champ while sipping power conservatively. Plus, it’s all about dual bands and dual concurrent operation, which means it can juggle two wireless tasks at once. When it’s time for a power nap, it’s got you covered too. It has multiple power domains and can go into a deep sleep mode to save those precious watts. Inside, you’ll find a 32-bit RISC MCU subsystem, clock control options, and PDMA engines to keep your data flowing efficiently. But here’s where it really shines. The MT7915DAN chipset inside combines the Wi-Fi MAC and BBP subsystems to deliver top-notch radio performance. It’s all about giving you the best possible connection. It even supports multi-user MIMO (MU-MIMO) for when you’ve got a crowd of devices. And don’t worry about your data’s speed – it’s got an integrated PCIe interface for a stable, high-speed link between your device and the module. In a nutshell, the AW7915-BMD is a high-performance Wi-Fi 6 module that’s all about advanced features, efficient power use, and keeping you connected to multiple devices.



The key features of Wi-Fi CERTIFIED 6 work together to ensure that each device on the network is able to function at an optimum level, including legacy devices.

Key capabilities and benefits

  • The operation of Wi-Fi 6E in the 6 GHz spectrum offers extremely wide 160 MHz channels and additional capacity, leading to enhanced network performance.
  • Orthogonal frequency division multiple access (OFDMA) more efficiently allocates channels, thereby increasing network efficiency and reducing latency for both uplink and downlink traffic in high-demand environments.
  • Multi-user multiple input, multiple output (MU-MIMO) allows more uplink and downlink data to be transferred at once and enables an access point to handle a larger number of concurrent clients
  • The ability to utilize a 160 MHz channel increases bandwidth, resulting in enhanced performance with minimal latency.


  • 1024 quadrature amplitude modulation mode (1024-QAM) enables throughput increases by encoding more data in the same amount of spectrum.
  • Transmit beamforming enhances signal power, leading to significantly higher data rates within a specified range.



Wi-Fi_CERTIFIED_6_Feature_Spotlight_MU-MIMO
Wi-Fi_CERTIFIED_6_Feature_Spotlight_MU-MIMO
Wi-Fi_CERTIFIED_6_Feature-Spotlight_160_MHz_Channels
Wi-Fi_CERTIFIED_6_Feature-Spotlight_160_MHz_Channels
Wi-Fi_CERTIFIED_6_Feature_Spotlight_OFDMA
Wi-Fi_CERTIFIED_6_Feature_Spotlight_OFDMA



Wi-Fi generation comparison overview

Feature Wi-Fi 4 Wi-Fi 5  Wi-Fi 6
Channel bandwidth (MHz)  20, 40 20, 40, 80, 80 + 80, 160 20, 40, 80, 80 + 80, 160
Frequency bands 2.4 and 5 GHz 5 GHz 2.4,5, and 6 GHz
Maximum data rate  150 Mbps 3.5 Gbps* 9.6 Gbps*
Highest subcarrier modulation 64-QAM 256-QAM 1024-QAM
Spatial streams  1 4 8
Underlying technology  IEEE 802.11n IEEE 802.11ac IEEE 802.11ax

* Depending upon number of spatial streams and channel used





Specification Comparison Chart : Best-Selling Wi-Fi Module
Learn more on our blog: How to choose good performance Wi-Fi module for Robot?
Or follow us on Linkedin :  Why use Wi-Fi 6E? What are the benefits of Wi-Fi 6E products?

  • PHY rate: 2T2R in 2.4GHz+2T2R in 5GHz with support of up to 573+1201Mbps
  • Channels Bandwidth: Supports 20, 40, 80 channels
  • HE MCS0-11 BW20/40/80MHz with Nss=1~2
  • Short Guard Interval
  • Space-time block code (STBC)
  • Low Density Partiy check (LDPC)
  • Support digital pre-distortion to enhance PA performance
  • Smoothing (channel estimation) extension to MIMO case
  • DFS radar detection
  • Embedded ARM Cortex R4 processor for full host CPU offload
  • Mcroprocessor: Embedded 32-bit RISC
  • Support STBC, LDPC, TX Beamformer and RX Beamformee
  • Decoded BW20/40/80:  up to 4×2 MU materix feedback
  • Modes: Greenfield, mixed mode, legacy modes support
  • Highly integrated: RF with 40nm low power process
  • Noise mitigation:
    • Supports background scan function for fast channel switching
    • Supports spectrum analysis for non-Wi-Fi signals
  • Intelligent power saving:
    • WFA WMM, WMM PS (QoS)
  • Integrate high efficiency: internal 4G/5G PAs
  • Intelligent Calibration (iCal): reduces the production time
  • Integrate high efficiency:  internal 4G/5G PAs
Standards Wireless: IEEE 802.11ax/ac/b/g/n (2Tx2R)
Data Rate IEEE802.11ax 1201Mbps @TX/RX
IEEE802.11ac 1733Mbps @TX/RX
IEEE802.11a/n 600Mbps @TX/RX
IEEE802.11a/g 108Mbps
IEEE802.11b 22Mbps
Output Power 11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
17dBm@MCS7,HT40
11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9
11ax HT20: 20+/-1.5dBm @MCS9
11ax HT40: 17 +/- 1.5dBm @MCS9
11ax HT80: 14.5 +/- 1.5dBm @MCS11
Receiver Sensitivity 11b: -99dBm @11Mbps
11g: -95dBm @54Mbps
11g/n: -90dBm @HT20, MCS7
-86dBm @HT40, MCS7
11a: -90Bm @54Mbps
11a/n: -85dBm @HT20, MCS7
-81dBm @HT40, MCS7
11ac: -90dBm +/- 2dBm @VHT20 MCS8
11ac: -85dBm +/- 2dBm @VHT40 MCS9
11ac: -68dBm +/- 2dBm @VHT80 MCS9
11ax: -61dBm +/- 2dBm @HE20 MCS11
11ax: -58dBm +/- 2dBm @HE40 MCS11
11ax: -55dBm +/- 2dBm @HE80 MCS11
Antenna External Antenna connector (IPEX) x2
Frequency  Range US, Canada 2.412GHz~2.462 GHz (CH1~CH11)
EU, Japan: 2.412GHz~2.472GHz (CH1~CH13)
5.15GHz ~5.875GHz
Software Security: 64/128-bit WEP Encryption, WPA, WPA2
Driver: Linux
Operating Voltage DC 3.3V ± 5%
Temperature Operating: 0°C ~ +70°C
Storage : -20°C ~ +90°C
Humidity Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~90% non-condensing
Dimension 50.95(H) x 30(W)mm



Power consumption maximum is 9W, average is 4 – 8W
Main board Power Supply design please provide 3.3V 3A, minimum 3.3V 2.5A.

Weight 0.0185 kg
Dimensions 9.5 × 6.5 × 1.5 cm
