Wi-Fi 6E Mini PCIe Module AW7916-NPD
$39.90
ASB916NPD0201043
The Wi-Fi 6E Mini PCIe Module AW7916-NPD supports WiFi6E 3000 and Tri-band/DBDC. It is powered by the Mediatek MT7916AN chipset, offering high performance.
Out of stock. Will be available on Nov. 10th.
Available on backorder

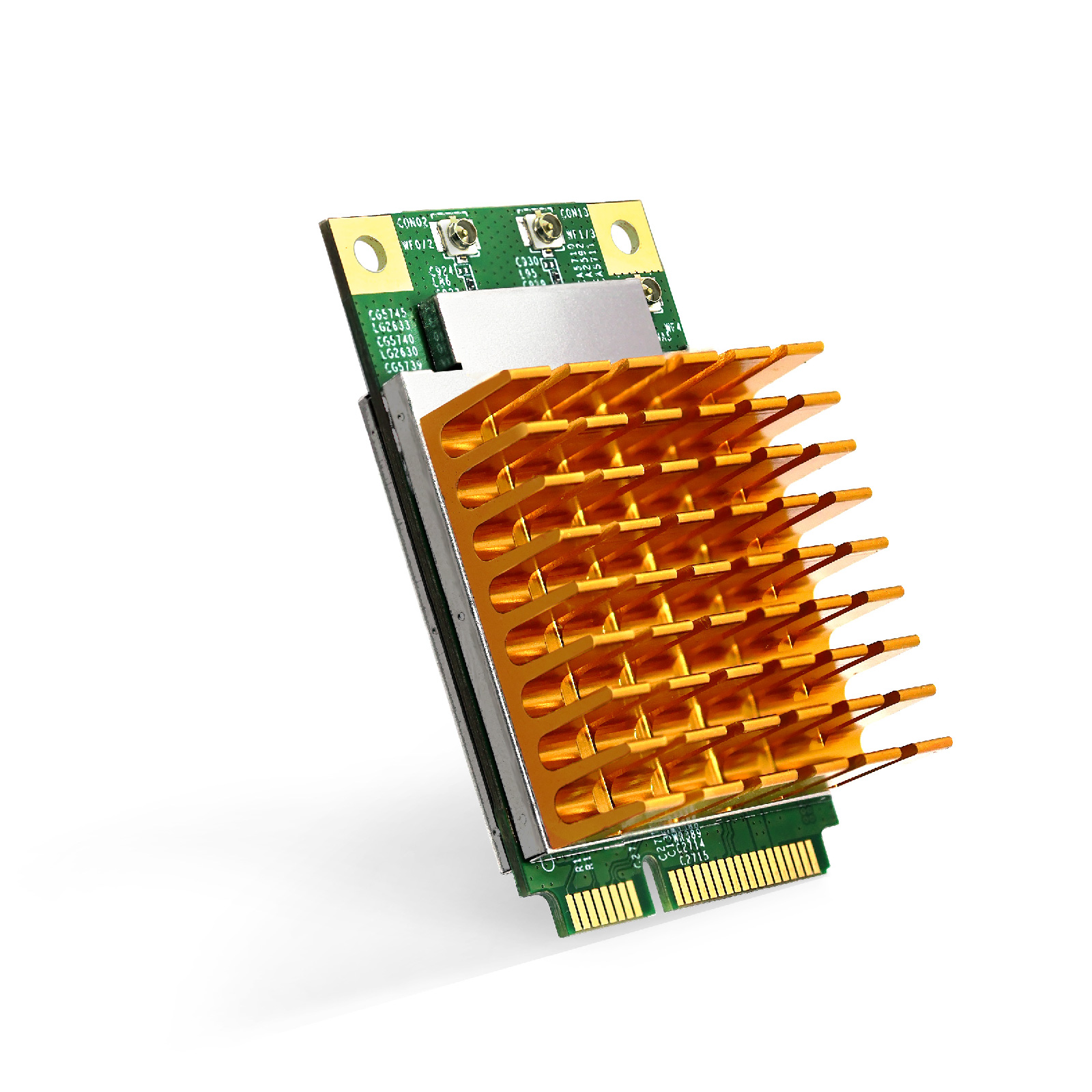

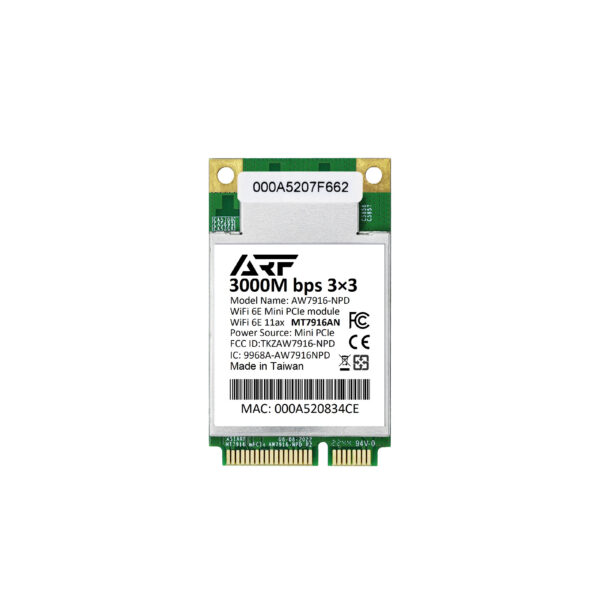

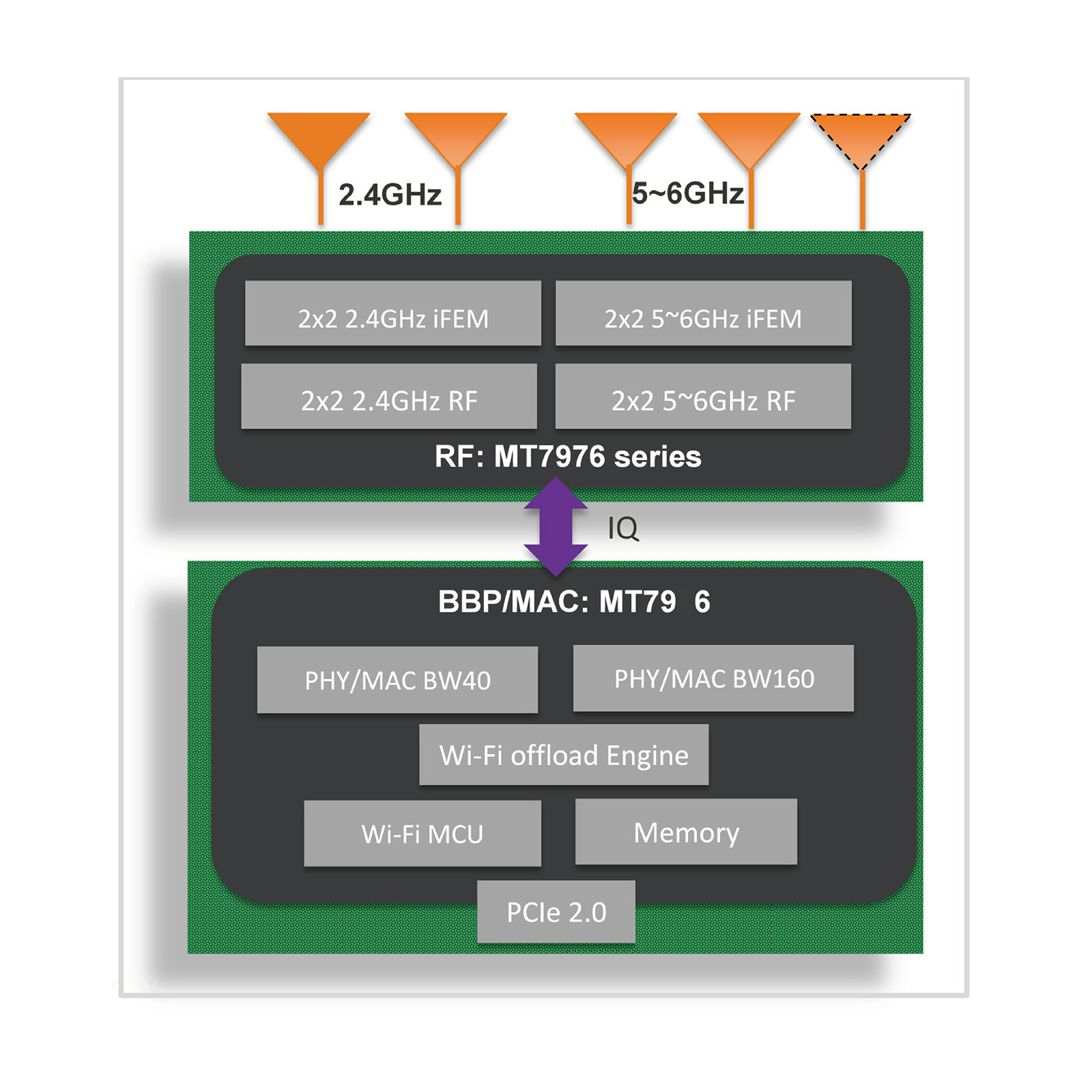

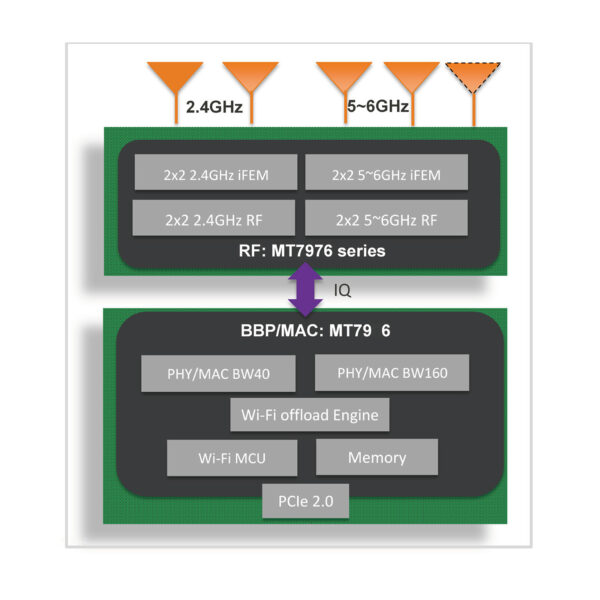

AW7916-NPD Wi-Fi 6E Mini PCIe Module, powered by Mediatek MT7916AN chipset
The AW7916-NPD Wi-Fi 6E Mini PCIe Module is like a turbocharger for your Wi-Fi setup. It supports the super-fast WiFi6E 3000 and can handle three bands at once and DBDC. It’s powered by the powerful Mediatek MT7916AN chipset, so you know it means business.
With blazing-fast speeds of up to 3Gbps, this module takes your wireless connectivity to a whole new level. It’s got your back whether you’re on the 5GHz or 6GHz band with a whopping 160MHz of bandwidth, and it even handles the 2.4GHz band with 40MHz. Plus, there’s an extra antenna to make sure your download speeds are top-notch.
This module can handle up to 24 users thanks to features like OFDMA and MU-MIMO, and it’s got a bunch of other technical stuff like 512 MAC entries and 16 MBSSID. It’s got all the cool features from Wi-Fi 6 Release 2.
And here’s the magic trick: it has a built-in Wi-Fi offload engine, which means it’s not only powerful but also energy-efficient. It’s like having a high-performance engine in a small package. Plus, it’s easy on your wallet, thanks to its integration with the Filogic 630 platform. If you’re looking for Tri-band Wi-Fi 6/6E solutions for routers and repeaters, you can even pair it up with the Filogic 830 SoC platform.
In a nutshell, the AW7916-NPD is like the superhero of Mini PCIe Modules. It’s super fast, super efficient, and super beneficial for both device makers and users.
- IEEE 802.11 a/b/g/n/ac/ax compliant
- Support 20/40MHz bandwidth in G-band, and 20/40/80/160MHz bandwidth in A-band
- G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps
- Support MU-MIMO TX/RX
- Support MU-OFDMA TX/RX
- Support STBC, LDPC, TX Beamformer and RX Beamformer
- Support greenfield, mixed mode, legacy modes
- Security support for WFA WPA/WPA2/WPA3 personal, WPS2.0
- QoS support of WFA WMM, WMM PS
- 32-bit RISC MCU for Wi-Fi protocols and Wi-Fi offload
- Embedded SRAM/ROM
- UART interface with hardware flow control
- Programmable and multiplexed GPIO pins
- PCIe device fully compliant to PCIe v2.1 specification
- Integrate 4Kbit efuse to store device specific information and calibration data
| Standards | Wireless: G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps |
| Data Rate | IEEE 802.11ax 3000Mbps@TX/RX |
| Output Power | 11b: 23dbm+/- 1.5dbm @ 11Mbps 11g: 21dbm+/- 1.5dbm @ 54Mbps 11g/n: 21dBm +/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE4011a: 20dBm +/- 1.5dbm @ 54Mbps 11a/n: 20dBm+/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE4011ac HE20: 20+/-1.5dBm@MCS8 11ac HE40: 17+/-1.5dBm@MCS9 11ac HE80: 14.5+/-1.5dBm@MCS911ax HE20: 20+/-1.5dBm@MCS911ax HE40: 17+/-1.5dBm@MCS911ax HE80: 13.5+/-1.5dBm@MCS1111ax HE160: 13.5+/-1.5dBm@MCS11 |
| Receiver Sensitivity | 11b: -99dBm@11Mbps 11g: -95dBm@54Mbps 11g/n: -90dBm@HT20,MCS7, -86dBm@HT40,MCS7 11a: -90Bm@54Mbps 11a/n: -85dBm@HT20,MCS7, -81dBm@HT40,MCS711ac: -90dBm+/-2dBm @VHT20 MCS8 11ac: -85dBm+/-2dBm @VHT40 MCS9 11ac: -68dBm+/-2dBm @VHT80 MCS911ax: -61dBm+/-2dBm @HE20 MCS11 11ax: -58dBm+/-2dBm @HE40 MCS11 11ax: -55dBm+/-2dBm @HE80 MCS11 |
| Certification | CE FCC ID: TKZAW7916-NPD IC ID: 9968A-W7916NPD |
| Antenna | External Antenna connector (IPEX) x3 |
| Frequency Range | US, Canada 2.4G Bands: 2.412GHz~2.462 GHz, 5G Bands:5.15GHz ~5.875GHz, 6G Bands: 5.925 ~ 7.125 GHz EU, Japan: 2.4G Bands: 2.412GHz~2.472GHz, 5G Bands:5.15GHz ~5.875GHz, 6G Bands: 5.925 ~ 7.125 GHz |
| Software | Security: 64/128-bit WEP Encryption, WPA, WPA2 Driver: Linux |
| Operating Voltage | DC 3.3V ± 5% |
| Temperature | Operating: 0°C ~ +70°C Storage : -20°C ~ +90°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |

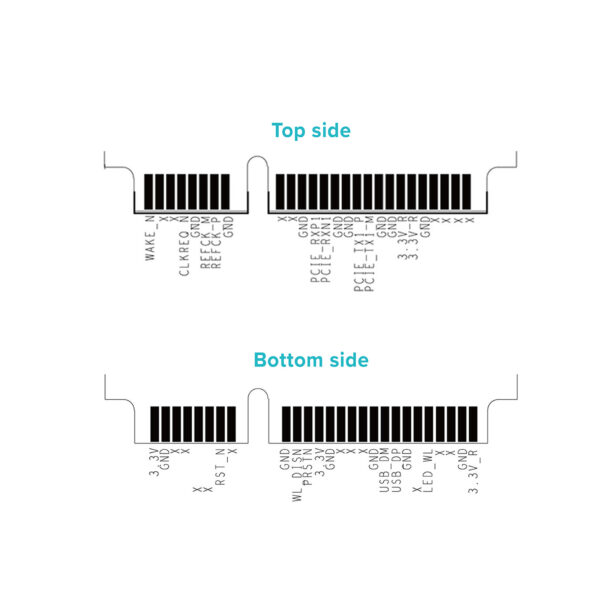

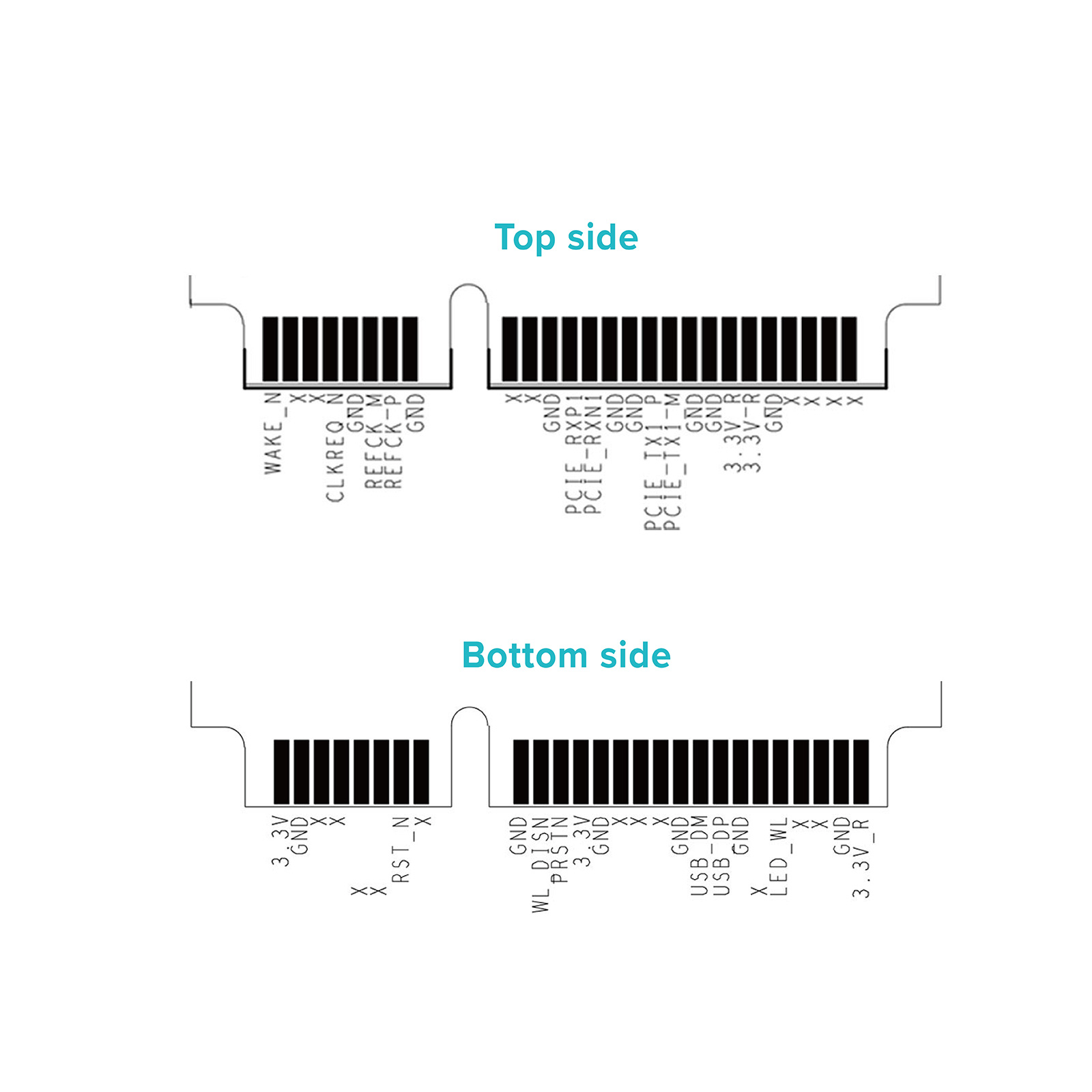

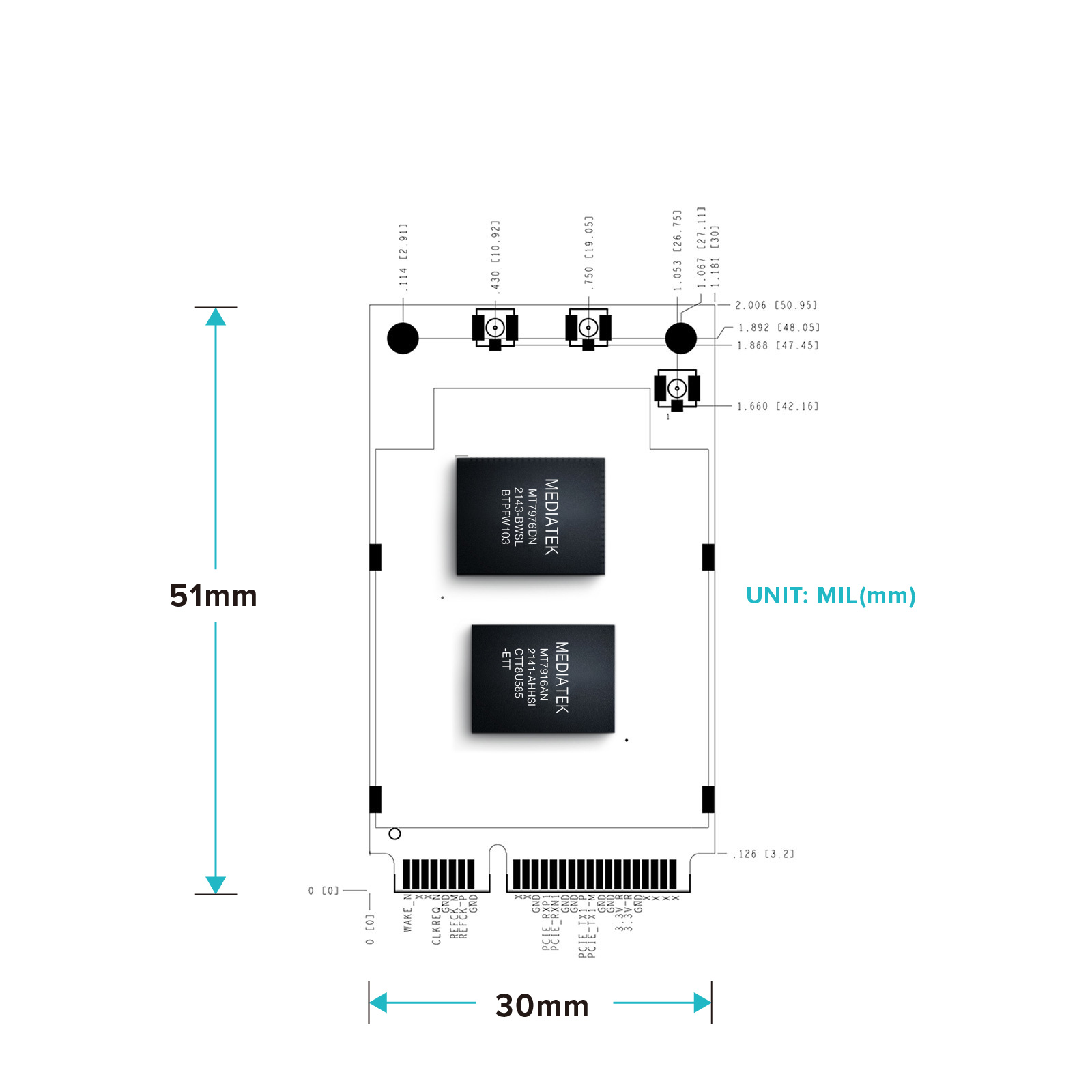

| Dimension | 50.95(H) x 30(W)mm |
Package with Heatsink 30x30x10mm Aluminum material
Power consumption maximum is 8W, average is 5W.
Main board Power Supply design please provide 3.3V 3.5A, minimum 3.3V 3A.
Additional information
| Weight | 0.028 kg |
|---|---|
| Dimensions | 9.5 × 6.5 × 2.5 cm |
