Sim Card Extender M16 IP67 Waterproof for Cabinet Chassis Case Frame Envelope Outdoor

$9.95

Sim Card Extender M16 IP67 Waterproof for Cabinet Chassis Case Frame Envelope applied in Outdoor applications, with tiny size Nano SIM or Micro SD

Quantity Discount (%) Price
1 - 99 $9.95
100+ 9.55 % $9.00
x

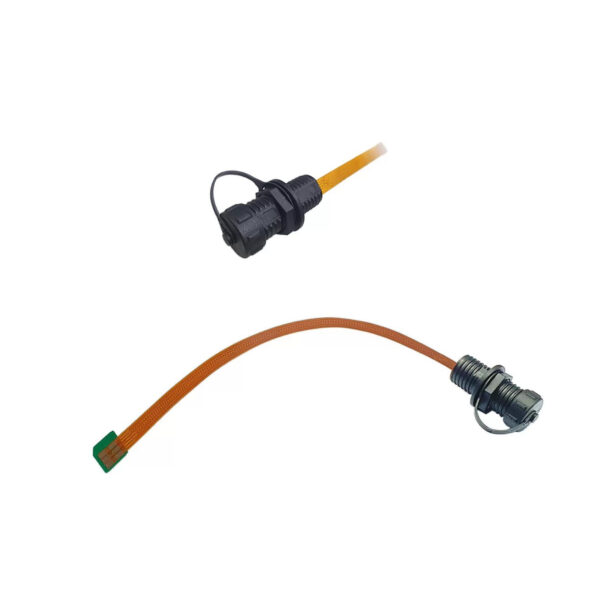

Sim Card Extender M16 IP67 Waterproof for Cabinet Chassis Case Frame Envelope Outdoor

Promotion price is 9.95USD/pcs.



We are happy to do customized for you.

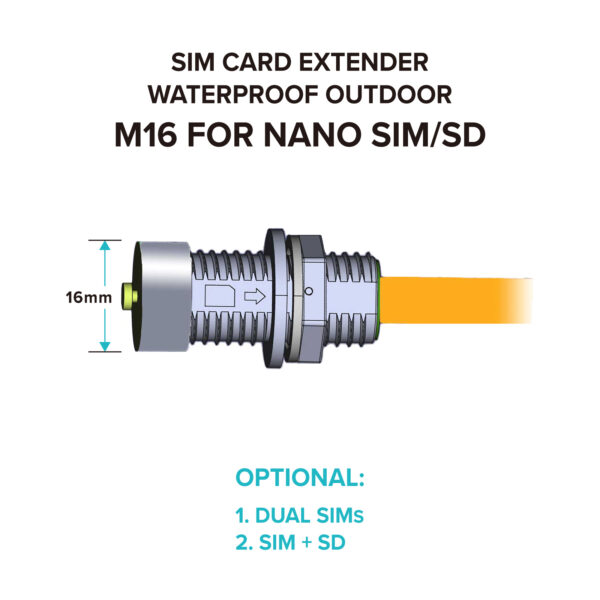

Tiny Size M16 with Nano SIM or Micro SD

~~~ Promotion Now ~~~

SIM card Extender IP67 Waterproof is a key component applied in all LTE 5G NBIoT RSU outdoor applications. You don’t need to open the chassis case to switch with different SIM card avoid troubles and malfunctions.

Applications:
1. Outdoor telecom equipment
2. Outdoor 5G gateway
3. Outdoor LTE gateway
4. NBIoT
5. IoT

This waterproof connector is the smallest connector you can find and combined with SIM card extender.

Learn more on our blog : From Wireless to IoT : AsiaRF’s Journey of Innovation

Or follow us on Linkedin

This serial products are with the 6 contact points (included VPP) on the SIM mock card for you can coding with the SIM card. The SIM card extenders in market now only provide 5 contact point conducted, they are without VPP contact point.

SIM Card Extender

  • SIM slot is for Nano SIM only (NO Micro / Mini SIM).
  • On the flexible PCB end side is Nano / Micro / Mini mock card.
  • 2 cable length, 265mm and 315mm are available.
  • 12 models of SIM card extender for you to choose.
  • 6 contact points conducted for full operation.



SIM-Card-Sizes-768x768

In mock card end (this end will be inserted to the slot of your board), please confirm the broken corner direction is forward or reverse.

sim-card-direction-768x768

Part Number SIM Card Slot Real Card Type Mock Card Type / Broken Corner Direction total length PCB dimension
ASBTW00010811203 PCB-Nano SIM Mini SIM-reversed 265 mm 12*33 mm
ASBTW00010811204 PCB-Nano SIM Mini SIM-forward 265 mm
ASBTW00010711203 PCB-Nano SIM Micro SIM-reversed 265 mm
ASBTW00010711204 PCB-Nano SIM Micro SIM-forward 265 mm
ASBTW00010911203 PCB-Nano SIM Nano SIM-reversed 265 mm
ASBTW00010911204 PCB-Nano SIM Nano SIM-forward 265 mm



Part Number SIM Card Slot Real Card Type Mock Card Type / Broken Corner Direction total length PCB dimension
ASBTW00010811201 PCB-Nano SIM Mini SIM-reversed 315mm 12*33mm
ASBTW00010811202 PCB-Nano SIM Mini SIM-forward 315mm
ASBTW00010711201 PCB-Nano SIM Micro SIM-reversed 315mm
ASBTW00010711202 PCB-Nano SIM Micro SIM-forward 315mm
ASBTW00010911201 PCB-Nano SIM Nano SIM-reversed 315mm
ASBTW00010911202 PCB-Nano SIM Nano SIM-forward 315mm

All above can do dual cards. Please send email to [email protected]  to request your need.



Weight 0.009 kg
Dimensions 25 × 2.3 × 2.3 cm
SIM Card Slot Real Card Type

Nano SIM

Mock Card Type/Broken Corner Direction

Mini SIM-reversed, Mini SIM-forward, Micro SIM-reversed, Micro SIM-forward, Nano SIM-reversed, Nano SIM-forward

Total length

265 mm, 315 mm
