Dual Sim Card Extender M16 IP67 Extra Tiny Waterproof for Cabinet Chassis Case Frame Envelope Outdoor

Original price was: $20.00.Current price is: $15.00.

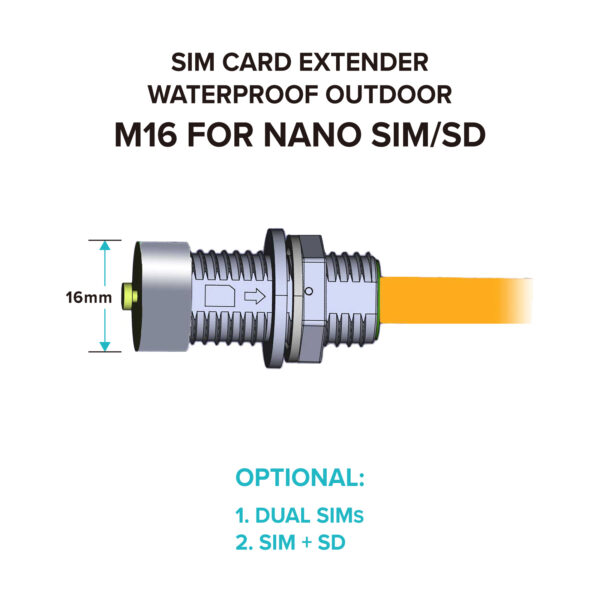

Dual Sim Card Extender M16 IP67 Waterproof for Cabinet Chassis Case Frame Envelope applied in Outdoor applications, with tiny size Nano SIM or Micro SD





Quantity Discount (%) Price
1 - 99 25 % $15.00
100+ 35 % $13.00
x

Dual Sim Card Extender M16 IP67 Waterproof for Cabinet Chassis Case Frame Envelope Outdoor

Tiny Size M16 with Nano SIM or Micro SD

We are happy to customize it for you.

~~~ Promotion Now ~~~

SIM card Extender IP67 Waterproof is a key component applied in all LTE 5G NBIoT RSU outdoor applications. You don’t need to open the chassis case to switch with different SIM cards to avoid trouble and malfunctions.
SIM card Extender IP67 Waterproof is a key component applied in all LTE 5G NBIoT RSU outdoor applications. You don’t need to open the chassis case to switch with different SIM cards to avoid trouble and malfunctions.

Applications:
1. Outdoor telecom equipment
2. Outdoor 5G gateway
3. Outdoor LTE gateway
4. NBIoT
5. IoT

This waterproof connector is the smallest connector you can find and combined with SIM card extender.

These serial products are with the 6 contact points (included VPP) on the SIM mock card for you can coding with the SIM card. The SIM card extenders in the market now only provide 5 contact points conducted, they are without VPP contact points.

SIM Card Extender

  • SIM slot is for Nano SIM only (NO Micro / Mini SIM).
  • On the flexible PCB end side is Nano / Micro / Mini mock card.
  • 2 cable lengths, 265mm and 315mm are available.
  • 12 models of SIM card extender for you to choose.
  • 6 contact points conducted for full operation.

Dual Sim Card Extender M16 IP67 Extra Tiny Waterproof for Cabinet Chassis Case Frame Envelope Outdoor-Sizes

In mock card end (this end will be inserted to the slot of your board), please confirm the broken corner direction is forward or reverse.

Dual Sim Card Extender M16 IP67 Extra Tiny Waterproof for Cabinet Chassis Case Frame Envelope Outdoor -direction



Dual Sim Card Extender M16 IP67 Extra Tiny Waterproof for Cabinet Chassis Case Frame Envelope Outdoor -Diagram

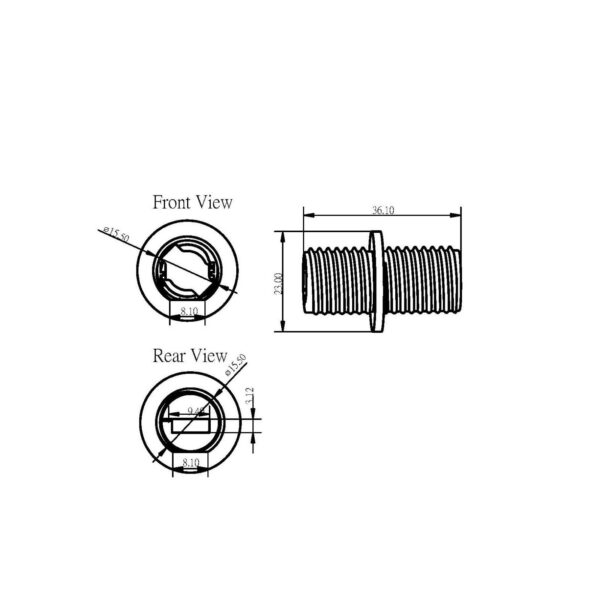

Dual Sim Card Extender M16 IP67 Extra Tiny Waterproof for Cabinet Chassis Case Frame Envelope Outdoor-Front View / Rear View



Learn more on our blog : From Wireless to IoT : AsiaRF’s Journey of Innovation

Or follow us on Linkedin

Weight 0.012 kg
Dimensions 25 × 2.3 × 2.3 cm
1st SIM Card Slot Real Card Type

PCB-Nano SIM

1st Mock Card Type / Broken Corner Direction

Mini SIM-reversed, Mini SIM-forward, Micro SIM-reversed, Micro SIM-forward, Nano SIM-reversed, Nano SIM-forward

1st Total length

265 mm, 315mm

2nd SIM Card Slot Real Card Type

PCB-Nano SIM

2nd Mock Card Type / Broken Corner Direction

Mini SIM-reversed, Mini SIM-forward, Micro SIM-reversed, Micro SIM-forward, Nano SIM-reversed, Nano SIM-forward

2nd Total length

265 mm, 315mm
