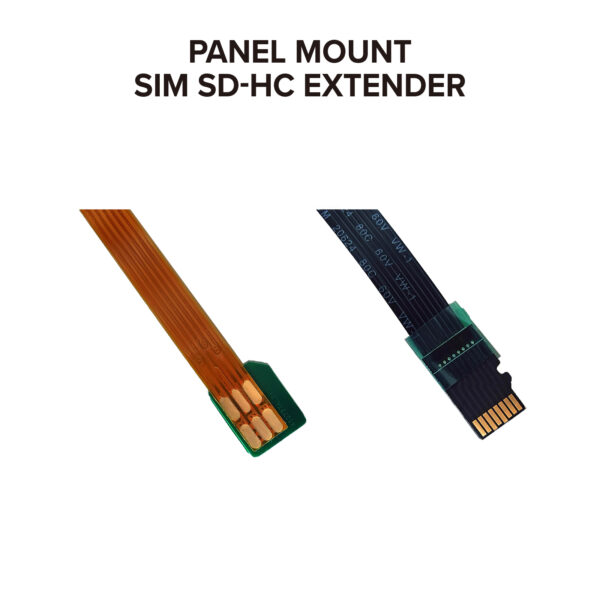

ASBTW00010210061 Panel Wall Mount SIM SD Extender for Enclosure Case Box

$23.50

Panel Wall Mount SIM SD-HC Extender ASBTW00010210061 is for your cellular router is mounted on a rack.
This extends the SIM slots from the back of the rack to the front so you can easily install and change SIM cards without uninstalling your rack.

Quantity Discount (%) Price
1 - 99 63.85 % $23.50
100 - 499 70.77 % $19.00
500 - 999 72.31 % $18.00
1,000+ 75.38 % $16.00
x

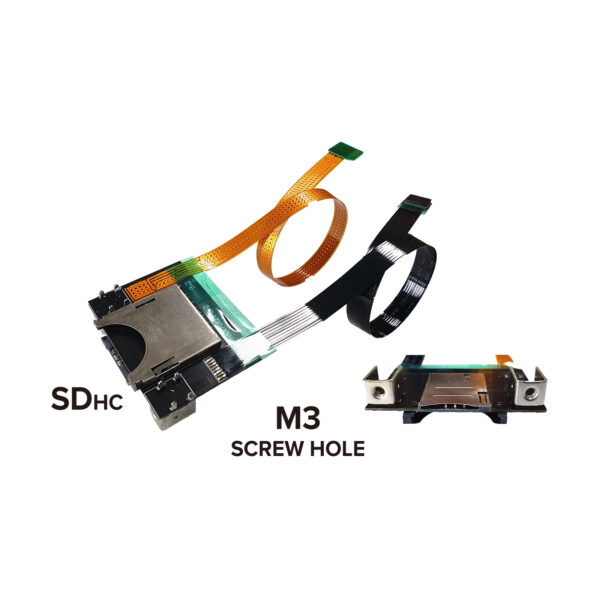

Panel Wall Mount SIM SD Extender ASBTW00010210061 is for your cellular router mounted on a rack, this extends the SIM and SD slots from the back of the rack to the front so you can easily install and change SIM and SD cards without uninstalling your rack.

ASBTW00010210061 Panel Wall Mount SIM SD Extender for Enclosure Case Box

ASBTW00010210061 Panel Wall Mount SIM SD Extender for Enclosure Case Box

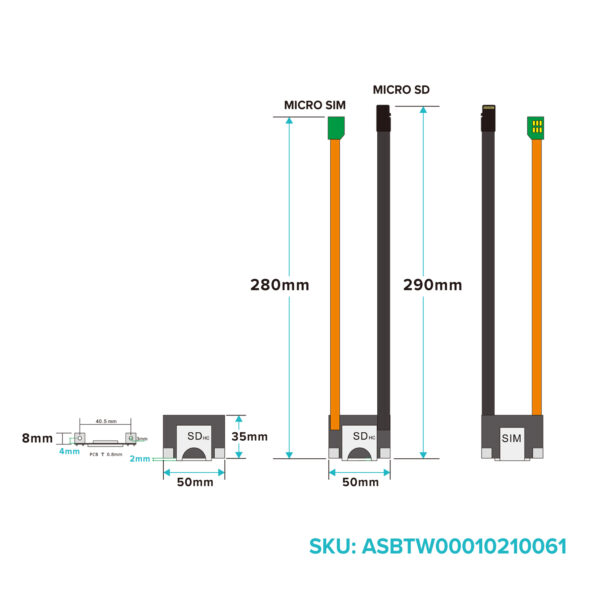

ASBTW00010210061 Panel Wall Mount SIM SD Extender for Enclosure Case Box-dimension

ASBTW00010210061 Panel Wall Mount SIM SD Extender for Enclosure Case Box

Learn more on our blog : From Wireless to IoT : AsiaRF’s Journey of Innovation

Or follow us on Linkedin

  • Mini SIM 2FF to Micro SIM 3FF (fake card)
  • SD to micro SD (fake card)
  • PCB Dimensions: 1.97 x 1.38 x 0.315 inches (50 x 35 x 8 mm)
  • Length of SIM Extension:  8.27 inches (210 mm)
  • Length of SD HC Extension:  8.86 inches (225 mm)
  • Weight: 13g
  • Warranty: 1-Year Limited Warranty



panel-mount-sim-sd-extender-diagram

panel-mount-sim-sd-extender-diagram

重量 0.013 公斤
尺寸 29 × 5 × 1 公分
