Description
Wi-Fi Shuttle brings fast, reliable wireless to home and industry, one device build in Wi Fi 6, 5GNR/4G and HaLow.
The Wi-Fi Shuttle is a versatile Wi-Fi 6, Cellular 5GNR/4G LTE, HaLow router powered by the MediaTek MT7622 chipset, featuring 2.4/5GHz Wi-Fi, GPS, and LoRa IoT capabilities. It supports Wi-Fi 6 speeds up to 1800 Mbps when equipped with the AW7915 series Wi-Fi modules.
Firmware is available for integration with Wi-Fi and cellular modules, which are sold separately. The board measures 12 x 16 cm and includes a high-performance 1.35GHz ARM® Cortex-A53 MPCore™ CPU, multiple interfaces (UART, I2C, SPI, GPIO), and a variety of connectivity options (SGMII, RGMII, PCIe 2.0, USB 2.0/3.0, 5-port switch). It supports Bluetooth, 802.11n/ac/ax WLAN via PCIe and prioritizes streaming services with its hardware NAT engine and QoS.
Designed for smart Wi-Fi AP routers and home gateways, it’s an ideal solution for advanced network applications.
Specification Comparison Chart : Best-Selling Wi-Fi Module
Follow us on LinkedIn : From Wireless to IoT : AsiaRF’s Journey of Innovation
Features
HARDWARE FEATURE
• MediaTek MT7622 chipset with Interface UART, PWM, MDC, MDIO, JTAG, I2C, SPI, GPIOs and USB(LTE) port.
• Flash SPI NAND Flash 128MB (1Gb), Max 512MB (4Gb)
• DDR3 256MB (2Gb)
• Data Rate up to 1800 Mbps
• Security: 64/128-bits WEP, TKIP,WPA, WPA2,AES,WPS
• 5 x Giga LAN ports
SOFTWARE FEATURE
• Support OPENWRT, MTK SDK
• Network Features:
• Video, Storage
• DHCP Client/Relay/Server
• Dynamic DNS
• NTP Client
• DNS Cache/Proxy
• Firewall
• MAC/IP/Port Filter
• Virtual Server
• DMZ
• Content Filter
Standard
| Standard | IEEE 802.11a/b/g/n/ac/ax (2Tx2R) standards compliant |
| Wireless LAN | IEEE802.11ax 1773Mbps@TX/RX
IEEE802.11ac 1107Mbps@TX/RX IEEE802.11n 600Mbps@TX/RX IEEE802.11a/g 54Mbps IEEE802.11b 11Mbps |
| Cellular | Compatible with m.2 B key card |
| Memory | Flash is SPI SOP8 128MB
DDR3 is 256MB 16bits BUS |

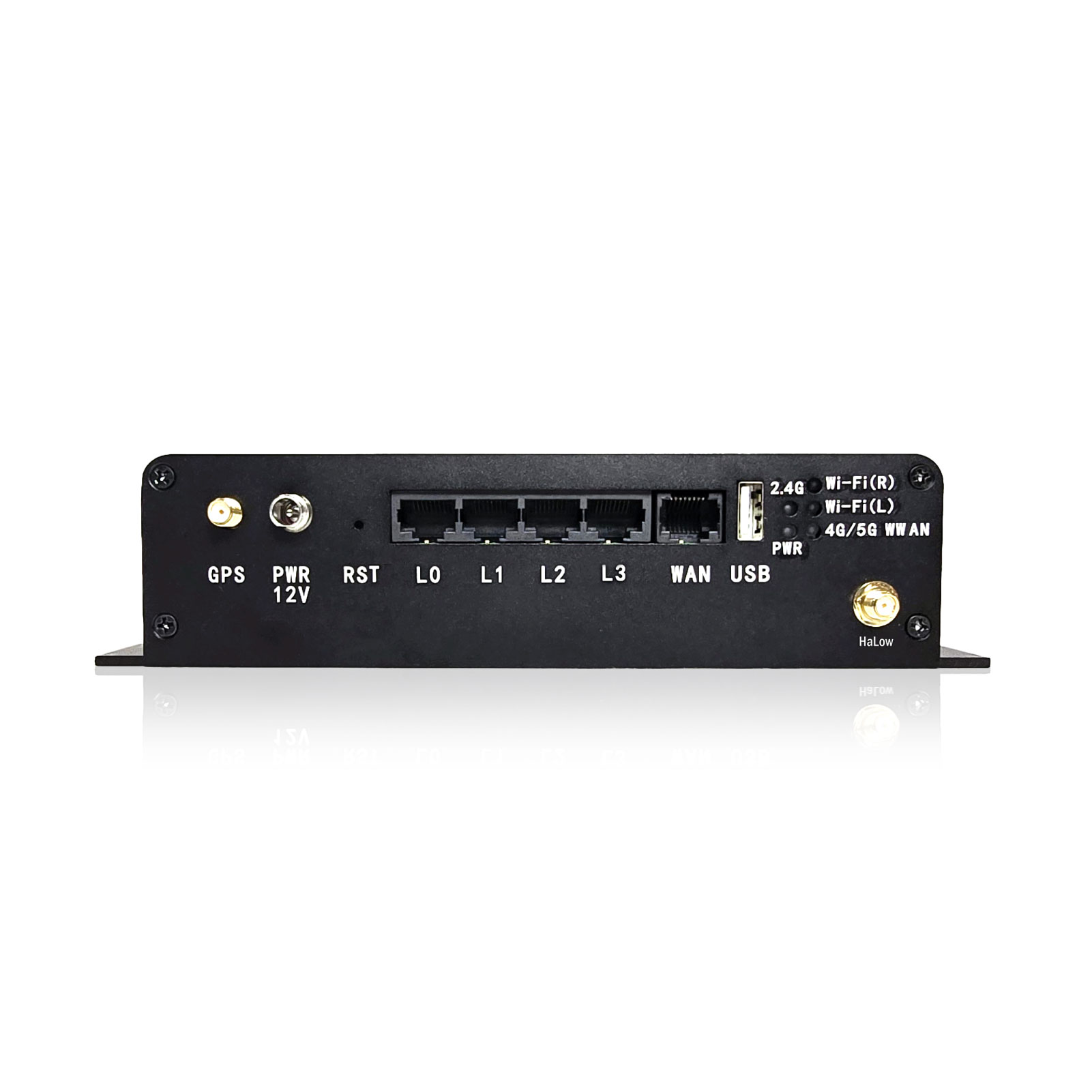

| Interface | 5 x Giga Ethernet Ports ( LAN x 4 + WAN x 1 )
1 x USB 2.0 1 x GPS Reset key WPS key |
| Power | DC 12V/3A |
Additional information
| Weight | 1.3 kg |
|---|---|

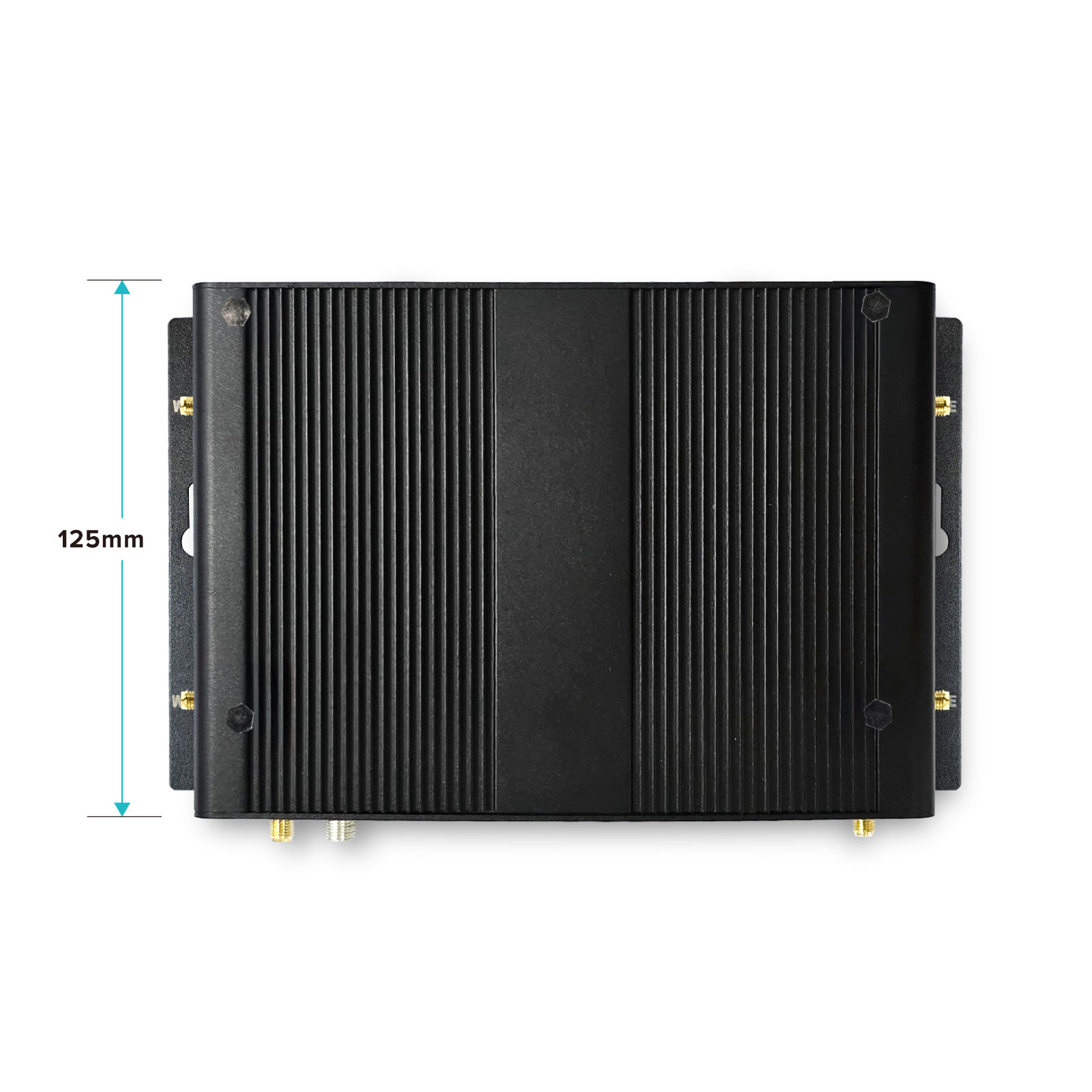

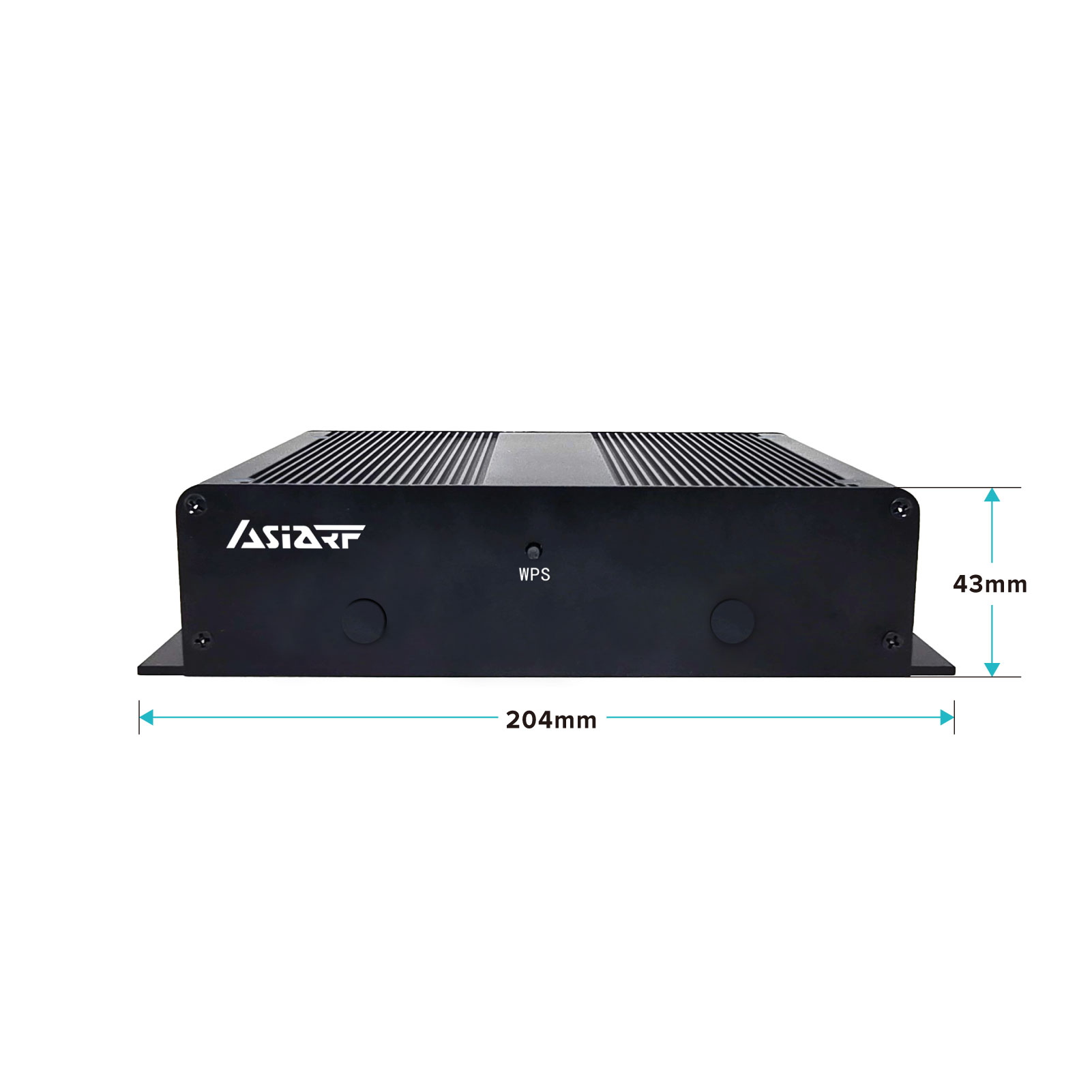

| Dimensions | 21.6 × 18.6 × 3 cm |
| standard | HaLow, LoRa |
