ANTS0WF602M01001 Wi-Fi 7 6E 2.4GHz 5GHz 6GHz Antenna

$12.00

Wi-Fi 7 Antenna ANTS0WF602M01001  , 2400-2500MHz, 5150-5850MHz, 6150-7200MHz, SMA Plug, 2-5dBi, 188×21.6mm. Stay ahead with these advanced Wi-Fi 7 antennas, covering a wide range of frequencies and offering robust signal strength and stability.



Quantity Discount (%) Price
1 - 9 33.33 % $12.00
10 - 49 38.89 % $11.00
50 - 99 41.67 % $10.50
100 - 499 44.44 % $10.00
500+ 45.28 % $9.85
x

Wi-Fi 7 Antenna ANTS0WF602M01001  , 2400-2500MHz, 5150-5850MHz, 6150-7200MHz, SMA Plug, 2-5dBi, 188×21.6mm

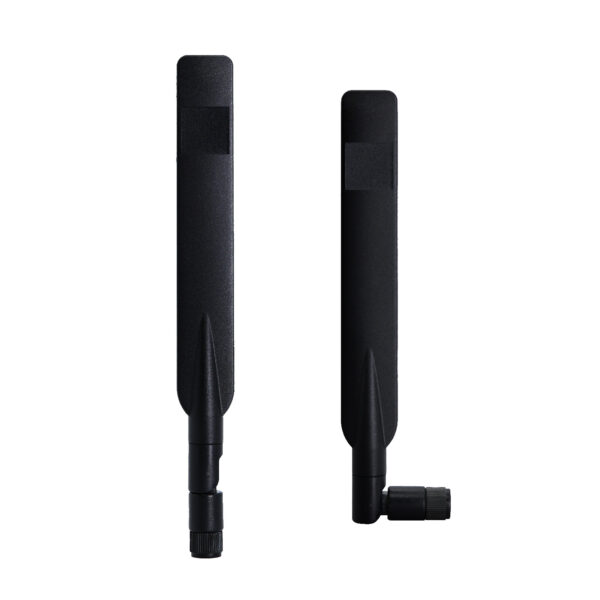

The Wi-Fi 7 Antenna ANTS0WF602M01001 is an advanced antenna solution for modern wireless communications. It supports frequencies from 2400-2500MHz, 5150-5850MHz, to 6150-7200MHz, ensuring wide compatibility.

The antenna features an SMA Plug and offers a gain of 2-5dBi, promising strong and reliable signal reception. With dimensions of 188×21.6mm, it’s compact yet effective for both personal and professional use.

This antenna is ideally paired with the AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module, enhancing its capabilities. Click here to learn more about the AW7916-NPD.



Wi-Fi 7 6E 2.4 GHz/ 5 GHz/ 6 GHz Antenna ANTS0WF602M01001-dimension
Wi-Fi 7 6E 2.4 GHz/ 5 GHz/ 6 GHz Antenna ANTS0WF602M01001-dimension

Learn more on our blog : From Wireless to IoT : AsiaRF’s Journey of Innovation

Or follow us on Linkedin



Frequency Range 2400~2500MHz

5150~5850MHz

6150~7200MHz

Impedance 50Ωy

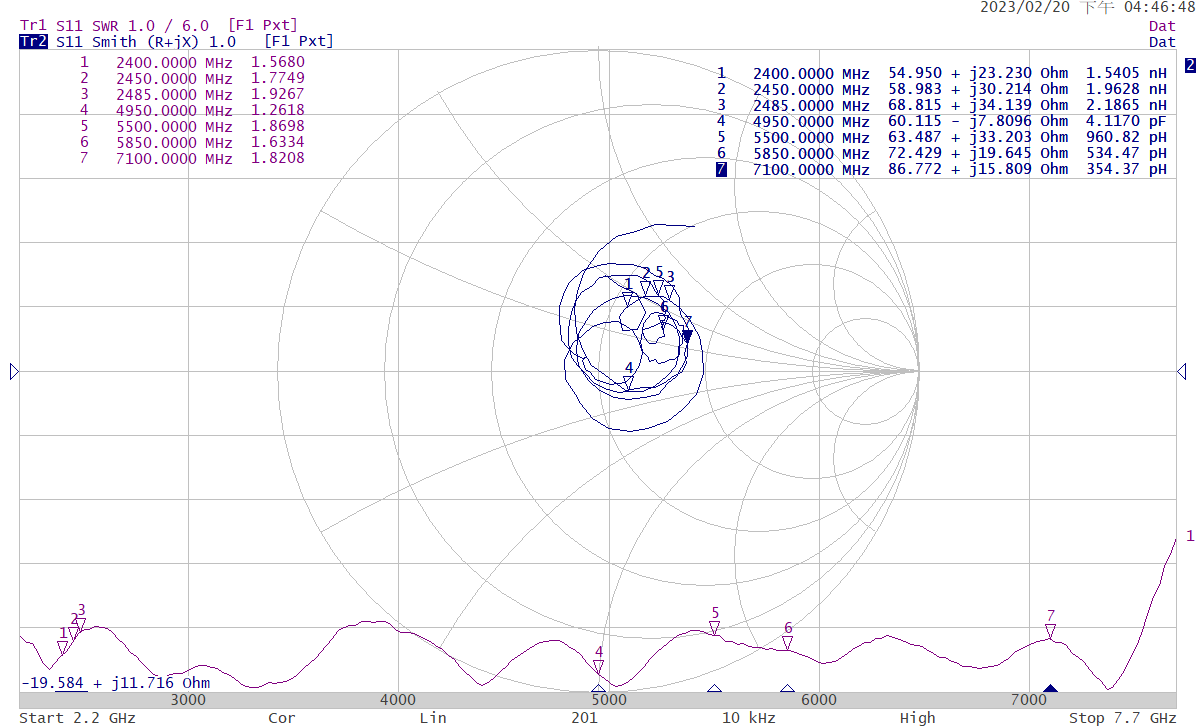

VSWR 2400~2500MHz@≤2.5

5150~5850MHz@≤2.5

6150~7200MHz@≤4.0

Gain 2-5dBi
Admitted power radiation 1W
Pattern of Radiation Toroidal
Radiation Omni
Polarization Vertical
Connector Type RP-SMA Plug

 Mechanical properties

Operation temperature range  -20℃~+85℃
Storage temperature range -20℃~+85℃
Color Black
Dimension As diagram
Weight 11.4 g
Main Material PC/PC+PBT/POM/ Brass/RG316/PCB/
重量 0.024 公斤
尺寸 20 × 1.3 × 2.2 公分
