Description
This package includes the AW7916-AED Wi-Fi 6E AX3000 module, precision coaxial cables, and high-efficiency Wi-Fi 7 antennas—delivering a complete, ready-to-integrate platform for advanced wireless networking.
Powered by the MediaTek MT7916 chipset, the Wi-Fi 6E AX3000 module supports 802.11ax standard, dual-band dual concurrent (DBDC) architecture, and speeds up to 3000 Mbps. It ensures stable, high-speed connectivity across 2.4GHz, 5GHz, and 6GHz bands, making it ideal for high-density and bandwidth-intensive environments.
Pre-certified with FCC, IC, and CE, this solution reduces certification complexity, saving time, lowering costs, and accelerating product deployment.

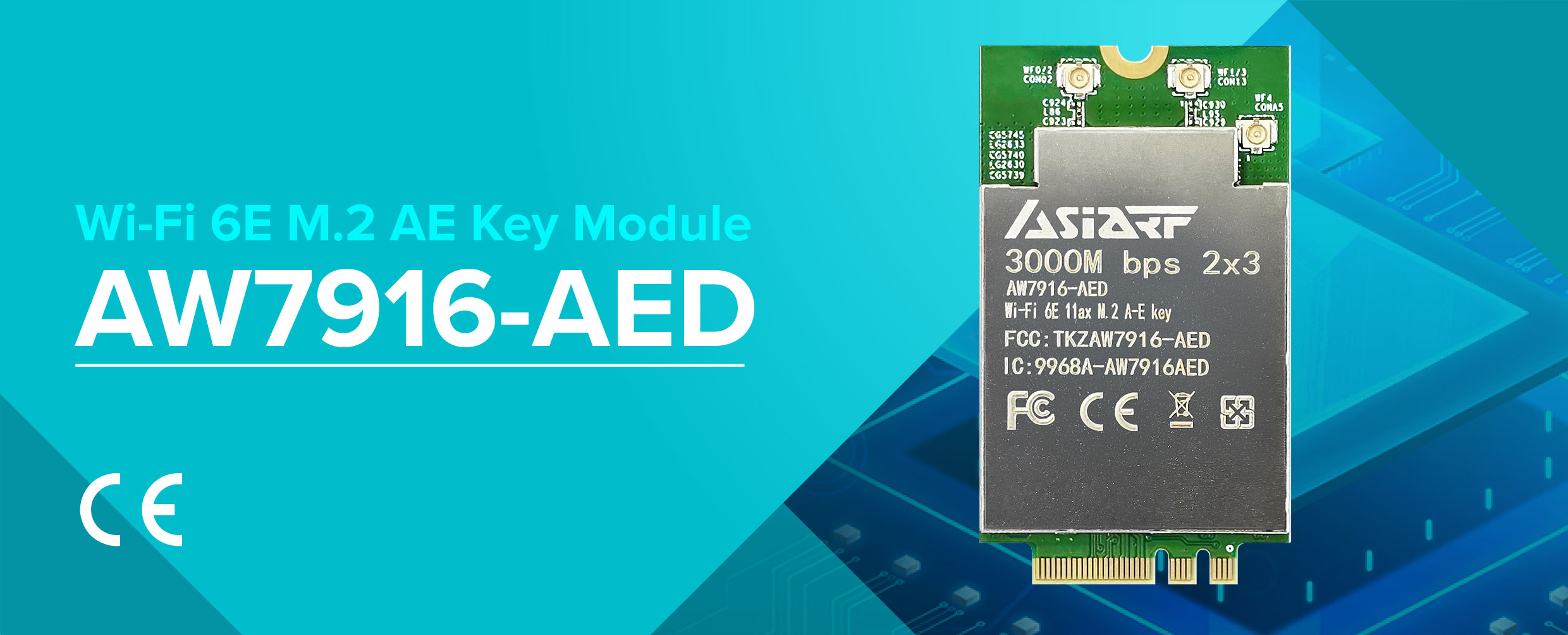

【Wi-Fi 6E EFFICIENT Package】Wi-Fi 6E AX3000 Module AW7916-AED, Precision Coaxial Cables, and Wi-Fi 7 Antennas V1 06
Wi-Fi 6E AX3000 Module Performance
- Tri-band: 2.4GHz (2T2R) + 5GHz/6GHz (2T3R)
- PCIe 2.1 compliant
- Optimized RF performance for high throughput, low latency, stable connections in dense deployment environments
- Supports high-capacity data transmission, enhanced security, and scalable integration
- Suitable for enterprise, industrial, and advanced IoT applications
Key Capabilities & Benefits
- Expanded Spectrum & Capacity
Unlocks 6 GHz band with 160 MHz channels, increasing network capacity and reducing interference - Higher Network Efficiency
OFDMA improves channel utilization, reduces latency across multiple devices - Massive Device Connectivity
MU-MIMO supports simultaneous multi-device communication - Ultra-High Throughput
1024-QAM enables AX3000 speeds for bandwidth-intensive applications - Enhanced Signal Performance
Beamforming ensures stable, reliable connections
The Wi-Fi 6E AX3000 Module AW7916-NPD provides a more powerful experience for high-bandwidth applications with ultra-low latency and superior connection stability. By utilizing up to 14 additional 80MHz channels or 7 extra ultra-wide 160MHz channels in the 6GHz frequency band, it supports smooth and high-definition video calls and can handle large-scale data transmission.
Why AsiaRF
- Flexible Product Portfolio
Modules from entry-level to high-performance - Proven Across Industries
Smart cities, industrial automation, healthcare, logistics - Quality You Can Trust
Strict validation ensures long-term reliability - Engineering-Level Support
Dedicated support from design to deployment - Optimized Cost Efficiency
Pre-certified and integrated solutions reduce development cost and time-to-market
Backed by strong partnerships with MediaTek and Morse Micro, AsiaRF delivers future-ready wireless solutions with reliable supply and continuous innovation.
Features
- Standard: IEEE 802.11 a/b/g/n/ac/ax
- Channel Bandwidth: 20/40 MHz (2.4GHz), 20/40/80/160 MHz (5GHz/6GHz)
- PHY Rate: Up to 3000 Mbps (2T2R + 2T3R, DBDC)
- Multi-Device Support: MU-MIMO TX/RX, MU-OFDMA TX/RX
- Advanced Features: STBC, LDPC, TX/RX Beamformer, Greenfield/mixed/legacy modes
- Security: WPA / WPA2 / WPA3
- Power Saving: WMM, WMM PS
- MCU: 32-bit RISC for Wi-Fi offload
- Memory: Embedded SRAM / ROM
- Interface: UART with hardware flow control, programmable GPIO
- PCIe Compliance: v2.1
- Calibration: Built-in efuse for calibration data
Standard
| Standards | Wireless: G-band 2T2R + A-band 2T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps |
| Data Rate | IEEE 802.11ax 3000Mbps@TX/RX |
| Output Power | 11b: 23dbm+/- 1.5dbm @ 11Mbps 11g: 21dbm+/- 1.5dbm @ 54Mbps 11g/n: 21dBm +/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE4011a: 20dBm +/- 1.5dbm @ 54Mbps 11a/n: 20dBm+/- 1.5dbm @MCS7,HE20,16.5dBm@MCS7,HE4011ac HE20: 20+/-1.5dBm@MCS8 11ac HE40: 17+/-1.5dBm@MCS9 11ac HE80: 14.5+/-1.5dBm@MCS911ax HE20: 20+/-1.5dBm@MCS911ax HE40: 17+/-1.5dBm@MCS911ax HE80: 13.5+/-1.5dBm@MCS1111ax HE160: 13.5+/-1.5dBm@MCS11 |
| Receiver Sensitivity | 11b: -99dBm@11Mbps 11g: -95dBm@54Mbps 11g/n: -90dBm@HT20,MCS7, -86dBm@HT40,MCS7 11a: -90Bm@54Mbps 11a/n: -85dBm@HT20,MCS7, -81dBm@HT40,MCS711ac: -90dBm+/-2dBm @VHT20 MCS8 11ac: -85dBm+/-2dBm @VHT40 MCS9 11ac: -68dBm+/-2dBm @VHT80 MCS911ax: -61dBm+/-2dBm @HE20 MCS11 11ax: -58dBm+/-2dBm @HE40 MCS11 11ax: -55dBm+/-2dBm @HE80 MCS11 |
| Certification | CE FCC ID: TKZAW7916-NPD IC ID: 9968A-W7916NPD |
| Antenna | External Antenna connector (IPEX) x3 |
| Frequency Range | US, Canada 2.4G Bands: 2.412GHz~2.462 GHz, 5G Bands:5.15GHz ~5.875GHz, 6G Bands: 5.925 ~ 7.125 GHz EU, Japan: 2.4G Bands: 2.412GHz~2.472GHz, 5G Bands:5.15GHz ~5.875GHz, 6G Bands: 5.925 ~ 7.125 GHz |
| Software | Security: 64/128-bit WEP Encryption, WPA, WPA2 Driver: Linux |
| Operating Voltage | DC 3.3V ± 5% |
| Temperature | Operating: -10°C ~ +70°C Storage : -20°C ~ +90°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
| Dimension | 30(W)mm x 52(L) x 5.1(H) |
Package with Heatsink 30x30x10mm Aluminum material
Power consumption maximum is 8–9W, typical 4–5W.
Main board power supply design requires 3.3V / 3A (minimum 3.3V / 2.5A)
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 15 × 6 × 1.5 cm |
