Wi-Fi HaLow Portable Gateway Dual-Band ARFHL-UM

Wi-Fi HaLow portable gateway ARFHL-UM dual-band, offering plug-and-play, zero-configuration connectivity with exceptional energy efficiency and USB power bank support. It provides long-range, seamless mobile networking over distances exceeding 1 km, ideal for on-the-go applications.

*Country Standards: For Singapore customers: Please choose either the US or EU version based on your requirements.

For purchasing inquiries, please connect with our sales team:  sales@asiarf.com  /  (+886) 2 2940 7880

Wi-Fi HaLow Portable Gateway Dual-Band ARFHL-UM: Seamless Connections, Smooth Mobile Experience with WiFi HaLow Portable.

  • Plug-and-Play, Zero Configuration: No setup required, off­ering immediate access to wireless internet.
  • Energy Efficiency: Wi-Fi HaLow ensures low power consumption, long-range connectivity, excellent signal penetration, and energy efficiency, all while reducing costs and environmental impact.
  • USB Power Bank Support: A wearable, convenient solution. A standard power bank can keep the ARFHL-UM operational for up to 8 hours.
  • Seamless On-the-Go Connectivity: Lightweight, convenient wearable devices, combined with Wi-Fi HaLow’s long-range connectivity, provide wireless networking anytime, anywhere.
  • Long-Range Solution: Off­ers connectivity over distances exceeding 1 km, surpassing the limitations of traditional Wi-Fi protocols.



Wi-Fi HaLow Daul Band

Dual-Band Integration

With Dual-Band support for sub-1 GHz and 2.4 GHz frequencies, the device delivers enhanced range and speed, enables simultaneous use of both bands for a more robust connection, and accommodates more devices while maintaining energy efficiency.



  • Dual-Band Flexibility: Combines sub-1GHz Wi-Fi HaLow and 2.4GHz Wi-Fi, o­ffering flexibility for di­fferent use cases—extending range for long-distance connections and enabling immediate internet access for short-distance connections.
  • Extended Range: Utilizes sub-1GHz frequencies for better penetration through obstacles, making it suitable for long-distance connections.
  • Infrastructure Cost Reduction: Achieves superior wireless network coverage with fewer devices, thereby reducing infrastructure expenses.
  • Increased Device Capacity: The ability to operate on two frequency bands allows more devices to connect simultaneously without compromising on performance, making it ideal for industrial IoT applications.
  • High-Capacity Networking: Supports over 8,000 stable connections, vastly surpassing conventional Wi-Fi APs in densely populated IoT environments.
  • Superior Data Transmission: O­ffers a robust data rate of 150Kbps over distances exceeding 1 km, ideal for transmitting critical data in expansive industrial areas.

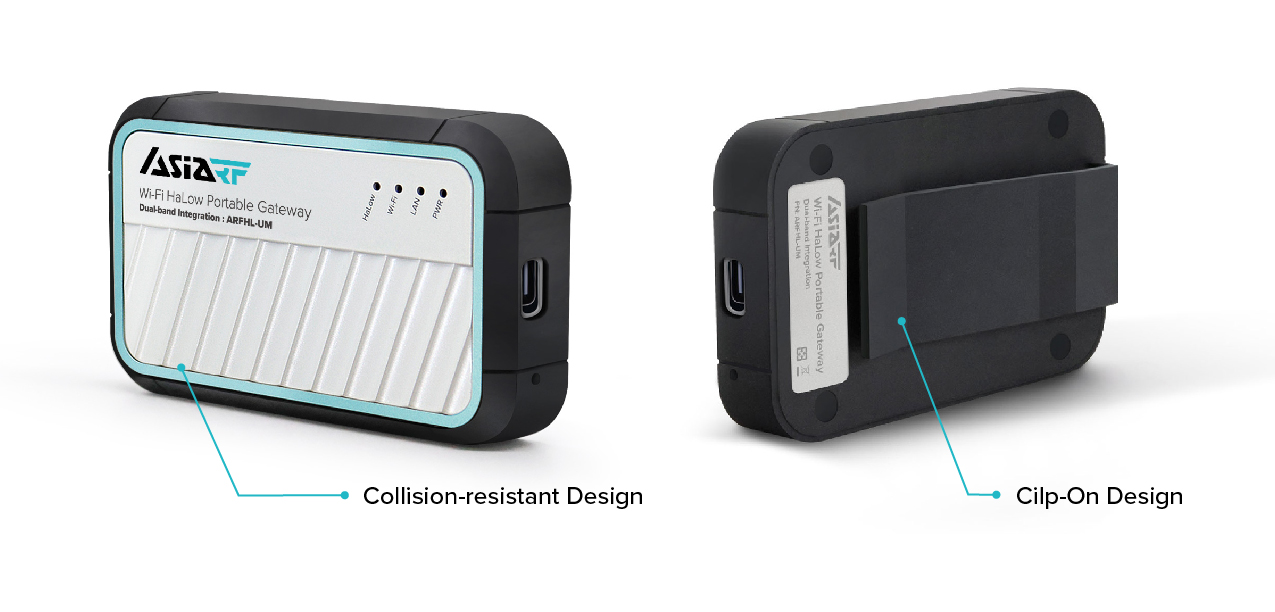

Portable Design

  • Collision-resistant Design: Employing a circular anti-collision design to ensure superior slip resistance, effectively resisting impacts and accidental collisions.
  • Clip-On Design: Meticulously crafted with a clip-on structure, allowing the device to be quickly and easily mounted on the body or other surfaces, providing a convenient and user-friendly carrying experience.

ARFHL-UM Application in PTT (Push-to-Talk)
The device features Wi-Fi HaLow technology for long-range, stable Push-to-Talk (PTT) connectivity. It delivers high-quality, two-way, multi-party PTT services across various industry sectors. To utilize this service, your smartphone needs to have a PTT application installed, such as the free app “Slide2Talk”.

ARFHL-UM Dual-Band Wi-Fi HaLow MESH Portable Gateway

Click to Watch the ARFHL-UM Field Testing Video



AsiaRF Wi-Fi Alliance HaLow Certified Halow for IoT
AsiaRF Wi-Fi Alliance HaLow Certified Halow for IoT



Star Topology Network

In its initial stages of deployment, the purpose of Wi-Fi HaLow is to be used in both indoor and outdoor scenarios where traditional Wi-Fi cannot cover, such as battery-powered monitoring systems, wireless cameras, and door- bells. It is also commonly used in large venues, where a single HaLow access point may replace many APs, eliminating redundant, complex mesh architectures, simplifying installation, and reducing total cost of ownership. In an increasingly automated world, many industries, including industrial automation, process control sensors, building automation, warehouses, and retail stores, need this technology to maintain connectivity everywhere.

ARFHL-UM Dual-Band Wi-Fi HaLow MESH Portable Gateway

Applications in Energy & Environment:

Rural Internet Enhancement Solution
APPLICATIONS:
Bridging
• Connectivity
• Economic development
• Education
• Telehealth
KEY BENFIT:
•
Extended reach
• Reliability
• Affordability

• Scalability
• Empowerment
Smart Agriculture Solution
APPLICATIONS:
• IoT devices
• Wireless connectivity
• Livestock management
• Sustainable agriculture

KEY BENFIT:
• Resource utilization
• Remote monitoring
• Precision farming
• Livestock tracking
• Sustainable practices
Industry 4.0
APPLICATIONS:
• Industrial automation
• Manufacturing processes
• Asset management
• Remote monitoring
• Robotics integration
KEY BENFIT:
• Enhanced connectivity
• Real-time monitoring
• Increased productivity
• Reduced downtime
• Cost reductions
Healthcare Revolution
APPLICATIONS:
• Medical device connectivity
• Remote patient monitoring
• Operational efficiency
• Secure data transmission

KEY BENFIT:
• Enhanced patient care      • Timely interventions
• Streamlined workflows      • Real-time inventory management
• Automated equipment maintenance
• Data security and privacy
• Compliance with regulatory standards





Robotic automation
APPLICATIONS:
Robotics automation
• Industrial automation
• Power management
• Real-time monitoring
KEY BENFIT:
Enhanced connectivity
• Increased productivity
• Real-time monitoringand control
• Scalability • Flexibility
Energy Remote Sensor/Control Solution
APPLICATIONS:
• Energy management
• Real-time monitoring
• Remote control
• Sustainability
KEY BENFIT:
• Energy consumption reduction
• Environmental sustainability
• Reliable connections
• Scalability
• Optimization recommendations

















Related Linkedin Post : AsiaRF Unveils Revolutionary Developments for MWC Las Vegas 2023: The World’s First Wi-Fi HaLow IoT Solution to Debut Soon



  • Plug-and-Play, Zero Configuration: No setup required, off­ering immediate access to wireless internet.
  • Energy Efficiency: Wi-Fi HaLow ensures low power consumption, long-range connectivity, excellent signal penetration, and energy efficiency, all while reducing costs and environmental impact.
  • USB Power Bank Support: A wearable, convenient solution. A standard power bank can keep the ARFHL-UM operational for up to 8 hours.
  • Seamless On-the-Go Connectivity: Lightweight, convenient wearable devices, combined with Wi-Fi HaLow’s long-range connectivity, provide wireless networking anytime, anywhere.
  • Long-Range Solution: Off­ers connectivity over distances exceeding 1 km, surpassing the limitations of traditional Wi-Fi protocols.

ARFHL-UM_non-mesh
