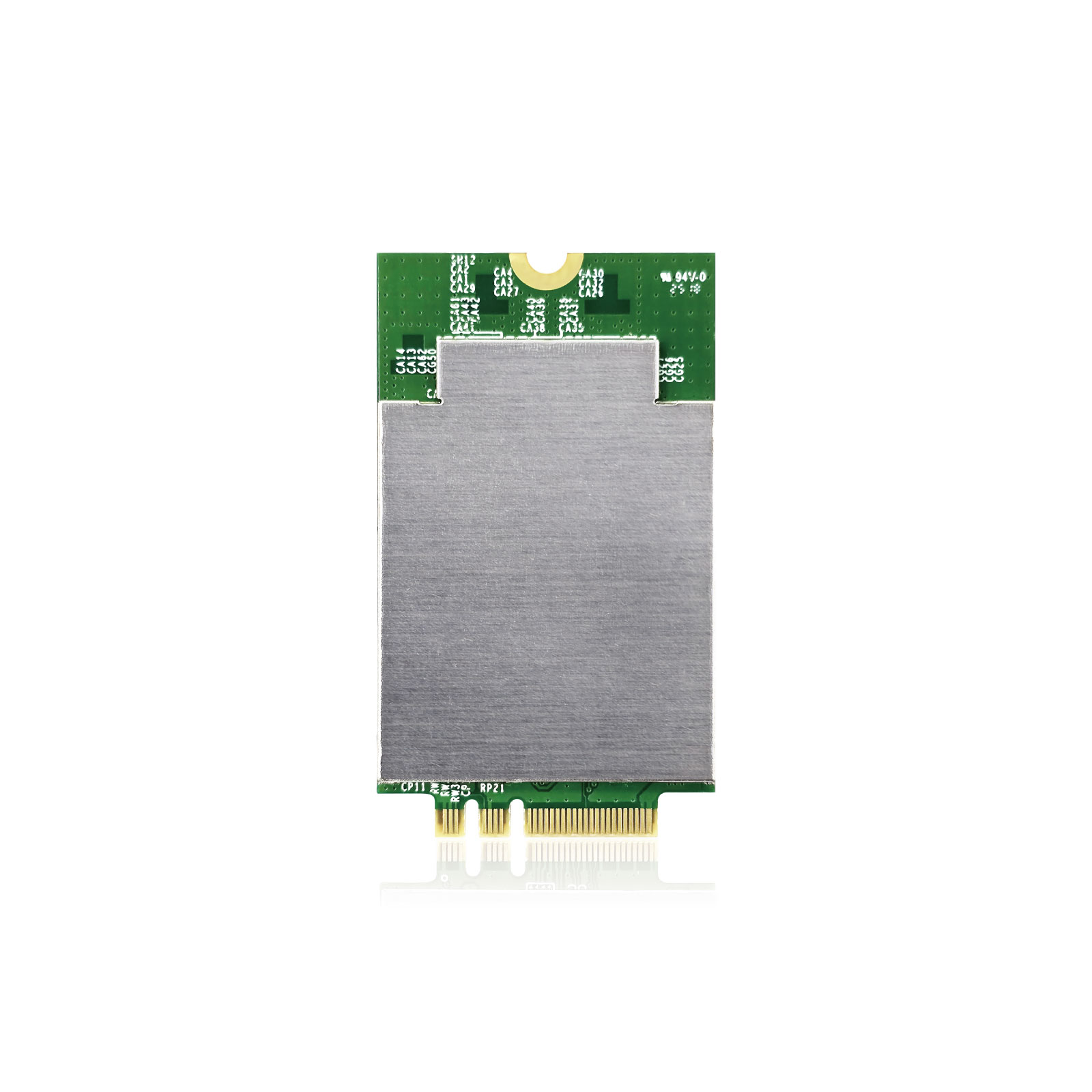

AW7990-AED: High-Performance Wi-Fi 7 BE3600 AP Module with MediaTek MT7990AN
AW7990-AED is an Wi-Fi 7 BE3600 module with MediaTek MT7990AN chipset supports Wi-Fi 7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant, 2.4GHz 2×2, 5GHz 3×3 2ss BE3600 Wi-Fi subsystem. The MT7990AN offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.

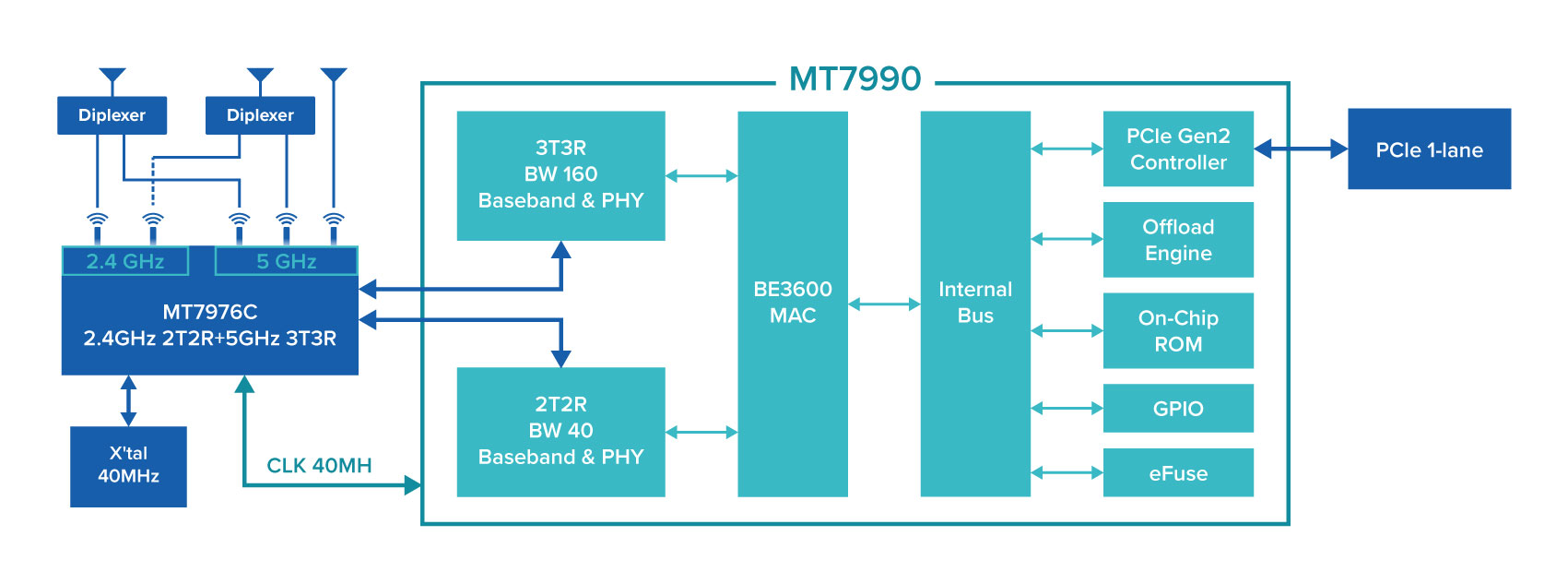

The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7976CN is designed to support standard-based features in the areas of security, quality of service, and international regula tions, giving end users the greatest performance at any time and in any circumstances.
Wi-Fi generation comparison overview
Features
WLAN
- Wi-Fi compliant
- IEEE 802.11a, b, g, n, ac, ax, be compliant
- 2.4GHz 20 and 40 MHz, 2×2
- 5GHz: 20, 40, 80 and 160 MHz, 3×3 2ss
- Dual-Band Dual Concurrent (DBDC) iFEM
- Supports up to 4096-QAM
- Data rate of up to 688Mbps for 40MHz channel in 2.4Ghz and 2882Mbps for 160MHz in 5GHz mode
- Integrated power detector to support per packet Tx power control
- Multi-user multiple input multiple output (MU-MIMO) for Tx and Rx
- Multi-user Orthogonal Frequency-Division Multiple Access (MU-OFDMA) for Tx and Rx
- Support STBC, LDPC, Tx beamformer and Rx beamformee
- Support greenfield mode, mixed mode, and legacy mod
Platform
- 32bit RISC-V MCU for Wi-Fi protocol and Wi-Fi offload
- Embedded SRAM and ROM
- PCIe3.0 interface
Security
- WFA, WPA, WPA2, WPA3 personal, WPS 2.0
QoS
- WFA WMM and WMM-PS
Standard
| Chipset | MT7990AN with MT7976CN |
| Memory | 8M byte |
| Host Interface | M.2 A-E key |
| Operating Voltage | DC 3.3V ± 5% |
| Power Consumption | 11.5W |
| Wireless | 2.4GHz 2T2R 802.11b/g/n/ac/ax/be
5GHz 3T3R 2ss 802.11a/n/ac/ax/be |
| Frequency Range | 2.4GHz: 2.412~2.472GHz
5GHz: 5.15~5825GHz |
| Channel Spectrum Widths | Supports 20/40MHz at 2.4GHz
Supports 20/40/80/160MHz at 5GHz |
| Antenna | External Antenna connector (IPEX) x3 |
| Operating System | Linux |
| Environmental Temperature | Operating:-10°C to 70°C, Storage:-20°C to 90°C |
| Environmental Humidity | Operating: 10% to 90%, Storage: Max. 90% |

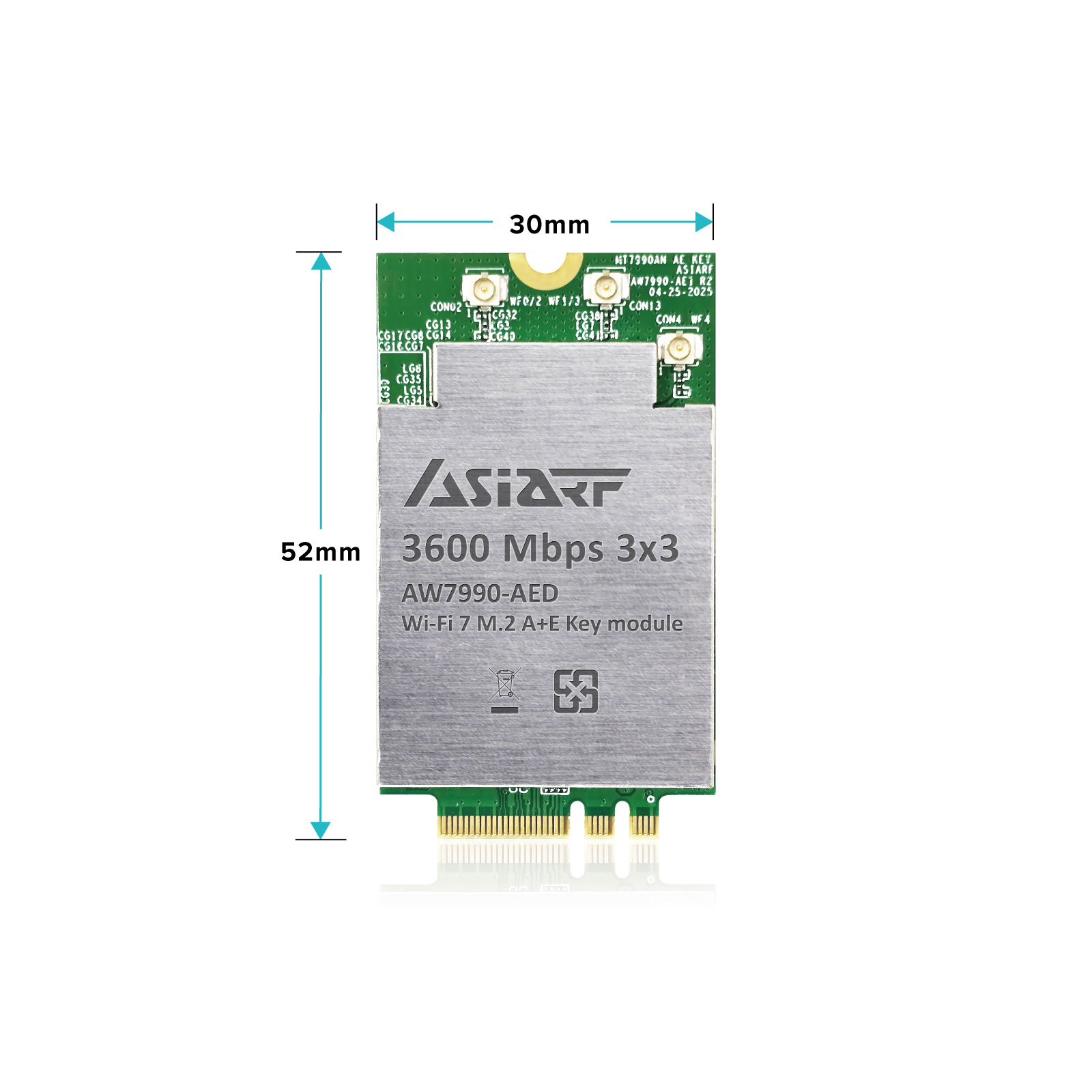

| Dimensions (mm) | 30(W)*52(L)*5.1(H)mm |
| Weight | TBD |
| Certification | TBD |
Package with Heatsink 30x40x25mm Aluminum material
Additional information
| Weight | 0.0255 kg |
|---|---|
| Dimensions | 3.0 × 5.1 × 1 cm |
