Description
Introducing the AP7988-002: High-Performance Wi-Fi 7 Development Platform with BE19000 Speed and Extended Range
The AP7988-002 is a cutting-edge Wi-Fi 7 development platform designed for high-performance networking. It features the MediaTek MT7988A, a quad-core ARM Cortex-A73 processor, ensuring robust processing capabilities for demanding applications.
Leveraging the exceptional capabilities of the MediaTek MT7996, the AP7988-002 delivers outstanding WiFi7 wireless performance, achieving speeds of up to 19,000 Mbps. This makes it an ideal solution for AI-driven communication and other bandwidth-intensive applications.
Extended Range and Coverage:
Equipped with a high-power amplifier front-end module, the AP7988-002 ensures extended wireless range, making it perfect for larger infrastructures and environments requiring robust connectivity.
Deleted:This development platform is designed to meet the demands of modern networking, providing reliable performance and extensive features for both residential and commercial applications.
Wi-Fi generation comparison overview
Why AsiaRF
- Flexible Product Portfolio
From low-power to high-performance modules, with standard and custom form factors—built to match diverse project requirements. - Proven Across Industries
Deployed in manufacturing, retail, energy, and smart agriculture, enabling reliable connectivity in real-world applications. - Quality You Can Trust
Every product undergoes rigorous validation and testing to ensure consistent performance and long-term reliability. - Engineering-Level Support
Our technical team provides responsive, end-to-end support—from design-in to deployment. - Optimized Cost Efficiency
Streamlined solutions and periodic promotions help reduce total cost of ownership without compromising performance.
Backed by strategic partnerships with leading chipset providers like MediaTek and Morse Micro, AsiaRF delivers future-ready wireless solutions with strong supply continuity and access to next-generation technologies.
About AsiaRF : Global Leader in Wi-Fi HaLow, Wi-Fi 7, and IoT Solutions : https://asiarf.com/about-asiarf/
Learn more on our blog : https://asiarf.com/category/blog/Setting New Standards for Sub-GHz Communication!
Or follow us on Linkedin : https://www.linkedin.com/company/asiarf/posts/?feedView=all
Features
- Wi-Fi7 IEEE802.11be High Throughput 19000 Mbps
- High Radio Power (Peak Condition)
- 2.4 GHz: MCS13, Peak power up to 22 dBm
- 5 GHz: MCS13, Peak power up to 19 dBm
- 6 GHz: MCS13, Peak power up to 17 dBm
- Operational Bandwidth Support
- 2.4 GHz: 20 / 40 MHz
- 5 GHz: 20 / 40 / 80 / 160 MHz
- 6 GHz: 20 / 40 / 80 / 160 / 320 MHz
WLAN
- IEEE 802.11 a, b, g, n, ac, ax, be compliant
- Frequency band: 2.4GHz
- Bandwidth: 20 and 40MHz
- 4T4R 4ss
- Frequency band: 5GHz
- Bandwidth: 20, 40, 80 and 160 MHz
- 4T4R 4ss
- Frequency band: 6GHz
- Bandwidth: 20, 40, 80, 160 and 320 MHz
- 4T4R 4ss
- Tri-Band Triple Concurrent (TBTC)
- PHY rate: up to 19000Mbps
- MU-MIMO TX and RX
- MU-OFDMA TX and RX
- STBC, LDPC, TX beamformer and RX beamformee
- Greenfield mode, mixed mode, and legacy mode
Security
- WFA WPA, WPA2, WPA3 personal, WPS2.0
QoS
- WFA WMM and WMM-PS
Standard
Wi-Fi 7 Development Platform AP7988-002
| CPU | MediaTek MT7988A Quad-core Arm Cortex-A73,1.8GHz processor |
| Memory | SPI-NAND Flash : 128Mb NOR Flash: 128Mb DDR4 RAM: 8Gb eMMC Storage: 8GB |
| Network Port | 1 x 10Gbit Ethernet Port 1 x 2.5Gbit Ethernet Port 4 x Gbit Ethernet Port |
| USB | 1x USB3.2 Port |
| M.2 Interface | 1x M.2 B Key Slot for 4G/5G WWAN Module 1x M.2 M Key Slot for memory card（Suitable for SMB applications） |
| Buttons | Reset button, boot Jumper |
| LEDs | Power status Led, 2.5GbE LED and RJ45 Led |
| DC Power | 12V/ 6.2A or 19V/ 3.9A |

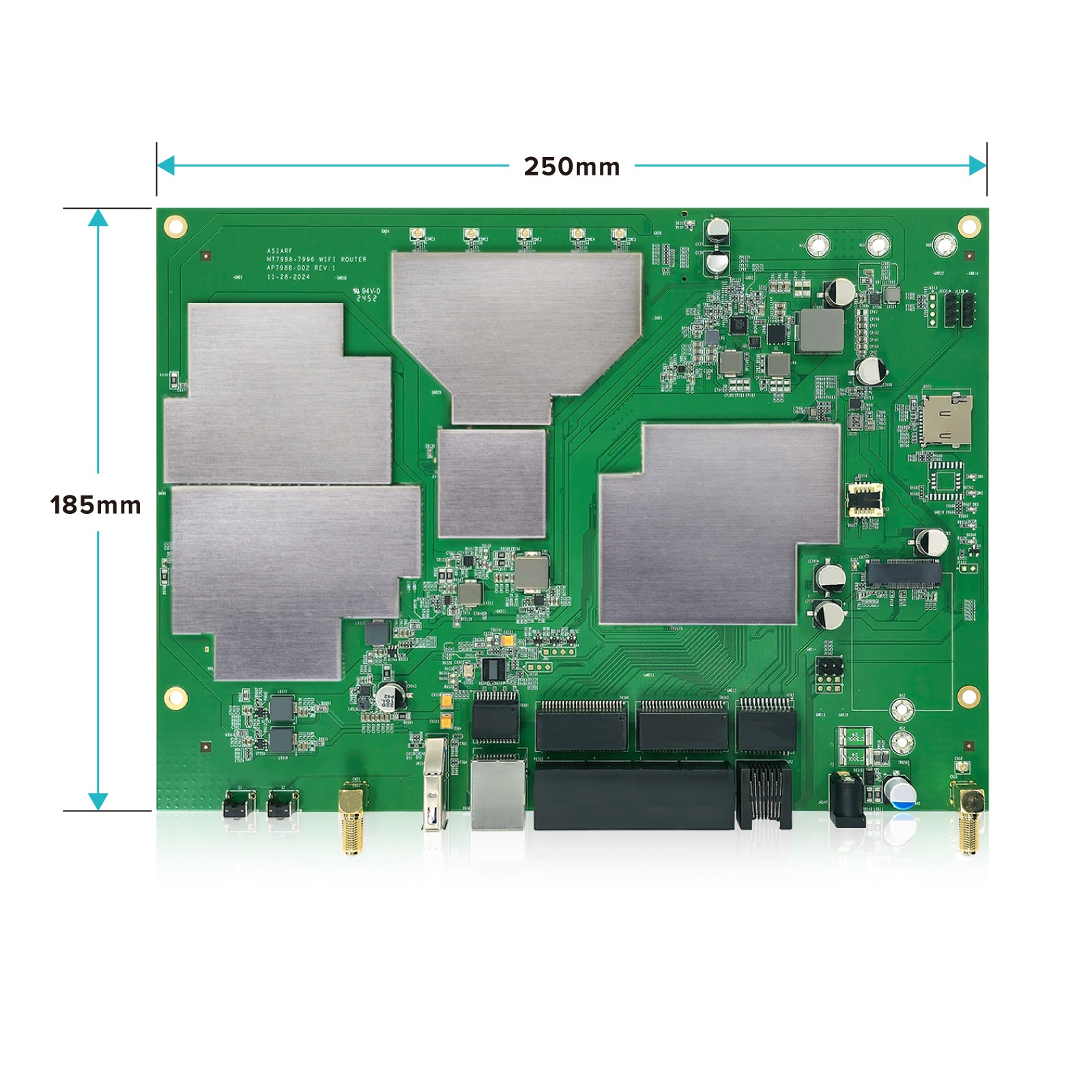

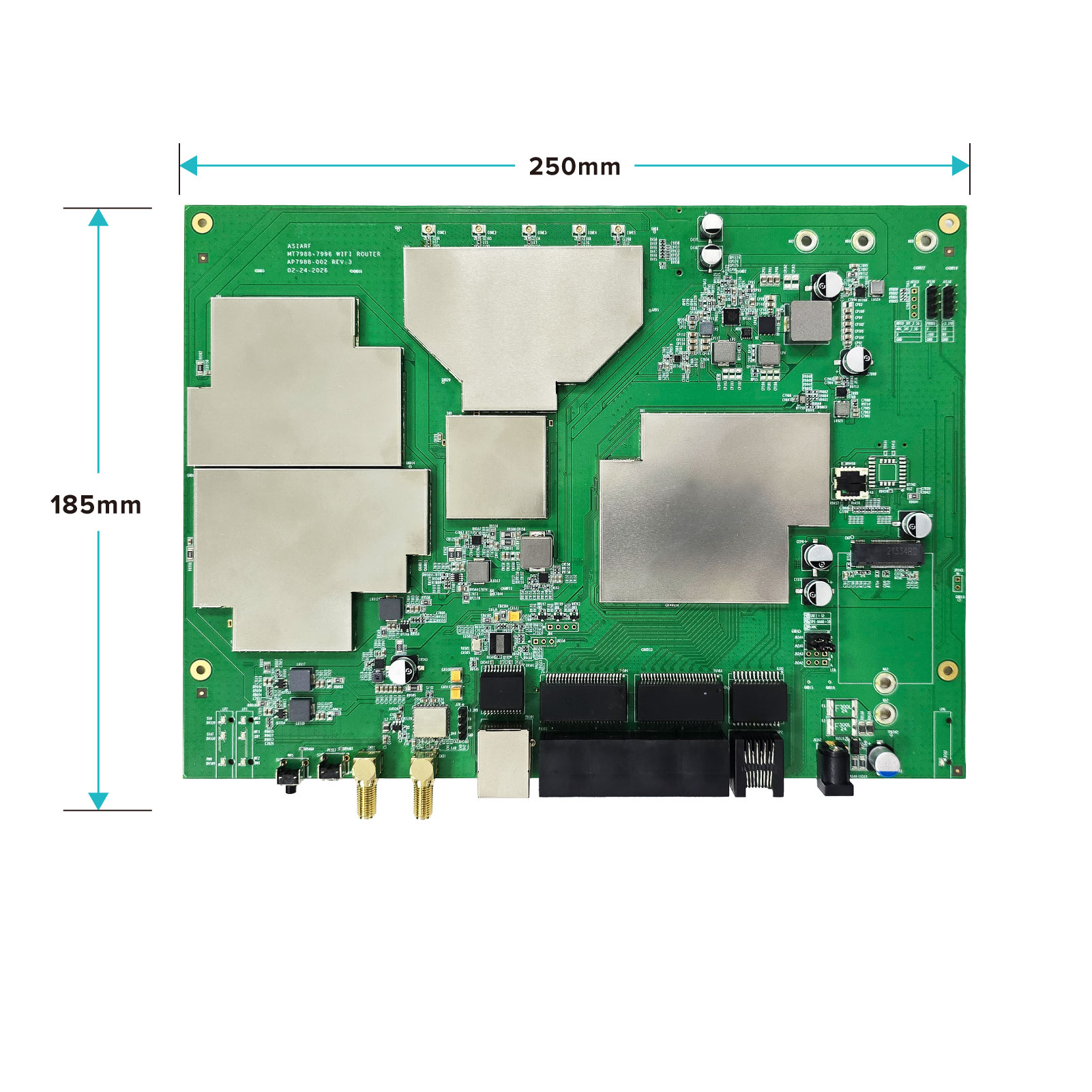

| Sizes | 250 x 185 mm |
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 17 × 14 × 3.5 cm |
