Wi-Fi Router board 11ac MT7621 RS232 RS485 DP7621-002

Original price was: $200.00.Current price is: $160.00.

DP7621-002 is a powerful Wi-Fi Router board by MT7621 with RS232 RS485, the best solution for Internet Service Router and Home Security IoT Gateway. By this Wi-Fi Router board with RS232 and RS485, you can implement super IoT solution to reach smart automation and AI cloud control.

Quantity Discount (%) Price
1 - 99 20 % $160.00
100+ 67.5 % $65.00
x

DP7621-002 a Wi-Fi Router board by MT7621A with RS232 RS485

DP7621-002 is a powerful Wi-Fi Router board by MT7621 with RS232 RS485, the best solution for Internet Service Router and Home Security IoT Gateway. By this Wi-Fi Router board with RS232 and RS485, you can implement IoT solution to reach smart automation and AI cloud control.

Main CPU MT7621A integrates a dual-core MIPS1004Kc (880MHz), HNAT/  HQoS/ Samba/ VPN accelerators, GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control). In the mean time provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic. These accelerators relief the CPU for other upper layer applications

AP7621-002 Wi-Fi Router board 11ac MT7621 RS232 RS485_size

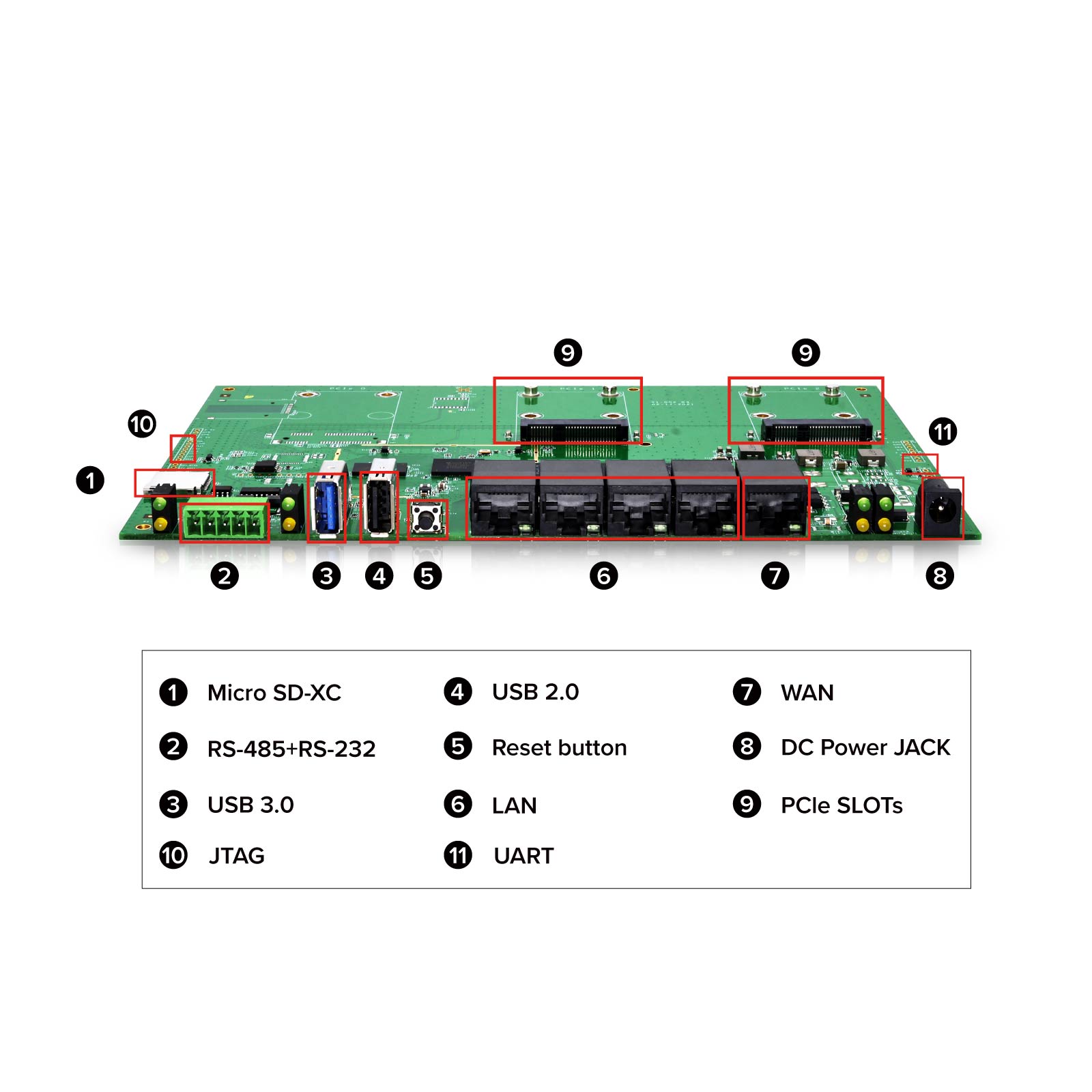

DP7621-002 Wi-Fi Router board 11ac MT7621 RS232 RS485

Learn more on our blog : From Wireless to IoT : AsiaRF’s Journey of Innovation

Or follow us on Linkedin

  • Mediatek MT7621A chipset
  • Flash SPI NOR16MB, DDR3 512MB 16bits BUS
  • 32 KB I-Cache and 32 KB D-Cache per core
  • 256 KB L2 Cache (shared by Dual-Core)
  • SMP capable
  • Single processor operation configurable Gigabit Switch
  • IPv4 routing, NAT, NAPT
  • IPv6 routing, DS-Lite, 6RD, 6to4, HW QoS
  • HNAT/ HQoS/ Samba/ VPN accelerators
  • Support boot from Flash
  • Mini PCIe, Micro SD-XC, USB, GPIOs, I2C, UART and GPIOs
  • 5 Giga Ethernet ports with Power over Ethernet (PoE) MDI transceivers
  • 16 hardware queues to guarantee the min/max bandwidth of each flow
  • Seamlessly co-work with HW NAT engine
  • 2Gbps wired speed HW Crypto Engine
  • Deliver 400~500 Mbps IPSec throughput Green
  • Intelligent Clock Scaling (exclusive)
  • Suitable with IEEE802.11ac MT7612E, MT7615, LTE, 3G mini PCIe cards
  • Powerful Wi-Fi and IoT Gateway like LoRa, Sigfox

MT7621A function diagram

MT7621A_diagram

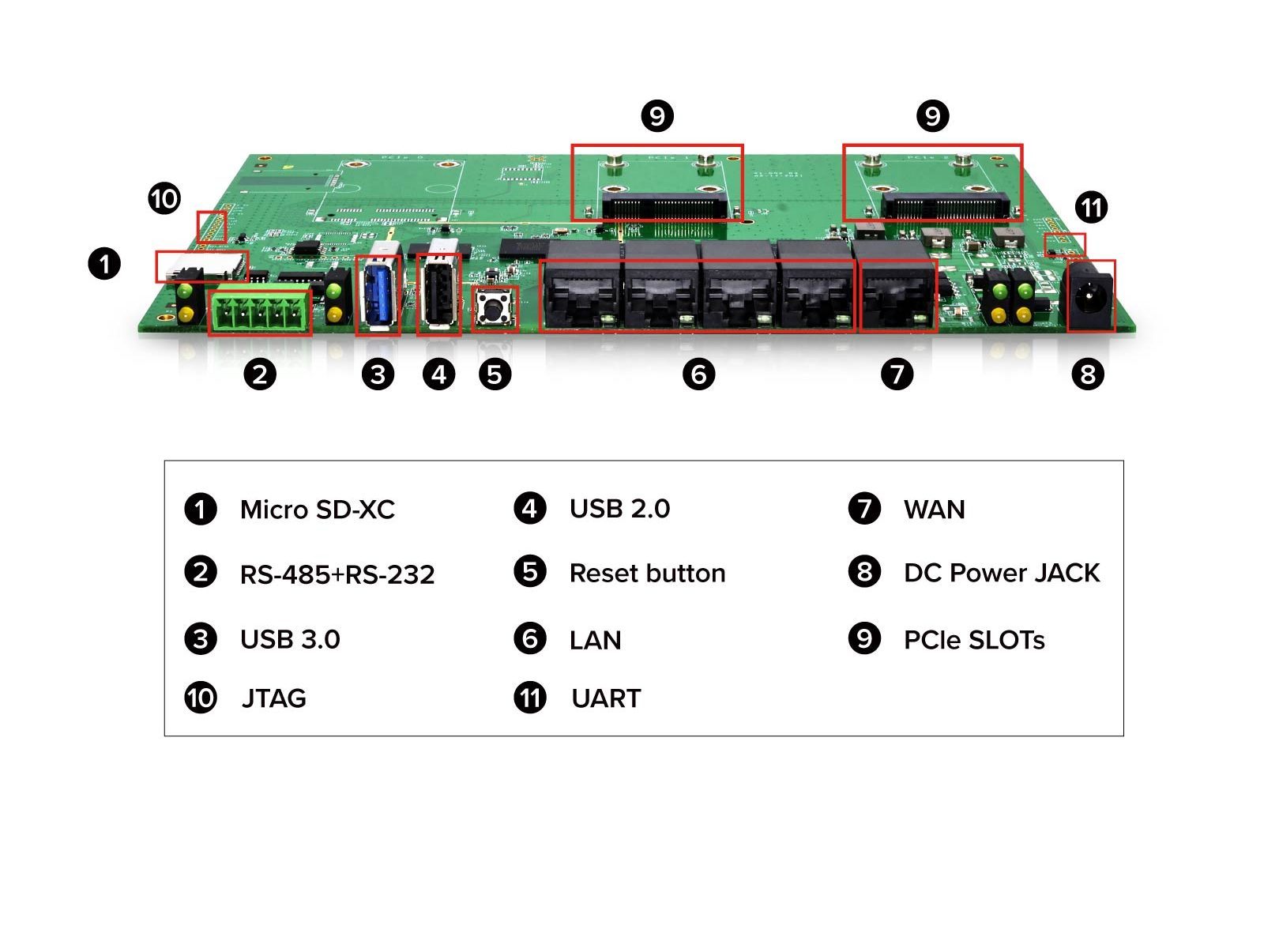

Board Main Interfaces:

3 x mini PCIe slots
(Combo PCIe n USB)
5 x Giga Ethernet Ports (PoE)
1 x Micro SD-XC 1 x USB 3.0
1 x USB 2.0 1 x GPS (Quectel L70B)
1 x I2C 1 x JTAG
1 x RS-485+RS-232 1 x UART



Hardware Features:

Standard IEEE 802.11 a/b/g/n/ac standards compliant
Wireless LAN Compatible with MT7612E, MT7615 802.11ac WAVE2
3G / 4G Compatible with mini PCIe card
Memory Flash is SPI SOP8 16MB
DDR3 is 512MB 16bits BUS
Interface 3 x mini PCIe slots
2 x Giga Ethernet Ports (PoE)
1 x Micro SD-XC
1 x USB 3.0
1 x USB 2.0
1 x GPS (Quectel L70B)
1 x I2C
1 x JTAG
Dimension 210 x 143 x 25 mm
Certifications FCC/CE IC by request
Power DC Power Jack form 9-15V / 9-48V(optional) Barrel D=2.0mm

IEEE 802.3f PoE 48V



SOFTWARE FEATURE

  • Support OPENWRT, MTK SDK

Network Features:

  • Video, Storage
  • DHCP Client/Relay/Server
  • Dynamic DNS
  • NTP Client
  • DNS Cache/Proxy
  • Firewall
  • MAC/IP/Port Filter
  • Virtual Server
  • DMZ
  • Content Filter



Weight 0.4 kg
Dimensions 21 × 14.3 × 2.5 cm

Weight 0.31 kg
Dimensions 25 × 16 × 3.5 cm
