Description

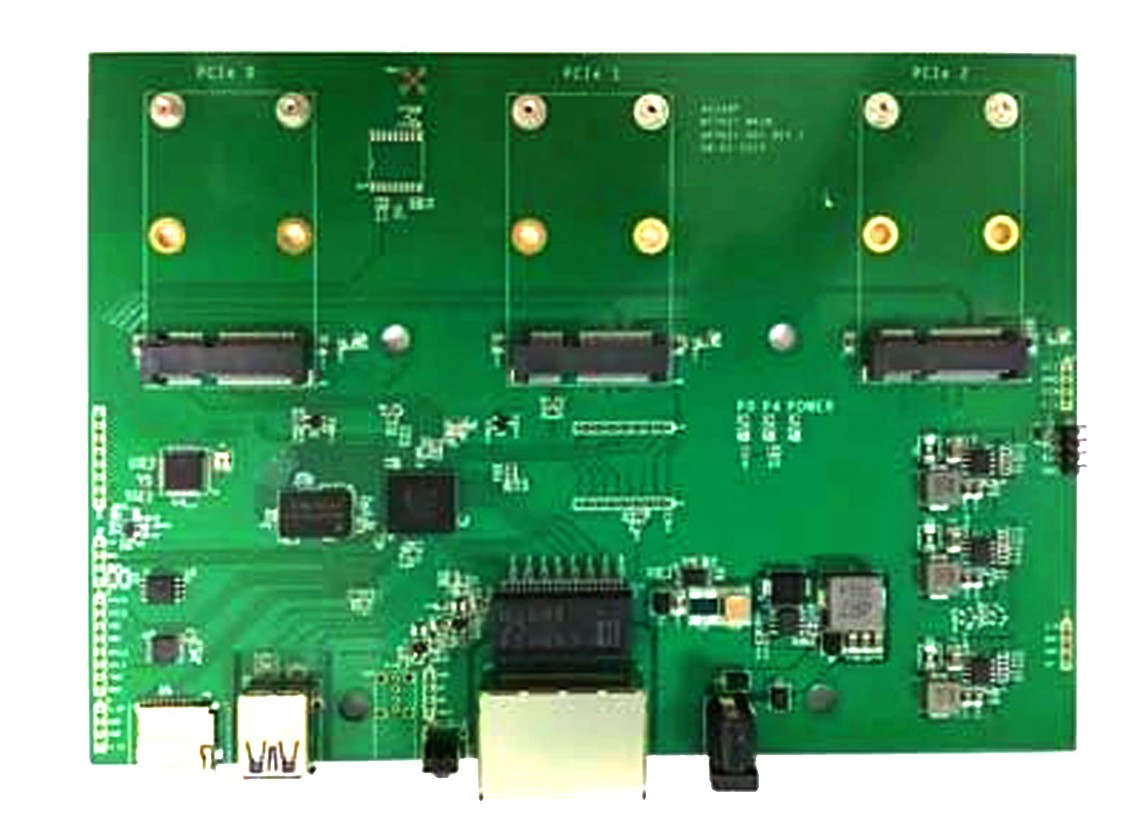

AP7621-001 is a Wi-Fi Router board with MT7621A integrates a dual-core MIPS1004Kc (880MHz)
for Enterprise grade with Giga Ethernets 3 mini PCIe USB 2.0 USB 3.0 GPS.
AP7621-001 is a 195.6 x 139.7 x 28 mm Wi-Fi Router board with MT7621A integrates a dual-core MIPS1004Kc (880MHz), HNAT/ HQoS/ Samba/ VPN accelerators, GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control). AP7621-001 combine with touch-panel, ZigBee, Z-Wave, LoRa to be an Internet Service Router and Home Security Gateway.
For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic. These accelerators relief the CPU for other upper layer applications.
Why AsiaRF
- Flexible Product Portfolio
From low-power to high-performance modules, with standard and custom form factors—built to match diverse project requirements. - Proven Across Industries
Deployed in manufacturing, retail, energy, and smart agriculture, enabling reliable connectivity in real-world applications. - Quality You Can Trust
Every product undergoes rigorous validation and testing to ensure consistent performance and long-term reliability. - Engineering-Level Support
Our technical team provides responsive, end-to-end support—from design-in to deployment. - Optimized Cost Efficiency
Streamlined solutions and periodic promotions help reduce total cost of ownership without compromising performance.
Backed by strategic partnerships with leading chipset providers like MediaTek and Morse Micro, AsiaRF delivers future-ready wireless solutions with strong supply continuity and access to next-generation technologies.
About AsiaRF : Global Leader in Wi-Fi HaLow, Wi-Fi 7, and IoT Solutions : https://asiarf.com/about-asiarf/
Learn more on our blog : https://asiarf.com/category/blog/Setting New Standards for Sub-GHz Communication!
Or follow us on Linkedin : https://www.linkedin.com/company/asiarf/posts/?feedView=all
Features
- Mediatek MT7621A chipset
- Flash SPI NOR16MB, DDR3 512MB 16bits BUS
- 32 KB I-Cache and 32 KB D-Cache per core
- 256 KB L2 Cache (shared by Dual-Core)
- SMP capable
- Single processor operation configurable Gigabit Switch
- IPv4 routing, NAT, NAPT
- IPv6 routing, DS-Lite, 6RD, 6to4, HW QoS
- HNAT/ HQoS/ Samba/ VPN accelerators
- Support boot from Flash
- Mini PCIe, Micro SD-XC, USB, GPIOs, I2C, UART and GPIOs
- 2 Giga Ethernet ports with Power over Ethernet (PoE) MDI transceivers
- 16 hardware queues to guarantee the min/max bandwidth of each flow
- Seamlessly co-work with HW NAT engine
- 2Gbps wired speed HW Crypto Engine
- Deliver 400~500 Mbps IPSec throughput Green
- Intelligent Clock Scaling (exclusive)
- Suitable with IEEE802.11ac MT7612E, MT7615, LTE, 3G mini PCIe cards
- Powerful Wi-Fi and IoT Gateway like LoRa, Sigfox
- MT7621A function diagram
SOFTWARE FEATURE
- Support OPENWRT, MTK SDK
Network Features:
- Video, Storage
- DHCP Client/Relay/Server
- Dynamic DNS
- NTP Client
- DNS Cache/Proxy
- Firewall
- MAC/IP/Port Filter
- Virtual Server
- DMZ
- Content Filter
Standard
Board Main Interfaces:
| 3 x mini PCIe slots | 2 x Giga Ethernet Ports (PoE) |
| 1 x Micro SD-XC | 1 x USB 3.0 |
| 1 x USB 2.0 | 1 x GPS (Quectel L70B) |
| 1 x I2C | 1 x JTAG |
Hardware Features:
| Standard | IEEE 802.11 b/g/n standards compliant |
| Wireless LAN | Compatible with MT7612E, MT7615 802.11ac WAVE2 |
| 3G / 4G | Compatible with mini PCIe card |
| Memory | Flash is SPI SOP8 16MB DDR3 is 512MB 16bits BUS |
| Interface | 3 x mini PCIe slots 2 x Giga Ethernet Ports (PoE) 1 x Micro SD-XC 1 x USB 3.0 1 x USB 2.0 1 x GPS (Quectel L70B) 1 x I2C 1 x JTAG |
| Dimension | 195.6 x 139.7 x 28 mm |
| Certifications | FCC/CE IC |
| Power | DC Power Jack from12V 2A Barrel D=2.0mm
IEEE 802.3f PoE 48V |
Additional information
| Weight | 0.29 kg |
|---|---|
| Dimensions | 22 × 15 × 3.5 cm |
