Wi-Fi HaLow
Sub-1GHz+2.4GHz, long-range, low-power, ideal for IoT with wide coverage and strong penetration.
Description
HaLowFly USB Dongle: Simple Plug-and-Play Wi-Fi HaLow Connectivity for Any Device
The HaLowFly USB dongle brings Wi-Fi HaLow connectivity to virtually any device. It supports all major operating systems, including:
- PC OSs: Windows, Linux distributions, Unix, macOS
- Mobile OSs: iOS, Android, HarmonyOS, KaiOS, BlackBerry, and more
How it works:
- Plug the HaLowFly dongle into your device.
- The system automatically detects it as a wired Ethernet connection—no drivers needed.
- Open any web browser and go to 192.168.7.1.
- Scan for available Wi-Fi HaLow access points (APs), enter the password, and connect.
Speed of use:
- Initial connection: ~10 seconds
- Reconnection after unplug/plug: ~10 seconds
HaLowFly makes Wi-Fi HaLow as easy to use as plugging in a USB drive—ideal for PCs, laptops, tablets, and even mobile devices without built-in HaLow support.
Typical Applications:
- Smart home automation and sensor networks requiring long wireless range and low energy use
- Industrial IoT for large facilities requiring robust, penetrating wireless signals
- Remote monitoring and asset tracking with extended battery life requirements
- IoT gateways and network extender devices demanding secure, scalable wireless connectivity
Comparison Chart
| Product Name | Advantages | Setup/Boot Time | OS Support | Key Features & Specs |
|---|---|---|---|---|
| HaLowFly | Fastest setup; broad OS support; ideal for IoT deployments | ~10 sec (automatic) | Windows, Linux, Unix, macOS, iOS, Android, OpenWRT | Plug-and-play, no driver needed; browser configuration; remote; Type-C connection; WPA3 |
| Brand A Dongle | Flexible usage; dual mode; external antenna | ~1–2 min (manual) | Possible Windows/Linux (OpenWRT) | Type-C; i.MX6; NRC7292; AP/STA mode; SMA |
| Brand B Dongle | High throughput; OEM/ODM friendly; strong | ~1–2 min (driver) | Linux via SDK | Type-C/SDIO/SPI; development kit |
| Brand C Dongle | Secure; remote; suitable for industrial environments | ~1 min (driver) | Linux driver (kernel 5.10+) | WPA3; USB-A; SMA; rugged |
| Brand D Dongle | Multi-functional connectivity; easy deployment | ~1–2 min (single use) | Not specified (likely Windows/Linux) | Type-C, Ethernet, 2.4 GHz; 902–928 MHz; plug-and-play |
Highlights & Key Differentiators
- HaLowFly remains the most user-friendly option: true plug-and-play design and broad OS support make it ideal for rapid deployment across a wide range of devices.
- HaLowFly offers strong security and advanced features, such as WPA3, making it suitable for environments with higher security requirements.
- HaLowFly’s versatile connectivity (Type-C, Wi-Fi) combined with browser-based remote configuration provides an irreplaceable advantage in fast deployment, flexible management, and cross-platform compatibility, making it perfect for IoT applications.
Features
- Wi-Fi Standard: IEEE 802.11ah (Wi-Fi HaLow) powered by the Morse Micro MM6108 chipset
- Frequency Band: Sub-1 GHz spectrum (around 850-950 MHz) optimized for long-range IoT connectivity
- Data Rate: Supports up to 32.5 Mbps with advanced 64-QAM (MCS7) modulation for high spectral efficiency, now is 16Mbps.
- Long-Range Coverage: Coverage up to 1 km or more in line-of-sight conditions, much farther than traditional 2.4 GHz/5 GHz Wi-Fi
- Low Power Consumption: Ultra-low power design ideal for battery-operated IoT devices, supporting extended sleep modes
- Connectivity Interface: USB Type-C options available for easy integration with desktops, laptops, and embedded devices
- Security: WPA3 with SAE and OWE encryption ensures robust, secure wireless communication

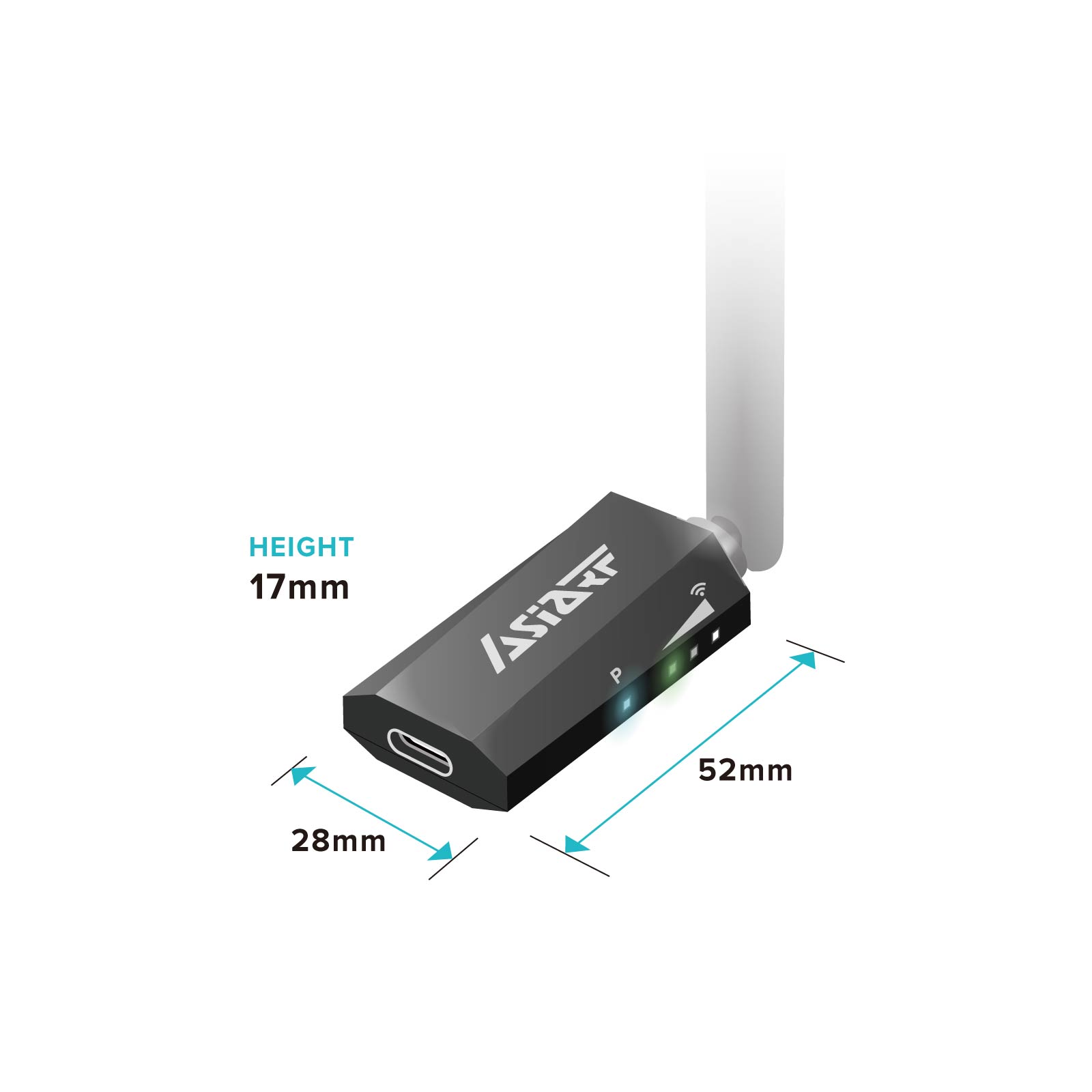

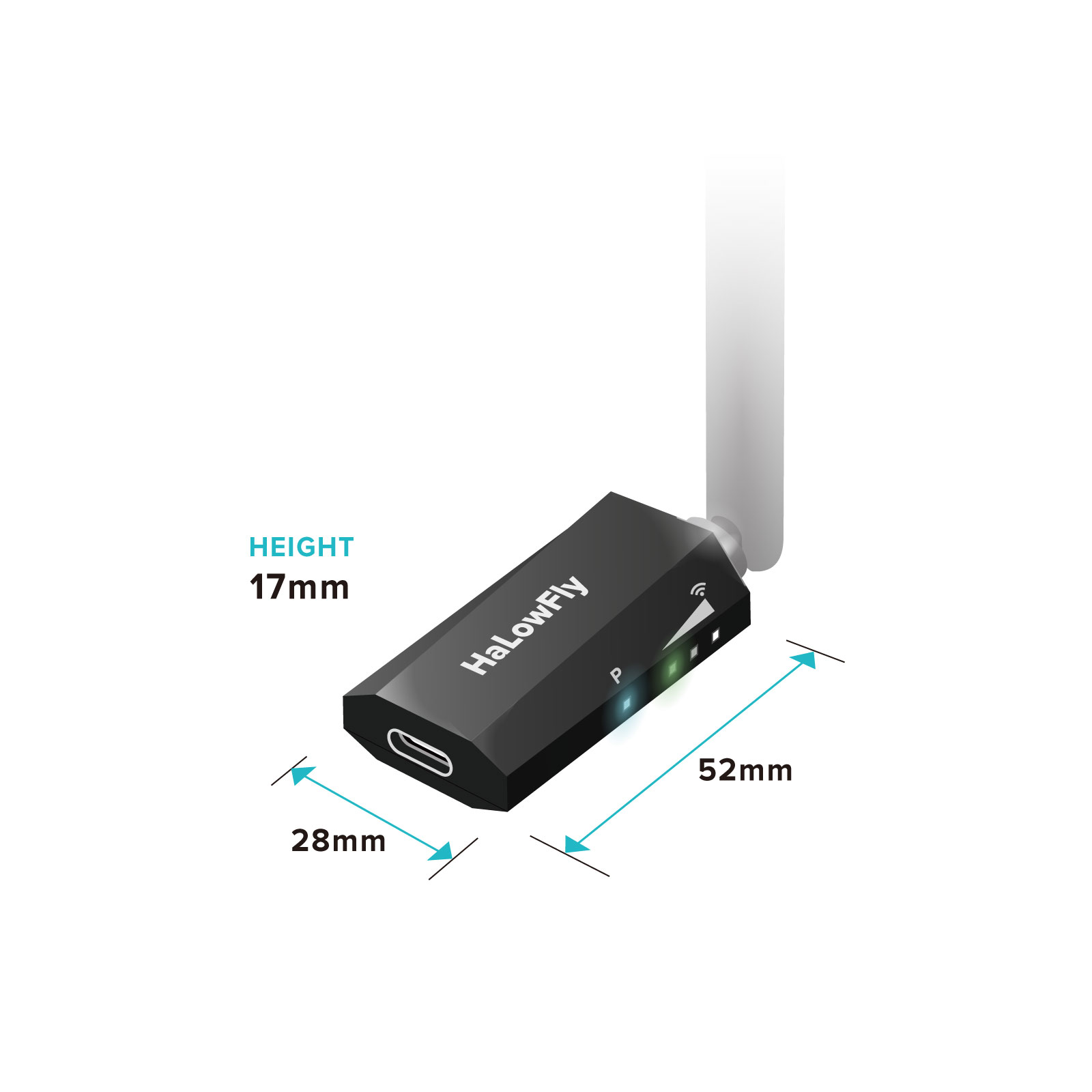

- Compact Design: Small form factor USB dongle with external antenna support via SMA connector (model dependent)
- Operating Temperature: Designed to operate reliably from -25°C to 85°C or broader ranges depending on design
- Compatibility: Supports Windows, Linux, Android, and Apple OS with driver free
- Additional Multi-Technology Support: Designed for use alongside Wi-Fi, BLE, and LoRa for multi-radio IoT deployments
- Performance Highlights:
- Fast Link Time: Takes approximately 10 seconds from power-on to establish a stable link, supporting rapid IoT sensor and device deployments
- Driver Support:
- Free driver is provided by AsiaRF, including compatible with Linux, Windows, and other platforms.
Drivers support USB plug-and-play functionality and can be easily
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 15 × 10 × 1 cm |
| Select quantity | 1, 3, 5, 10 |
| Country Standards | US, JP, EU |
