Wi-Fi HaLow LoRa Omni Antenna 5dBi ANTOM91504004001
AsiaRF offers the Wi-Fi HaLow Fiberglass Antenna, which operates in the 900MHz~930MHz range.
The ANTOM91504004001 Fiberglass antenna is a 900-930 MHz omni-directional antenna. This antenna is housed in a UV-protected, rugged fiberglass enclosure to provide maximum protection against extreme weather conditions. It features an N female connector and sleeve that will not oxidize. Included is a heavy-duty, stainless steel mounting bracket for pole mounting.
Our fiberglass antenna is designed to give you the best performance and is perfect for remote mounting in hard-to-reach signal areas.
Learn more on our blog : From Wireless to IoT : AsiaRF’s Journey of Innovation
Features
- Typical applications include 900-930MHz frequency band where high gain and wide coverage is desired.
- This simplifies installations since the same antenna can be used for a wide array of outdoor wireless applications where wide coverage is desired.
Standard
| Frequency | 900~930 MHz |
| Impedance | 50Ω |
| VSWR | ≦2.0 |
| Gain | 4-5dBi |
| Polarization | Vertical |
| Connector Type | 1 Port, N-Type Female |
| Temperature | -55° to +60° C (-67° to +140° F) |
| Color | White |
| Weight | 400 g |
| Material | Fiberglass |
| Max power | 50W |
Additional information
| Weight | 1.5 kg |
|---|---|

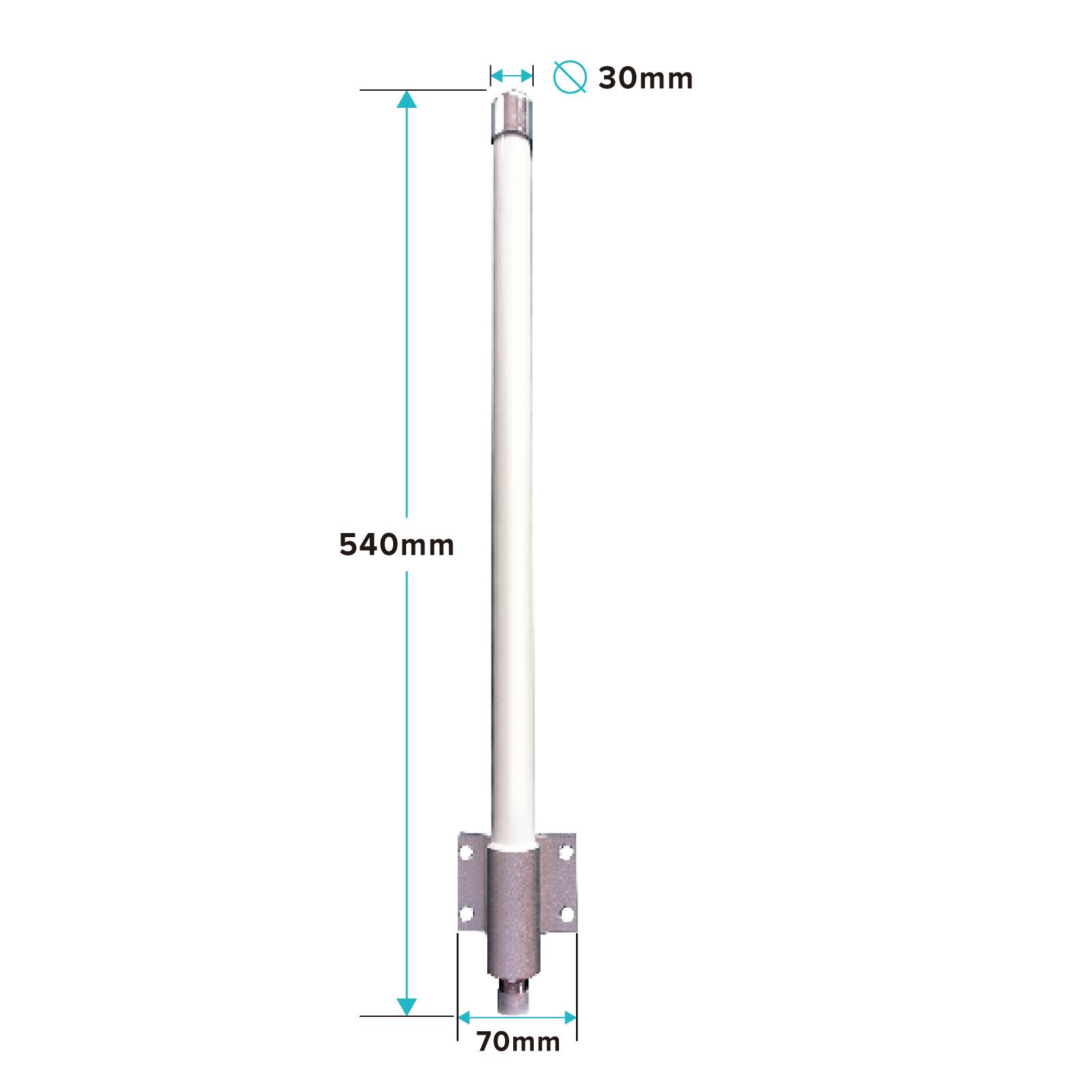

| Dimensions | 63 × 10 × 10 cm |
