Description
Upgrade to Wi-Fi 7 with Our Simplified Connectivity Package
Take your wireless performance to the next level with our streamlined bundle: the AW7991-AE2 Wi-Fi 7 M.2 A+E Key Module, high-performance coaxial cables, and dual-band 2.4/5GHz antennas — all selected to simplify integration and maximize speed.
Package detail
 |
Module: AW7991-AE2
1 x AW7991-AE2 11be 2×3 DBDC 5000Mbps Wi-Fi 7 M.2 A-E Key Module: AW7991-AE2 is a high-performance Wi-Fi 7 BE5000 module based on MediaTek MT7991, supporting 2.4GHz 2×2 and 5GHz 3×3 wireless connectivity.
|
 |
Cable: Coaxial Cable 1.13 diameter SMA RP IPEX Pigtail CN132086R0815001
3 x Precision-Engineered Coaxial Cables CN132086R0815001: Ensure optimal signal transmission with these coaxial cables, featuring SMA RP to IPEX connectors, designed for minimal signal loss and maximum reliability. |
 |
Antenna： Wi-Fi Antenna Dipole, dual bands 2.4/5GHz 5dBi ANTS245005002M01
3 x Wi-Fi Antenna Dipole dual bands 2.4/5GHz 5dBi 195mm ANTS245005002M01: This Wi-Fi antenna operates across dual bands with frequencies spanning 2.4 to 2.5GHz and 5.1 to 5.8GHz. Ideal for boosting connectivity in wireless communication systems. |
This bundle is designed for buyers who seek the convenience of a complete, high-quality wireless networking setup. Perfect for both commercial and technical projects, it offers exceptional performance and ease of integration. Upgrade your wireless capabilities today!
AW7991-AE2 is a High-Performance Wi-Fi 7 BE5000 Module with MediaTek MT7991 Chipset.
AW7991-AE2 is an Wi-Fi 7 BE5000 module with MediaTek MT7991 chipset supports Wi-Fi 7 technology and feature IEEE802.11 a/ b/ g/ n/ ac/ ax/ be compliant, 2.4GHz 2×2 2ss,5GHz 3×3 3ss BE5000 Wi-Fi subsystem. The MT7991 offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.
The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7996AV is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance at any time and in any circumstances.
Coaxial Cable 1.13 diameter SMA RP IPEX Pigtail CN132086R0815001 | Description
The CN132086R0815001 is a precision-engineered Coaxial Cable with a 1.13 diameter, featuring SMA RP to IPEX connectors. This pigtail cable is designed for optimal performance in RF applications, offering reliable connectivity and minimal signal loss. It’s an ideal choice for both commercial and technical projects requiring high-quality RF cabling. It is recommended to pair this with the AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module. Click here to learn more about the AW7916-NPD.
Wi-Fi Antenna Dipole, dual bands 2.4/5GHz 5dBi ANTS245005002M01 | Description
This Wi-Fi antenna with a dipole design that supports dual bands at 2.4/5GHz. The frequency range covers 2.4 – 2.5GHz and 5.1 – 5.8GHz, ensuring versatility and compatibility with a wide range of devices and network configurations.
With a gain of 4dBi at 2.4GHz and 5dBi at 5GHz, the antenna enhances signal strength and coverage, contributing to improved overall network performance.
This antenna is ideally paired with the AW7991-AE2 Wi-Fi 7 M.2 A-E key Module.
Wi-Fi generation comparison overview
Still not familiar with Wi-Fi 7? Click here.
Features
WLAN
- IEEE802.11a/b/g/n/ac/ax/be compliant
- Frequency band2.4GHz
-Bandwidth:20/40MHz
-2T2R 2ss - Frequency band5GHz
-Bandwidth:20/40/80/160MHz
-3T3R 3ss - Dual-Band Dual Concurrent (DBDC)
- Supports up to 4096-QAM
- Data rate of up to 688Mbps for 40MHz channel in 2.4Ghz and 4323Mbps for 160MHz in 5GHz mode
- Integrated power detector to support per packet Tx power control
- Multi-user multiple input multiple output (MU-MIMO) for Tx and Rx
- Multi-user Orthogonal Frequency-Division Multiple Access (MU-OFDMA) for Tx and Rx
- Support STBC, LDPC, Tx beamformer and Rx beamformee
- Support greenfield mode, mixed mode, and legacy mode
Platform
- 32bit RISC-V MCU for Wi-Fi protocol and Wi-Fi offload
- Embedded SRAM and ROM
- PCIe3.0 interface with 2-lane
Security
- WPA3, WPA2, WPA personal, WPS 2.0
QoS
- WFA WMM and WMM-PS
Standard
|
Wi-Fi 7 AP Module M.2 AE Key BE5000 AW7991-AE2 | Specification |
| Chipset | MT7991A with MT7976C |
| Memory | 8M byte |
| Host Interface | M.2 A-E Key interface with PCIe 3.0 |
| Operating Voltage | DC 3.3V ± 5% |
| Power Consumption | 11.5W |
| Wireless | 2.4GHz 2T2R 802.11b/g/n/ac/ax/be
5GHz 3T3R 802.11a/n/ac/ax/be |
| Frequency Range | 2.4GHz: 2.412~2.472GHz
5GHz: 5.15~5825GHz |
| Channel Spectrum Widths | Supports 20/40MHz at 2.4GHz
Supports 20/40/80/160MHz at 5GHz |
| Antenna | External Antenna connector (IPEX) x5 |
| Operating System | Linux |
| Environmental Temperature | Operating:-10°C to 70°C, Storage:-20°C to 90°C |
| Environmental Humidity | Operating: 10% to 90%, Storage: Max. 90% |

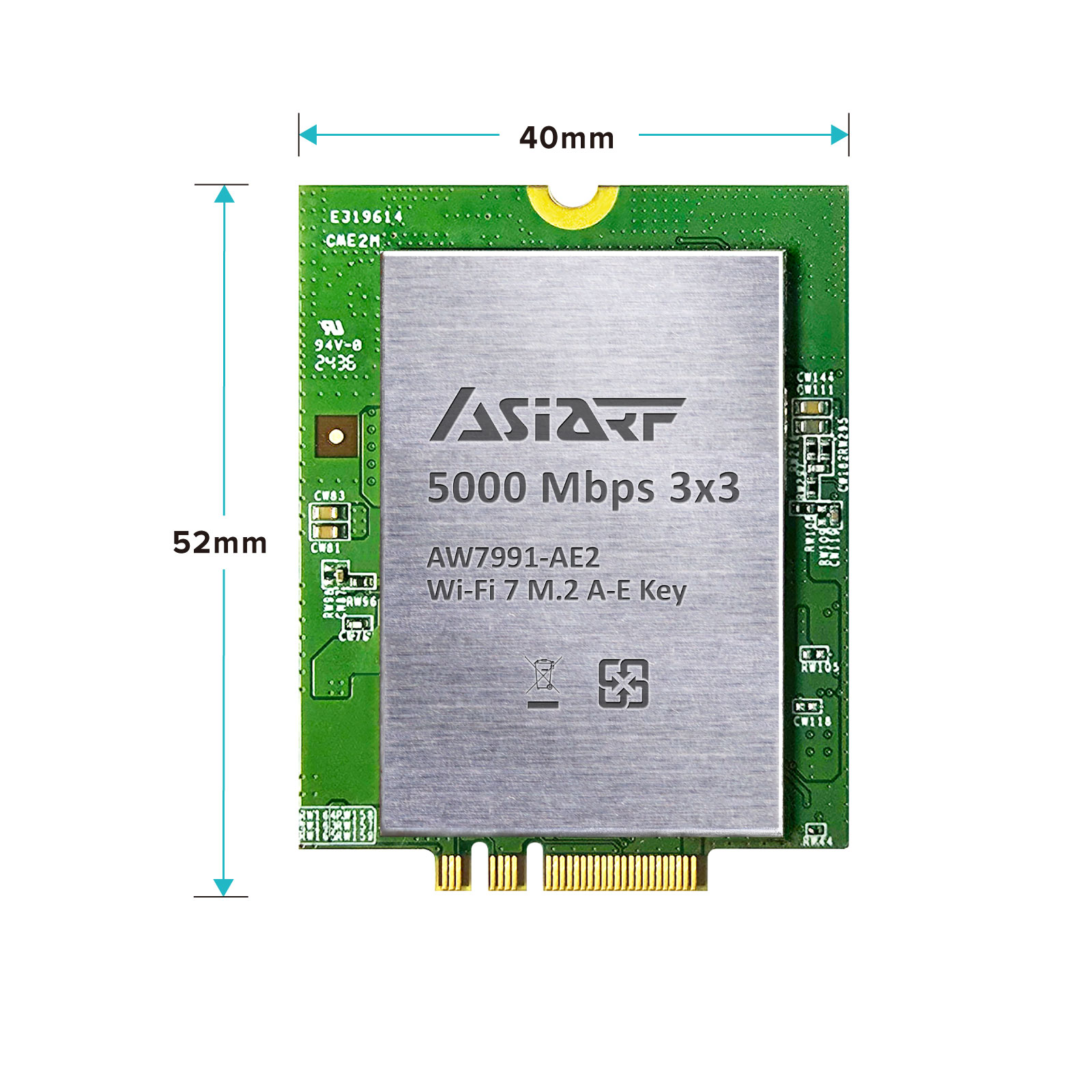

| Dimensions (mm) | 40(W) x 52(L) x 5.1(H) mm |
| Weight | TBD |
| Certification | TBD |
Package with Heatsink 30x40x25mm Aluminum material
|
ANTS245005002M01 Wi-Fi Antenna Dipole, dual bands 2.4/5GHz 5dBi | Specification |
|
Model No.
|
ANTS245005002M01
|
|
Frequency GHz
|
2.4 – 2.5GHz / 5.1 – 5.8GHz
|
|
DB gain
|
4 / 5 dBi
|
|
Power output
|
2 W
|
|
Polarization
|
Vertical
|
|
VSWR
|
<= 2.0
|
|
3dB Beam Width
|
26 degrees
|
|
Dimension Phi x L
|
13 x 195mm (SMA included)
|
|
Weight
|
33 g
|
|
Connector
|
SMA Male RP
|
|
Temperature
|
-20 to+80°C
|
|
Humidity
|
40% – 60% RH
|
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 15 × 3 × 1.5 cm |
