Description
Compact 802.11n Wireless AP Module AWM002 with High-Speed 150 Mbps and Advanced Security

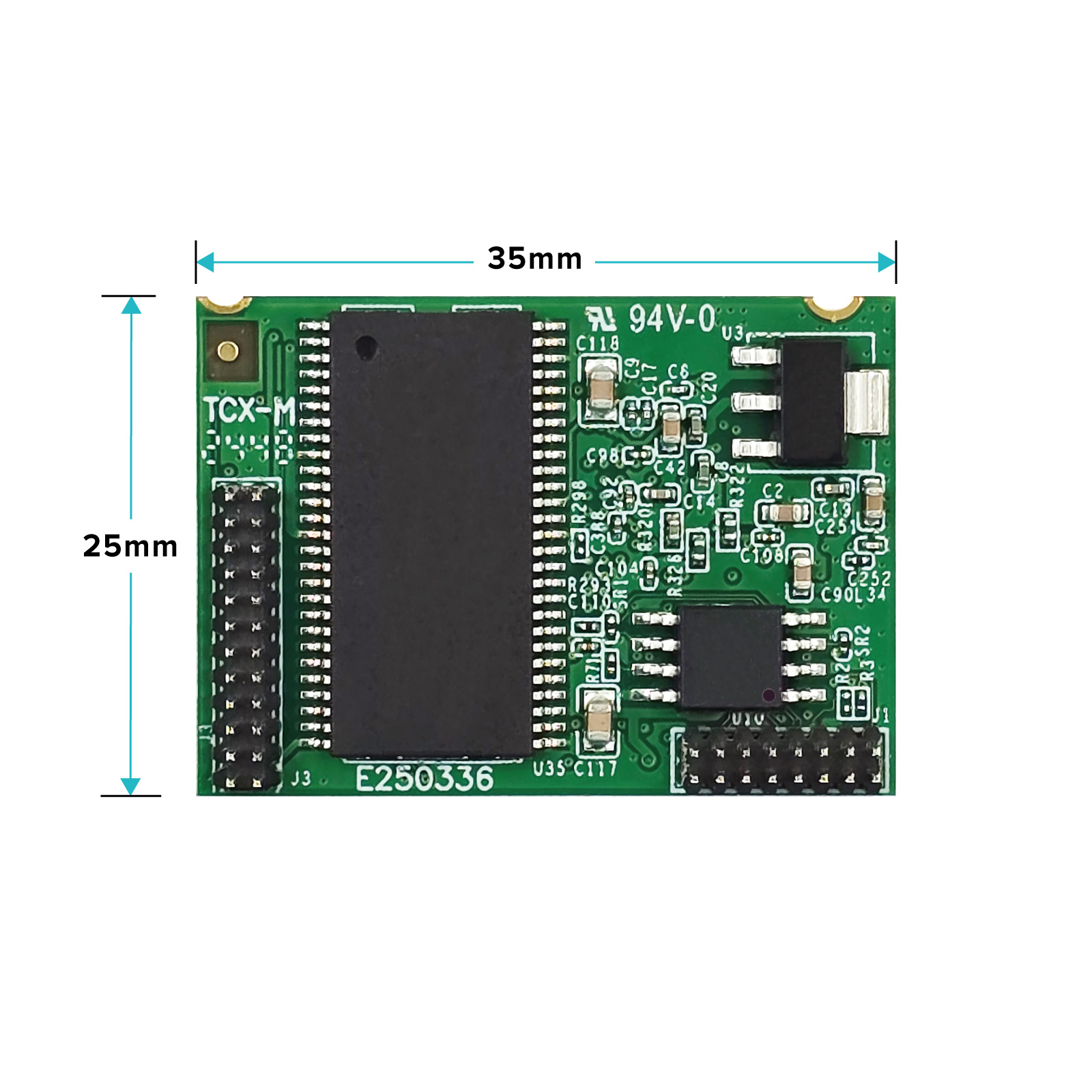

AWM002 is a compact 802.11n wireless AP module measuring 2.5 x 3.5 cm, supporting a maximum data transfer rate up to 150 Mbps. It delivers speeds three times faster than the legacy 802.11g standard, while offering a more competitive price, making it a cost-effective solution.
The module operates with a temperature below 60°C even at full speed, ensuring stable heat dissipation and reliable performance.
AWM002 supports both AP and Client modes, making it ideal for various wireless networking applications to share fast and stable Wi-Fi connections.
For security, it supports 64/128-bit WEP, TKIP, WPA, WPA2, AES encryption, and WPS, protecting data transmission and user privacy.
This versatile wireless module is widely used in IPTV, Set-Top Boxes (STB), media players, Femto base stations, XDSL, cable modems, industrial PCs, Ethernet switches, print servers, smart TVs, smartphones, and mobile CPE devices supporting WiMAX and LTE.
It is also suitable for Wi-Fi IP cameras and devices with embedded Wi-Fi storage functions.
Choose AWM002 wireless AP module for high-speed, stable, and secure Wi-Fi connectivity, enhancing your device’s overall network experience.
Network Features:
-
Supports Video and Storage applications
-
DHCP Client, Relay, and Server for flexible IP management
-
Dynamic DNS for consistent domain access with changing IPs
-
NTP Client for network time synchronization
-
DNS Cache/Proxy to speed up domain resolution
-
Comprehensive Firewall with:
-
MAC/IP/Port Filtering
-
Virtual Server for port forwarding
-
DMZ (Demilitarized Zone) setup
-
Content Filtering to restrict access
-
Wi-Fi Features:
-
Single transmit and receive path (1T1R)
-
Supports 20 MHz and 40 MHz bandwidth for higher throughput
-
Supports Multiple SSIDs for flexible wireless networks
-
Clock rate up to 400 MHz supporting legacy and high throughput modes
-
Supports WPS for easy and secure network setup
-
High-level security protocols including WEP 64/128, TKIP, WPA, WPA2 mixed, 802.1x, and 802.11i
-
802.1X Authentication with RADIUS Client support for enterprise-level security
-
QoS with WMM and WMM-PS to prioritize traffic and support power saving
Features
- Ralink RT5350 chipset with Interface USB, GPIO, UART and GPIOs.
- Support boot from Flash
- Data Rate up to 150Mbps
- Security: 64/128-bits WEP, TKIP,WPA, WPA2,AES,WPS
- Multi-modes: AP/Client
Standard
| Standard | IEEE 802.11 b/g/n standards compliant |
| Wireless LAN | 1T1R Mode |
| Antenna | iPex Connector *1 ( PIFA optional ) |
| Frequency Range | 2.400 ~ 2.4835GHz ( subject to local regulations) |
| Data Rate | 802.11n: up to 150Mbps 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| 30-pin Interface | USB*1 ( Host ) UART*1 GPIOs VCC/GND I2S I2C PCM |
| Number of Selectable Channels |
802.11n 20MHz/40MHz ; 802.11b/g USA, Canada (FCC):11 channels (2.412GHz~2.462GHz) Europe (CE): 13 channels (2.412GHz~2.472GHz) Japan (TELEC): 14 channels (2.412GHz~2.4835GHz) |
| Power consumption | Pin input: 3.3V 500mA, 1.2V 600mA(LDO) Total: 5V 550mA Above are the peak, average is like 5V 300mA, depend on the system design. |
| Coverage Area | Up to 6 times faster then existing 802.11 b/g products |
| Transmit Power(EIRP) | 11n HT40 MCS7 : +14 dBm 11b CCK: +20 dBm 11g OFDM: +16 dBm |
| Receiver Sensitivity | -66dBm at HT40 MCS7 -73dBm at 54Mpbs -86dBm at 11Mpbs |
| Dimension | 38×47 mm |
| Certifications | FCC/CE by request |
Additional information
| Weight | 0.0008 kg |
|---|---|
| Dimensions | 9.5 × 6.8 × 1.5 cm |
