Optimize Wireless Signals with our Antennas
WiFi Omni directional Antenna 5GHz 8dBi
WiFi Omni directional Antenna 5GHz 8dBi AO-5158-8
AO-5158-8 is a WiFi Omni directional Antenna 8dBi from 5185MHz to 5850MHz
- Typical applications include 5150-5850MHz WiFi frequency band where high gain and wide coverage is desired.
- Additional applications include IEEE 802.11b/g/n/ac wireless LANs, Bluetooth®, public wireless hot spot applications.
- This simplifies installations since the same antenna can be used for a wide array of outdoor wireless applications where wide coverage is desired.
| Frequency Range | 5150-5850 MHz |
| Polarization | Vertical |
| Gain(dBi) | 8 |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 15±1° |
| Impedance | 50Ω |
| VSWR | ≤ 1.8 |
| Maximum Power | 50W |
| Connector Type | 1 Port, N-Type Female |

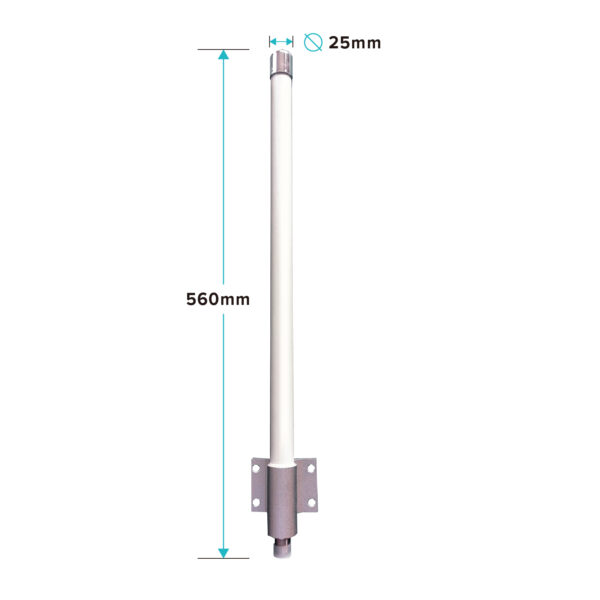

| Antenna Dimension(mm) | Φ 25*560 |
| Net Weight | 0.4 kg |
| Operating Temperature | -55° to +60° C (-67° to +140° F) |
| Radome Material | Fiberglass |
| Radome Color | White |
| Mounting Options | Pole Mounting |
Weight 1.4 kg
