Wi-Fi HaLow IoT Powerful Industrial Remote Control Kit with RS232 RS485 I2C SPI interfaces AWH575-MF1
The AWH575-MF1 is a cutting-edge Wi-Fi HaLow module designed to revolutionize industrial IoT (IIoT) connectivity. This powerful module combines the benefits of Wi-Fi HaLow technology with a rich set of interfaces, making it an ideal choice for a wide range of industrial applications.
Application Scenarios:
- Industrial Automation: Utilize the AWH575-MF1 for connecting sensors, actuators, and control systems in manufacturing environments, enabling real-time monitoring, predictive maintenance, and efficient process control.
- Building Automation: Integrate the module into building management systems for HVAC control, lighting automation, and energy management, ensuring optimal efficiency and comfort in industrial and commercial buildings.
- Remote Asset Monitoring: Deploy the AWH575-MF1 for monitoring and controlling remote assets, such as oil and gas pipelines, renewable energy systems, and water treatment facilities, ensuring reliable data transmission over long distances.
- Logistics and Supply Chain: Implement the module for tracking and monitoring shipments, vehicles, and warehouse assets, optimizing logistics operations and improving supply chain visibility.
- Agriculture and Farming: Utilize the AWH575-MF1 for precision farming applications, including soil moisture monitoring, livestock tracking, and greenhouse control, enhancing productivity and sustainability in agricultural settings.
The AWH575-MF1 Wi-Fi HaLow module is a versatile solution that empowers developers and industrial IoT professionals to create innovative and efficient applications. With its long-range, low-power capabilities, and robust communication interfaces, it stands out as a premier choice for modern industrial connectivity needs.
Features
1. Long-Range Connectivity
-
Extended Range: Operating in the sub-1 GHz frequency band, the AWH575-MF1 offers connectivity over distances exceeding 1 km, ideal for large industrial sites and remote monitoring applications.
-
Overcomes Range Limitations: Surpasses the range limitations of traditional short-range communication technologies like Wi-Fi and Bluetooth Low Energy (BLE).
-
Long-Distance Wireless Network Capability: Allows the construction of long-distance wireless networks suitable for M2M communications.
2. Power Efficiency
-
Low Power Consumption: Designed for energy efficiency, this module supports long battery life for devices, enabling multi-year operation in remote locations without frequent maintenance.
3. Device Capacity and Networking
-
High Device Capacity: Capable of supporting thousands of devices simultaneously, the AWH575-MF1 is perfect for dense IIoT networks, such as smart factories and industrial automation systems.
-
Enables Various M2M Networks: Facilitates the formation and utilization of M2M networks, such as smart grids and sensor networks, through long-range, serial-based wireless communication.
4. Communication Interfaces and Integration
-
Robust Communication Interfaces: The module features a variety of communication interfaces, including RS485, RS232, I2C, and SPI, allowing seamless integration with various industrial devices, sensors, and controllers.
-
Wi-Fi HaLow Integration: Incorporates Wi-Fi HaLow technology to enable wireless communication for devices.
-
Support for RS232 RS485 Signals: Provides connectivity for equipment supporting RS232/RS485 signal protocols.
5. Communication Speed
-
High Communication Speeds:
-
Wired RS232/RS485 sections support speeds up to 921.6kbps.
-
Wireless Wi-Fi HaLow sections support speeds up to 10Mbps.
-
Standard

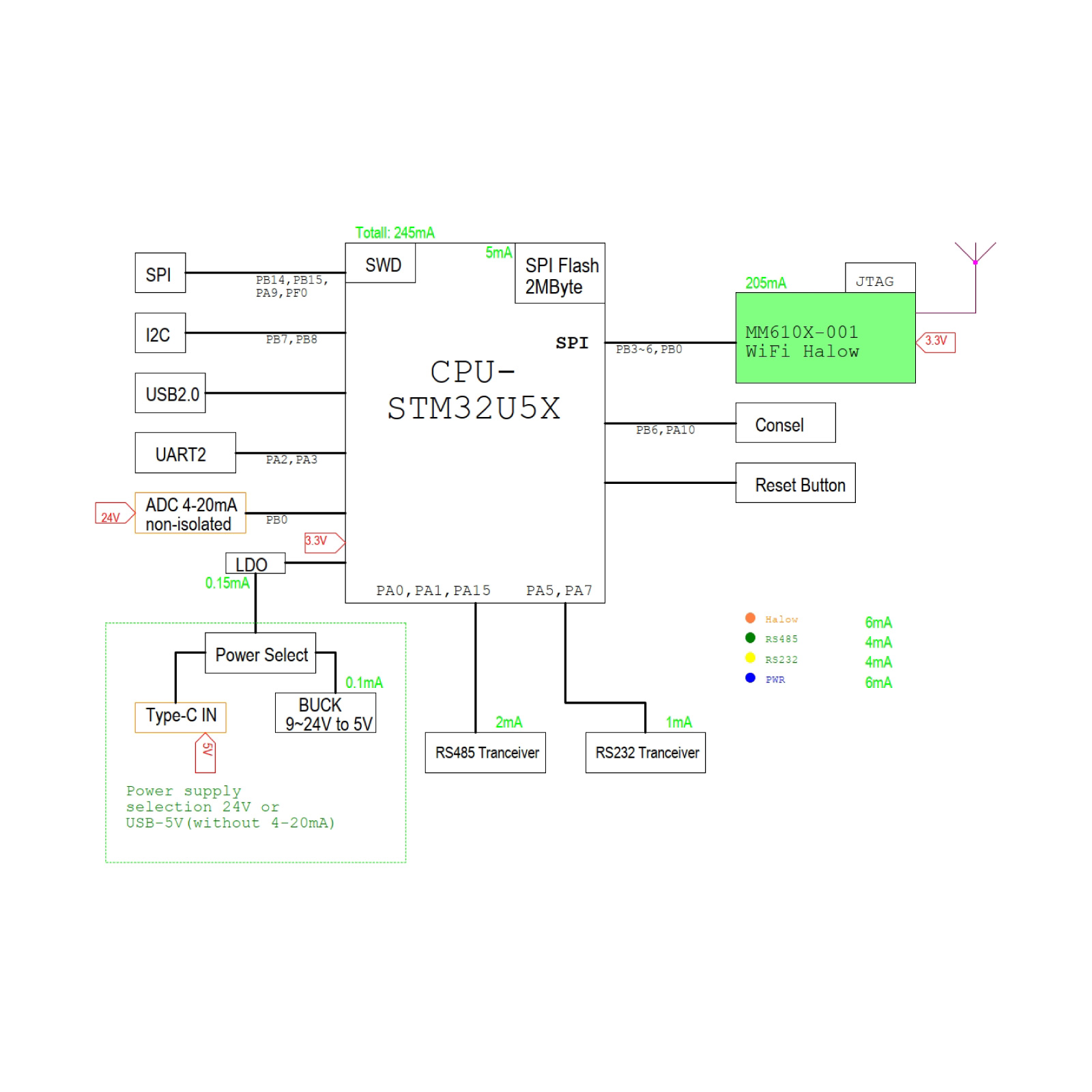

MCU
| MCU P/N | STM32U585CIT6Q |
| Internal Memory | 2 MB Flash memory, 786 KB SRAM |
| Interface | SPI, I2C, UART1, UART2, SWD(serial-wire debug) |
Wi-Fi HaLow
| Antenna | Dipole antenna via iPEX conector |
| Compatibility | IEEE 802.11ah |
| Frequency Range | US：902-928 MHz EU：863-865 MHz JP：916.5-927.5 MHz NZ/AU：915-928 MHz (Initial release supports US band only. More regions coming soon.) |
| Channel bandwidth | US：1/2/4/8 MHz EU：1 MHz JP：1/2/4 MHz AZ/AU：1/2/4/8 MHz |
| Data Rate | Single-stream max data rate of 10 Mbps |
| Modulation | BPSK/QPSK/16 QAM/64 QAM |
| Transmit Power | US：18 +/-dBm@MS0 EU：14 dBm@MS0 JP：13 dBm@MS0 AZ/AU：18 +/-dBm@MS0 |
| Wireless Security | AES encryption engine Hardware support for SHA1 and SHA2 hash functions (SHA-256, SHA-384, SHA-512) WPA3 including protected management frames (PMF) Opportunistic Wireless Encryption (OWE) |
Serial Communication
| RS-485 | |
| Data Signals | Data+, Data-; |
| Protocol | Modbus RTU, Modbus ASCII |
| Baud Rate | 9600bps~115200 kbps |
| RS-232 | |
| Data Signals | TxD,RxD |
| Baud Rate | 9600bps~115200 kbps |
| SPI | |
| Data Signals | MISO,MOSI,SCK,SS |
| Protocol | half-duplex, full-duplex, simplex synchronous |
| I2C | |
| Data Signals | SDA, SCL |
| Baud Rate | Up to 100 kbps (Standard mode) Up to 400 kbps (Fast mode) |
Analog Peripherals(ADC)
| Data Signals | ADC (12-bits) |
| Operating voltage (VDDA) | 1.62 to 3.6 V |
| ADC Clock Frequency | 0.14 MHz(Min)~55MHz (Max.); 1.62V ≤ VDDA ≤ 3.6V |
| ADC Clock Duty Cycle | 45% (Min)~55% (Max) |
| Sampling Rate | 0.01(Min)~2.75(Max) Msps; Resolution=12bits 0.012(Min)~3.05(Max) Msps; Resolution=10bits 0.014(Min)~3.43(Max) Msps; Resolution=8bits 0.0175(Min)~3.92(Max) Msps; Resolution=6bits |

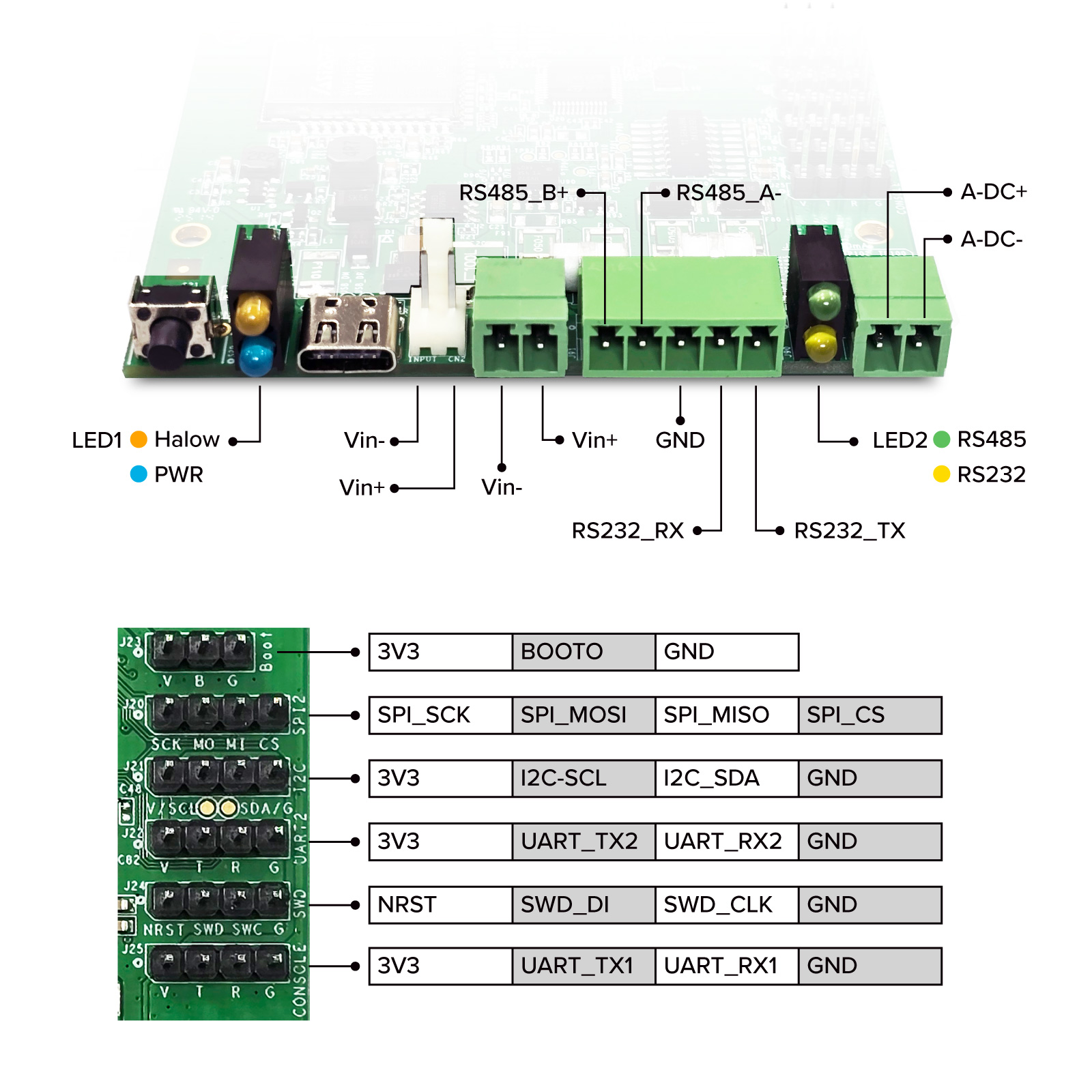

I/O Interface
| Ports | 1 x RS-232 1 x RS-485 1 x ADC |
| Port Connector Type | Terminal block |
Power Parameters
| Input Voltage | 5V VDC or 9 to 24V DC (Option), If Vin=24V the ADC not to use |
| Power Connector | USB Type-C or PLUG IN TYPE with RS-485 TERMINAL BLOCK or KK2547 |
| Power Consumption | 10W max. |
| USB Type C | 5VDC@2A |
LED Indicator
| Power | On/Off, Color:Blue |
| Wi-Fi HaLow | Link/Active, Color: Orange |
| RS-485 | Active, Color: Green |
| RS-232 | Active, Color: Yellow |

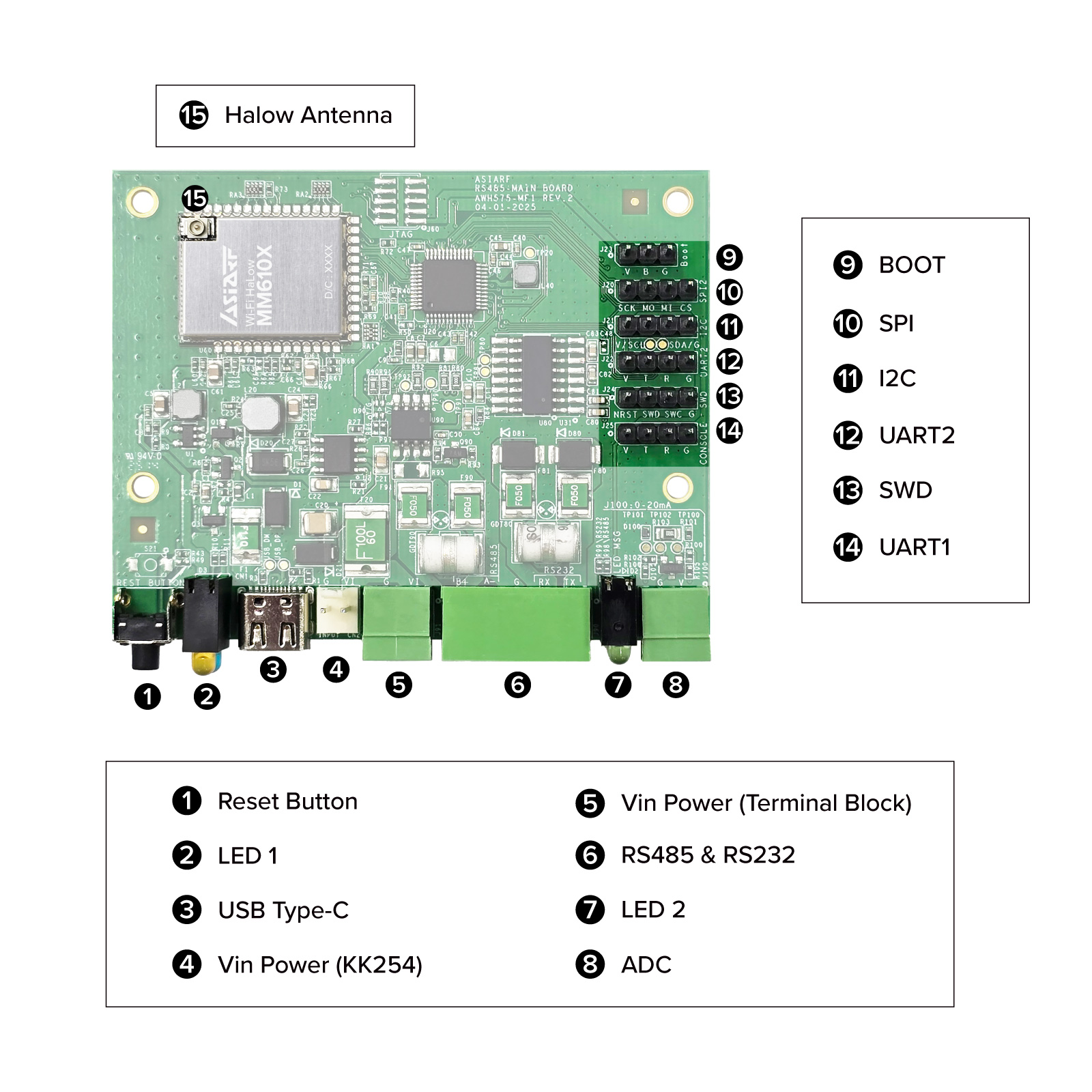

Interface
| Buttons | Reset button |
| Terminal Block | RS-485, RS-232, ADC-12bit, Vin |
| USB Type-C | Power supply and setting HaLow |
Physical Characteristics
| Dimensions (W x H x D) | 76x60mm |
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 15 × 15 × 4.5 cm |
| Country Standards | US, EU, JP, AU, NZ |
