Optimize Wireless Signals with our Antennas
Description
AG-24015 Wi-Fi Antenna Grid 2.4GHz 15dBi
300 x 400mm
2 kg
Why AsiaRF
- Flexible Product Portfolio
From low-power to high-performance modules, with standard and custom form factors—built to match diverse project requirements. - Proven Across Industries
Deployed in manufacturing, retail, energy, and smart agriculture, enabling reliable connectivity in real-world applications. - Quality You Can Trust
Every product undergoes rigorous validation and testing to ensure consistent performance and long-term reliability. - Engineering-Level Support
Our technical team provides responsive, end-to-end support—from design-in to deployment. - Optimized Cost Efficiency
Streamlined solutions and periodic promotions help reduce total cost of ownership without compromising performance.
Backed by strategic partnerships with leading chipset providers like MediaTek and Morse Micro, AsiaRF delivers future-ready wireless solutions with strong supply continuity and access to next-generation technologies.
About AsiaRF : Global Leader in Wi-Fi HaLow, Wi-Fi 7, and IoT Solutions : https://asiarf.com/about-asiarf/
Learn more on our blog : https://asiarf.com/category/blog/Setting New Standards for Sub-GHz Communication!
Or follow us on Linkedin : https://www.linkedin.com/company/asiarf/posts/?feedView=all
Standard
|
Model No.
|
AG-24015
|
|
Frequency MHz
|
2400-2483 MHz
|
|
DB gain
|
15dBi
|
|
Power output
|
50 W
|
|
Polarization
|
Linear
|
|
VSWR
|
<= 1.5
|
|
Front / Back Ratio
|
> 25 dB
|
|

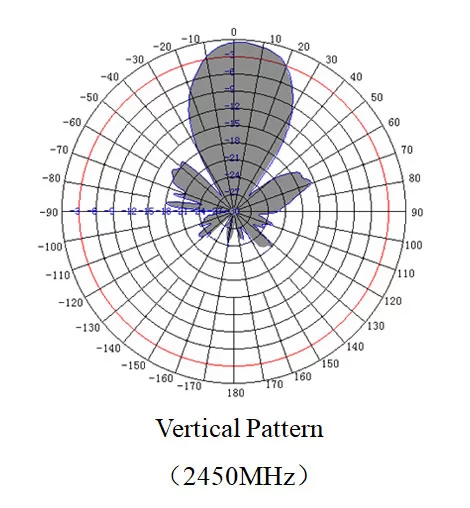

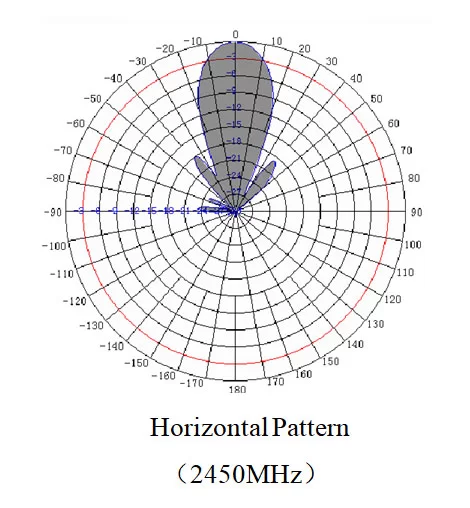

3dB Beam Width
|
E-plane 21(degree)
H-plane 16(degree) |
|
Dimension LxW
|
300 x 400mm
|
|
Weight
|
1.2 kg
|
|
Connector
|
N Female
|
|
Temperature
|
-40 to+85(degree)
|
|
Mount
|
Hanged on pole
|
|
Directional
|
Y
|
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 31 × 24 × 11 cm |
