HaLow Platform, Wi-Fi HaLow, HaLow Module, Wi-Fi Module

Wi-Fi HaLow Sub-1GHz+2.4GHz, long-range, low-power, ideal for IoT with wide coverage and strong penetration.

SALE 🔍

A versatile IoT solution integrating Wi-Fi HaLow wireless technology Universal HaLow Meter Module AWHU5-001-Awmhu5 001 1 1

A versatile IoT solution integrating Wi-Fi HaLow wireless technology Universal HaLow Meter Module Awmhu5 001 1 Dimension-Awmhu5 001 1 Size

A versatile IoT solution integrating Wi-Fi HaLow wireless technology Universal HaLow Meter Module Awmhu5 001 1 Dimension

Universal HaLow Meter Module A versatile IoT solution integrating Wi-Fi HaLow AWMHU5-001

Name: Universal HaLow Meter Module versatile IoT AWHU5-001
SKU: ASYAWMHU50020111
Price: 59.00 USD
Availability: InStock

Original price was: $115.00.Current price is: $59.00.

The Universal HaLow Meter Module integrates Wi-Fi HaLow (AWMHU5-001) to deliver long-range, low-power IoT connectivity. With the MM6108 and STM32U5, it stays efficient and stable. Ideal for tough sites like underground pipelines using HaLow Mesh for reliable cloud data delivery.

Country Standards

Clear

x

Description

Universal HaLow Meter Module A versatile IoT solution integrating Wi-Fi HaLow AWMHU5-001

A versatile IoT solution integrating Wi-Fi HaLow wireless technology.
• Wi-Fi HaLow Chipset : Morse Micro MM6108
• Power Supply : DC 5V
• Security Protocols : 64/128-bit WEP, TKIP, WPA, WPA2, AES, WPS
• Operating Mode : Client
• Wireless Standard : IEEE 802.11ah
• Microcontroller : STM32U5x5CI, running at 160 MHz
• Core Architecture : Arm® 32-bit Cortex®-M33 CPU with TrustZone®, MPU, DSP, and FPU
• Model Number : AWHU5-001

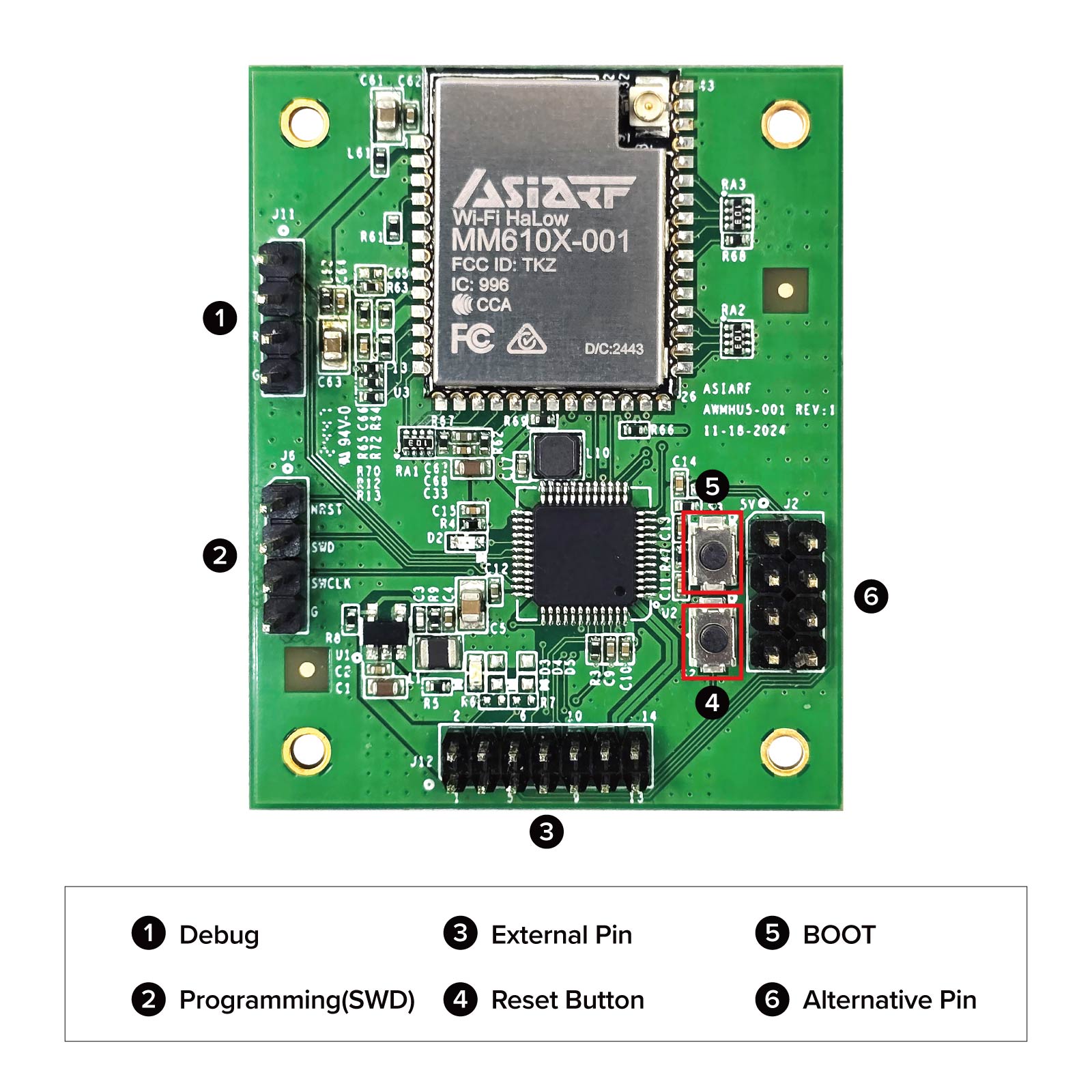

The Board Configuration

Features

• Optimized Data Exchange :
Utilizes a UART interface for streamlined and efficient communication.

• Seamless Device Integration :
Designed for easy configuration and connection, with flexible GPIOs to support
a wide range of applications.

• Extended Battery Life :
Engineered for low power consumption, ensuring battery longevity of at least
five years under typical usage—ideal for remote or hard-to-access installations.

• Long-Range Connectivity :
Leverages Wi-Fi HaLow’s extended range and high-capacity transmission,
enabling reliable sharing of images and video over long distances.

• Simplified Configuration :

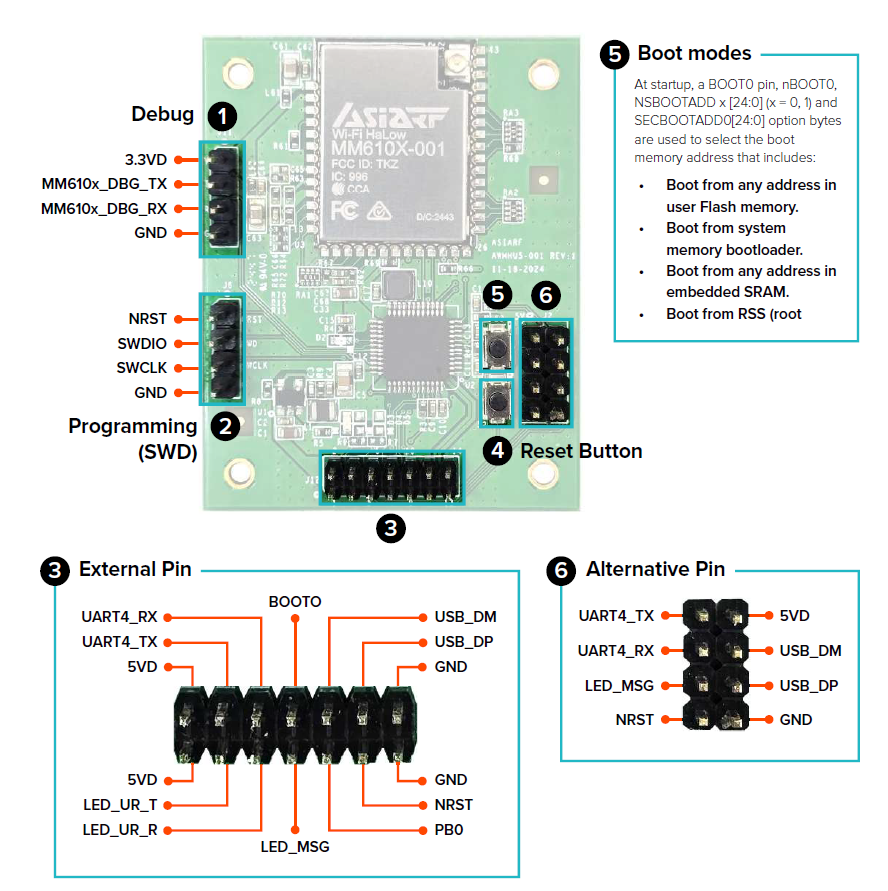

Dual-purpose Pin 10 (DP) and Pin 12 (DM) function as both USB Data Plus/Minus
lines and HaLow configuration pins for effortless setup.s.

Application With HaLow

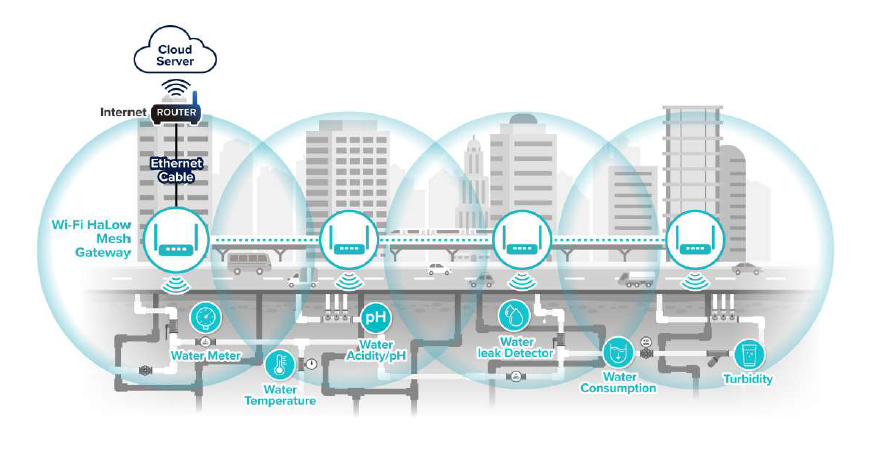

Smart Underground Pipeline Monitoring System
Using Wi-Fi HaLow Mesh, water quality and pipeline data can be transmitted long-range to the cloud with low power consumption.Perfect for underground environments where wiring and regular wireless signals fail.
