Description

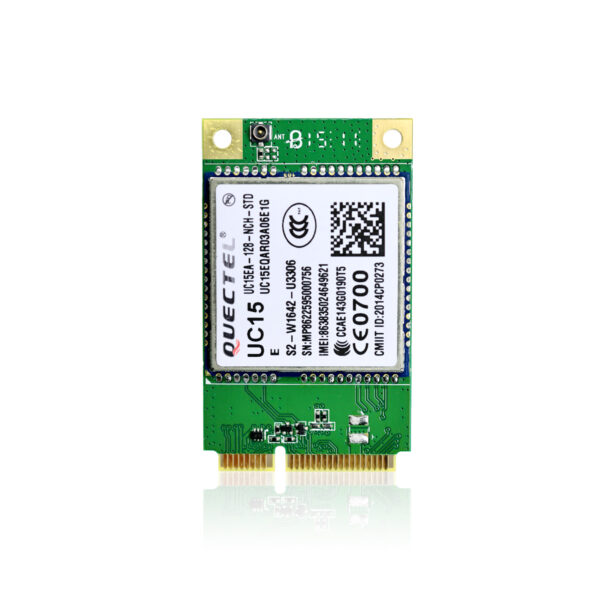

UC15EA-128-NCH-STD is a QUECTEL 3G Cellular Module for HSDPA-UMTS Europe area.
UC15 Mini PCIe is a Quectel UMTS/HSDPA module featuring a maximum data rate of 3.6Mbps downlink and 384Kbps uplink.
The module provides global network coverage on the connectivity of HSDPA/WCDMA, with fully backward compatible with existing EDGE and GSM/GPRS networks.
With multibands combined with dual-band WCDMA and dual-band GSM.

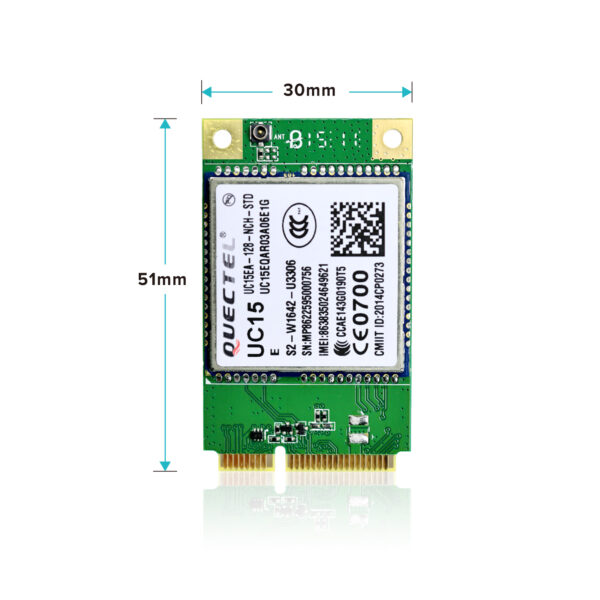

The tiny profile of 51.0×30.0×4.9mm in standard Mini PCIe form factor and highly integration level enable integrators and developers to easily design their applications and truly benefit from low power consumption and convenient Plug and Play Function.
With an extended temperature range from -40°C up to 80°C, UC15 Mini PCIe functions reliably in extreme environments for use outdoors or inside at sites that lack cooling and heating systems. A rich set of Internet protocols, industry-standard interfaces (USB/ UART/Analog Audio/LED_WWAN) and abundant functions (USB drivers for Windows XP, Windows Vista, Windows 7, Windows 8, Windows CE, Linux, Android) extend the applicability of the module to a wide range of commercial and industrial M2M applications.
Why AsiaRF
- Flexible Product Portfolio
From low-power to high-performance modules, with standard and custom form factors—built to match diverse project requirements. - Proven Across Industries
Deployed in manufacturing, retail, energy, and smart agriculture, enabling reliable connectivity in real-world applications. - Quality You Can Trust
Every product undergoes rigorous validation and testing to ensure consistent performance and long-term reliability. - Engineering-Level Support
Our technical team provides responsive, end-to-end support—from design-in to deployment. - Optimized Cost Efficiency
Streamlined solutions and periodic promotions help reduce total cost of ownership without compromising performance.
Backed by strategic partnerships with leading chipset providers like MediaTek and Morse Micro, AsiaRF delivers future-ready wireless solutions with strong supply continuity and access to next-generation technologies.
About AsiaRF : Global Leader in Wi-Fi HaLow, Wi-Fi 7, and IoT Solutions : https://asiarf.com/about-asiarf/
Learn more on our blog : https://asiarf.com/category/blog/Setting New Standards for Sub-GHz Communication!
Or follow us on Linkedin : https://www.linkedin.com/company/asiarf/posts/?feedView=all
Features
- Worldwide UMTS/HSDPA and GSM/GPRS/EDGE coverage
- Standard Mini PCIe form factor maximizes the convenience for customers to design and use
- High-quality data and image transmission even in hazard conditions and dark environment
- Fast time-to-market
- Robust mounting and interfaces
Standard
| Packing | 52-pin mini PCIE |
| Dimensions | 51*30*4.9mm |
| 3G | UMTS/HSDPA |
| Frequency Range(MHz) | 900/2100@UMTS |
| 900/1800@GSM | |
| Weight(approx.) | 9.3g |
| Temperature Range | _40°C to +85°C |
| Data Transmission | |
| HSPA data rate(Mbps) | 3.6(DL) |
| UMTS data rate(Kbps) | 384(DL)/384(UL) |
| GPRS data rate(Kbps) | 85.6(DL)/85.6(UL) |
| EDGE data rate(Kbps) | 236.8(DL) |
| SMS | Yes |
| CSD | Yes |
| Protocols | TCP/UDP/PPP/MMS/FTP/SMTP/SMTPS/HTTP/HTTPS/PING/SSL |
Power consumption maximum is 9W, average is 4 – 8W.
Main board Power Supply design please provide 3.3V 3A, minimum 3.3V 2.5A.
Additional information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 9.5 × 6.8 × 1.5 cm |
