Description

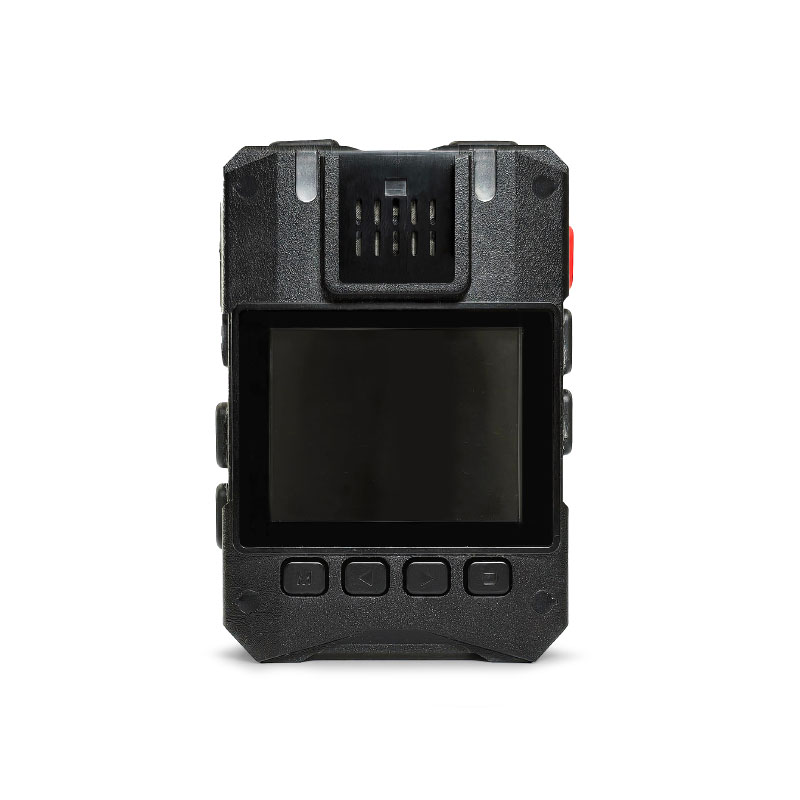

Body Worn Camera with Audio and Video Recording HD 1080P Push-to-Talk (PTT) Body Worn Cam with 164° Wide-Angle Lens, 11HR Recording, 5HR Transmission, IR-Cut Auto Night Vision, 512GB, Emergency SOS Alert, 4G Embedded, Ambarella S5 & Sony Sensor – WiB-B01
The occurrence of disasters, unsafe behaviors, and internal theft can lead to significant loss of life and property, while also damaging the reputation of companies or institutions. Rapid disaster response, on-site inspection, real-time rescue of personnel, and post-event review materials are critical. With this device, on-site commanders and remote supervisors can see, hear, speak, locate, and send alert notifications within seconds.
This mobile, wearable, lithium battery-powered, 4G-enabled multi-function body Worn camera offers wireless live streaming with audio, delivering superior situational awareness and command capabilities. It supports real-time video transmission, group PTT (Push-to-Talk) communication, GPS positioning, and emergency alert functions. By enabling remote commanders to see and communicate with frontline personnel in real time, the system helps minimize response delays, enhance decision-making, and ultimately reduce casualties and property damage.
The device is equipped with Ambarella S5 and Sony sensor high-performance chips, ensuring superior image quality, reliability, and operational stability. With built-in 4G, Wi-Fi, and GPS modules, it offers seamless real-time audio/video streaming and location tracking. The integrated high-sensitivity microphone and high-decibel speaker ensure clear audio, high signal-to-noise ratio recording, and effective PTT communication even in noisy environments.
Features
- Compact and Lightweight Design : Easy to operate with flexible buttons.
- 2-inch Screen : Simplifies operation and viewing.
- Durability : IP68-certified, 2-meter drop resistance, and flame-retardant shell.
- Advanced Hardware : USA-made Ambarella S5 SoC for efficient video compression.
- Night Vision : USA OV 5MP low-lux sensor for full-color night vision.
- High-Resolution Media : Video up to 2688x1512P@25fps; photos up to 64MP.
- Ample Storage : Supports up to 512GB TF cards.
- Dual Compression : H.265 and H.264 options.
- Extended Recording : Low power mode enables over 11 hours of recording.
- Versatile Charging : Type-C support and pogo pin docking.
- Replaceable Battery : Swap without shutting down.
- Connectivity : Integrated 4G, Wi-Fi, GPS, ONVIF/RTSP protocols for live streaming and monitoring.
- Additional Features : PTT intercom, SOS alarm, voice broadcasting.
Standard
Auxiliary Lightwhite LED light and IR light, for dark environment
Microphone Built-in high-sensitivity microphone, high signal-to-noise ratio recording
| 4GBody Worn Camera | |
| Model No. | B01 |
| Compression Processor | |
| Main Chip | Ambarella S5L55m, 4 core arm and compression, Linux O.S. |
| Lens & Image Sensor
(2 choice 1, Plug/unplug automatic restart of lens selection) |
On the machine: – Field of View FOV 164° Wide-angle with 6 glasses lens – OV OS05A10 5M 1/2.7” CMOS sensor |
| Extra wire camera: – Field of View FOV 164° Wide-angle with 4 glasses lens – 5M 1/2.7” CMOS sensor |
|
| IR Night Vision | Auto / Manual on/off IR light. Facial expressions can be seen clearly at 3 meters, and human body outlines can be seen clearly at 10 meters. |
| Video | |
| Video Compression Format | H.264 AVC or H.265 HEVC (Can maximize save storage space) |
| Video Resolution / Frame Rate | Encode 1 CBR for local storage 2688x1512P / 25fps，2560×1440P / 30fps 、2304×1296P / 30fps、1920×1080P / 30fps (Frames Per Second) |
| Encode 2 VBR for live streaming
1080P/25fps、720P/25fps、360P(640×360) /25fps |
|
| Video Processing | Support video pre-recording and extension recording, motion detection functions |
| Support watermark more legal effect | |
| Support car mode, overwrite recording | |
| Support inputting up to 200 faces, automatically searches for the video file where the face is located and lists the file name (optional) | |
| Snapshoot | Support snapshoot photo as 64M（10752*6048）、16M（5376*3024）、4M（2688*1512） |
| Audio | |
| Audio Compression | AAC / PCM |
| Wireless Communication | |
| Real-time Streaming | Via built-in 4G LTE or 2.4GHz/ 5.8GHz Wi-Fi |
| Satellite positioning | Via built-in GPS |
| Server Platform Network Protocol | Support ONVIF and RTSP protocol linking with 3rd party VMS
Private protocol linking with multi-functions VMS (customization, options) |
| Design | |
| LCD Monitor | 2” LEDC IPS full view screen，for display status and operation |

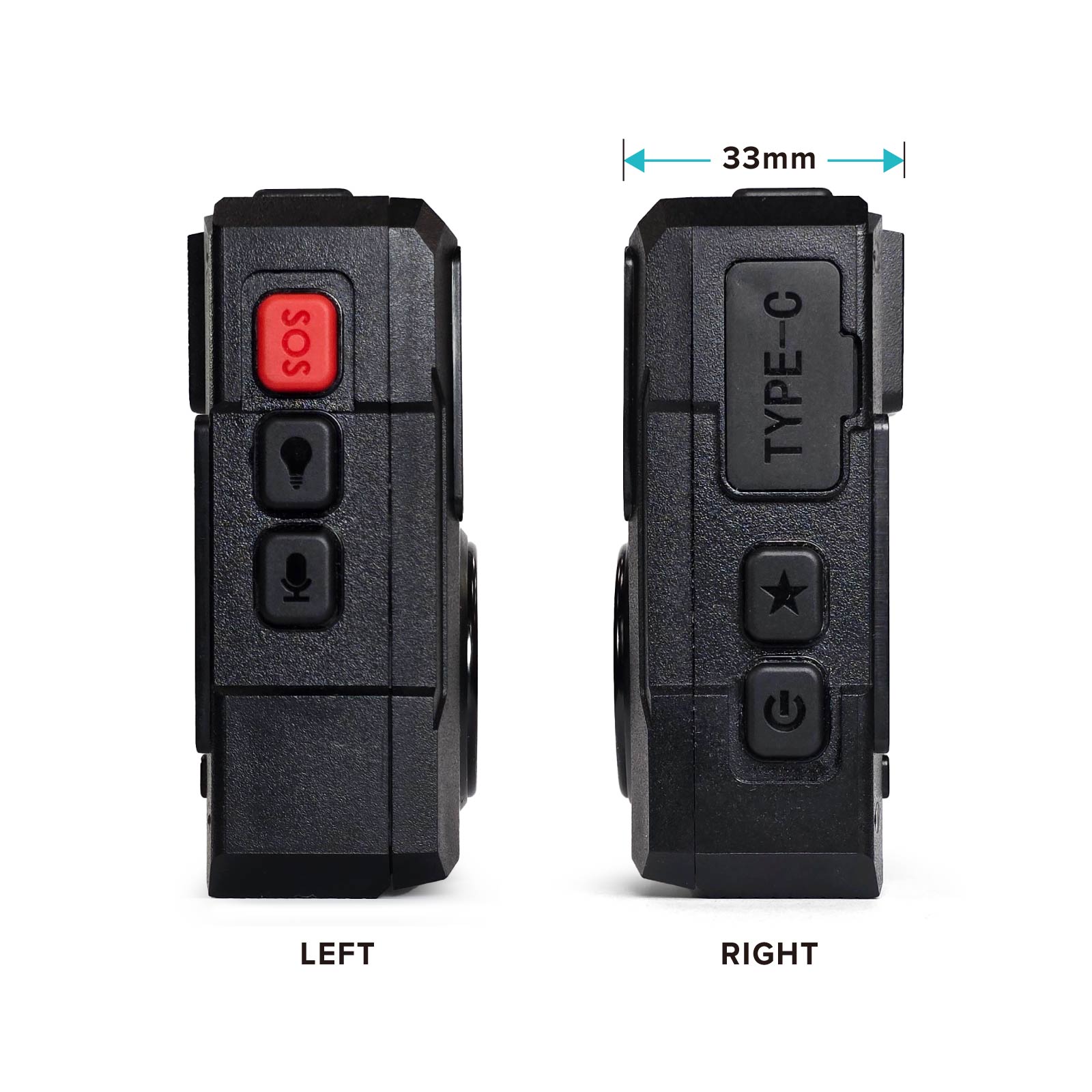

| Dimensions | 70.2(H) mm x 25.2(T) mm x 45.2(W) mm |
| Weight | Body camera 142 g, Back clip 12g |
| Device Memory Storage | RAM 256MByte ROM 512MByte SD(TF) card up to 512GB, default is 64GB |
| USB port | Type C interface for charging and transmission |
| Speaker | 105 dB |
| Audio In/Out | External headset |
| Vibrator | Built-in |
| SOS | Long press this button, the device will issue an alarm bell |
| Voice Warning feature | Automatic hourly time chime, operation sound prompts |
| Pogo Pin | below is a charging metal sheet, and equipped with a dedicated single-seat charging base and 8 slots docking station |
| Accessories (optional) | Shoulder and Back Clips |
| Single charging base | |
| 8 slots docking station for charging and automatically downloading the BWC video/audio recording files | |
| Software | |
| Dedicate Software | Equipped with dedicate software that can be password protected and set a password to prevent images from being deleted |
| Powered By | |
| Built-in lithium battery | built-in 3500 mAh lithium battery |
| Usage Time | Supports low power consumption mode for extended battery life: 1. Standby mode (without recording and 4G transmission) up to 16 hours 2. Continuous recording without 4G transmission over 11 hours 3. Continuous 4G transmission with recording more than 5 hours |
| Charging Time | ≤ 4 hours |
| Charging By | Type C and Pogo pin |
| Others | |
| Waterproof and dustproof | IP68 |
| DropTest | 2 meters anti-drop |
| Case | The shell is made of industrial-grade ABS flame-retardant material, which is shock-proof and explosion-proof, strong and drop-resistant, and impact-resistant. |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 12 × 6 cm |
