WiFi Router board MT7621 RS232 RS485 AP7621-002 manufacturer
$160.00
AP7621-002 is a powerful WiFi Router board by MT7621 with RS232 RS485, the best solution for Internet Service Router and Home Security IoT Gateway. By this WiFi Router board with RS232 and RS485, you can implement super IoT solution to reach smart automation and AI cloud control.

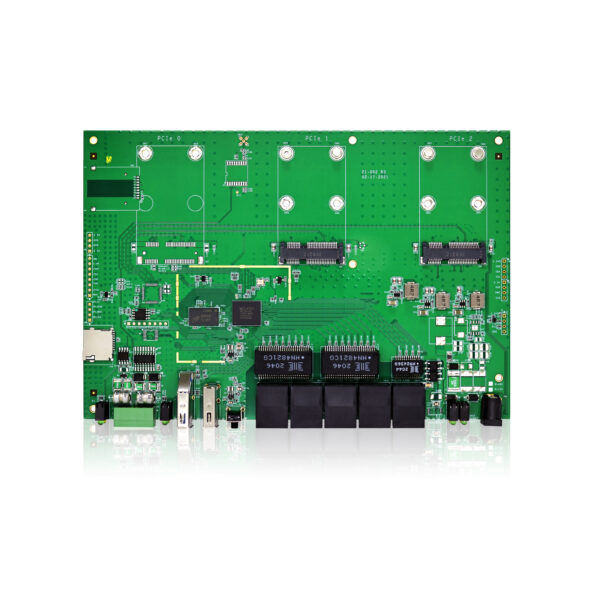

AP7621-002 a WiFi Router board by MT7621A with RS232 RS485
AP7621-002 is a powerful WiFi Router board by MT7621 with RS232 RS485, the best solution for Internet Service Router and Home Security IoT Gateway. By this WiFi Router board with RS232 and RS485, you can implement IoT solution to reach smart automation and AI cloud control.
Main CPU MT7621A integrates a dual-core MIPS1004Kc (880MHz), HNAT/ HQoS/ Samba/ VPN accelerators, GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control). In the mean time provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic. These accelerators relief the CPU for other upper layer applications
- Mediatek MT7621A chipset
- Flash SPI NOR16MB, DDR3 512MB 16bits BUS
- 32 KB I-Cache and 32 KB D-Cache per core
- 256 KB L2 Cache (shared by Dual-Core)
- SMP capable
- Single processor operation configurable Gigabit Switch
- IPv4 routing, NAT, NAPT
- IPv6 routing, DS-Lite, 6RD, 6to4, HW QoS
- HNAT/ HQoS/ Samba/ VPN accelerators
- Support boot from Flash
- Mini PCIe, Micro SD-XC, USB, GPIOs, I2C, UART and GPIOs
- 5 Giga Ethernet ports with Power over Ethernet (PoE) MDI transceivers
- 16 hardware queues to guarantee the min/max bandwidth of each flow
- Seamlessly co-work with HW NAT engine
- 2Gbps wired speed HW Crypto Engine
- Deliver 400~500 Mbps IPSec throughput Green
- Intelligent Clock Scaling (exclusive)
- Suitable with IEEE802.11ac MT7612E, MT7615, LTE, 3G mini PCIe cards
- Powerful WiFi and IoT Gateway like LoRa, Sigfox
MT7621A function diagram
Board Main Interfaces:
| 3 x mini PCIe slots (Combo PCIe n USB) |
5 x Giga Ethernet Ports (PoE) |
| 1 x Micro SD-XC | 1 x USB 3.0 |
| 1 x USB 2.0 | 1 x GPS (Quectel L70B) |
| 1 x I2C | 1 x JTAG |
Hardware Features:
| Standard | IEEE 802.11 a/b/g/n/ac standards compliant |
| Wireless LAN | Compatible with MT7612E, MT7615 802.11ac WAVE2 |
| 3G / 4G | Compatible with mini PCIe card |
| Memory | Flash is SPI SOP8 16MB DDR3 is 512MB 16bits BUS |
| Interface | 3 x mini PCIe slots 2 x Giga Ethernet Ports (PoE) 1 x Micro SD-XC 1 x USB 3.0 1 x USB 2.0 1 x GPS (Quectel L70B) 1 x I2C 1 x JTAG |
| Dimension | 210 x 143 x 25 mm |
| Certifications | FCC/CE IC by request |
| Power | DC Power Jack form 9-15V / 9-48V(optional) Barrel D=2.0mm
IEEE 802.3f PoE 48V |
SOFTWARE FEATURE
- Support OPENWRT, MTK SDK
Network Features:
- Video, Storage
- DHCP Client/Relay/Server
- Dynamic DNS
- NTP Client
- DNS Cache/Proxy
- Firewall
- MAC/IP/Port Filter
- Virtual Server
- DMZ
- Content Filter
Weight 0.4 kg
Dimensions 21 × 14.3 × 2.5 cm
