WiFi Dual Bands Dual Polarized 4×4 MIMO Omni Antenna 2.4 5 GHz 9dBi AO-2450-9-D4
$100.00
ANTD245009003001
WiFi Dual Bands Dual Polarized Dual Concurrents Outdoor 4×4 MIMO Omni Antenna 2.4 and 5 GHz 9dBi AO-2458-9-D
WiFi Dual Bands Dual Polarized Dual Concurrents Outdoor 4×4 MIMO Omni Antenna 2.4 and 5 GHz 9dBi AO-2450-9-D4 (ANTD245009003001)
- High gain dual band dual polarity outdoor IP67 omni directional antenna designed and optimized for 2.4 and 5 GHz frequencies
- The omni antenna combines a 2.4/5 GHz horizontal polarized antenna and a 2.4/5 GHz vertical polarized antenna together in a single radome
- 2 poles for 2.4GHz, 1 pole is horizontal polarization, the other is vertical polarization; 2 poles for 5GHz, 1 pole is horizontal polarization, the other is vertical polarization
- This simplifies installations since the same antenna can be used for a wide array of outdoor wireless applications where wide coverage is desired.

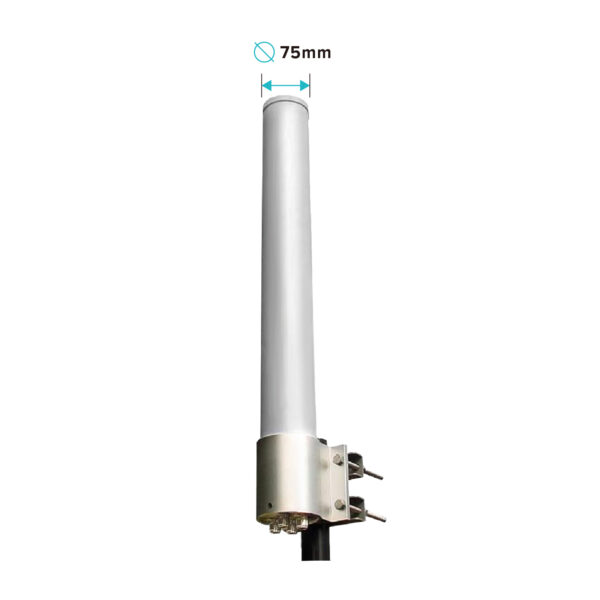

- Dimension Φ 75 x 1250 mm, Weight 3KG
- Offer Customized Inside Space for 7cm Wide Router PCBA Installation
|
Model No.
|
AO-2450-9-D4
|
|
Frequency MHz
|
2400-2500 MHz
5150-5850 MHz |
|
Impedance
|
50Ω
|
|
DB gain
|
9 dBi
|
|
Power output
|
50 W
|
|
Polarization
|
Horizontal and Vertical
|
|
VSWR
|
<= 2
|
|
Front / Back Ratio
|
> 25 dB
|
|

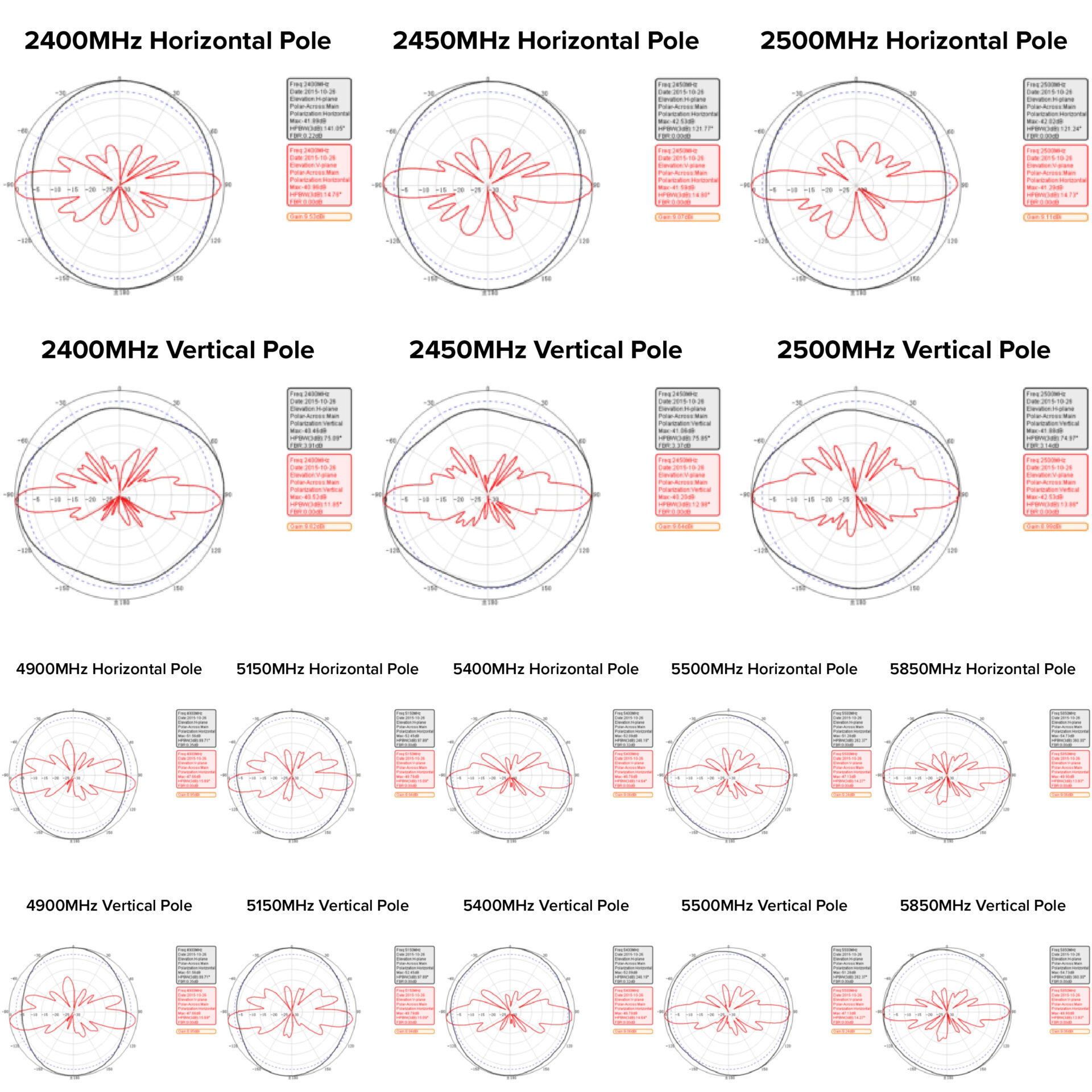

3dB Beam Width
|
E-plan 10(degree)
H-plan 360(degree) |
|
Dimension Diameter x L
|
Φ 75 x 1250 mm
|
|
Weight
|
4 kg
|
|
Connector
|
4 x N Female
|
|
Temperature
|
-40 to+85(degree)
|
|
Mount
|
Hanged on pole
|
|
Directional
|
N
|
|
Radome Material
|
ABS
|
|
Radome Color
|
White
|
|
Mount
|
Hanged on pole
|
