Optimize Wireless Signals with our Antennas

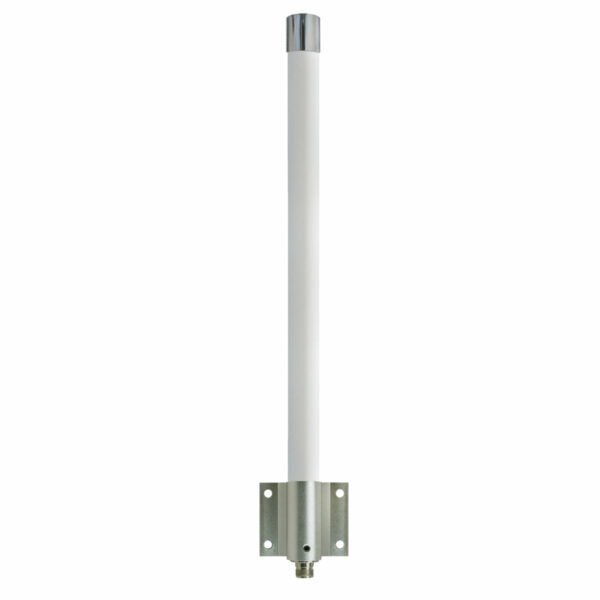

WiFi Antenna Omni 2.4GHz 8dBi AO
WiFi Antenna Omni 2.4GHz 8dBi AO-24008.1
Dimension Phi x L: 24 x 560 mm
1kg
|
Model No.
|
AO-24008.1
|
|
Frequency GHz
|
2.4 – 2.5GHz
|
|
DB gain
|
8 dBi
|
|
Power output
|
50 W
|
|
Polarization
|
Vertical
|
|
VSWR
|
<= 1.5
|
|

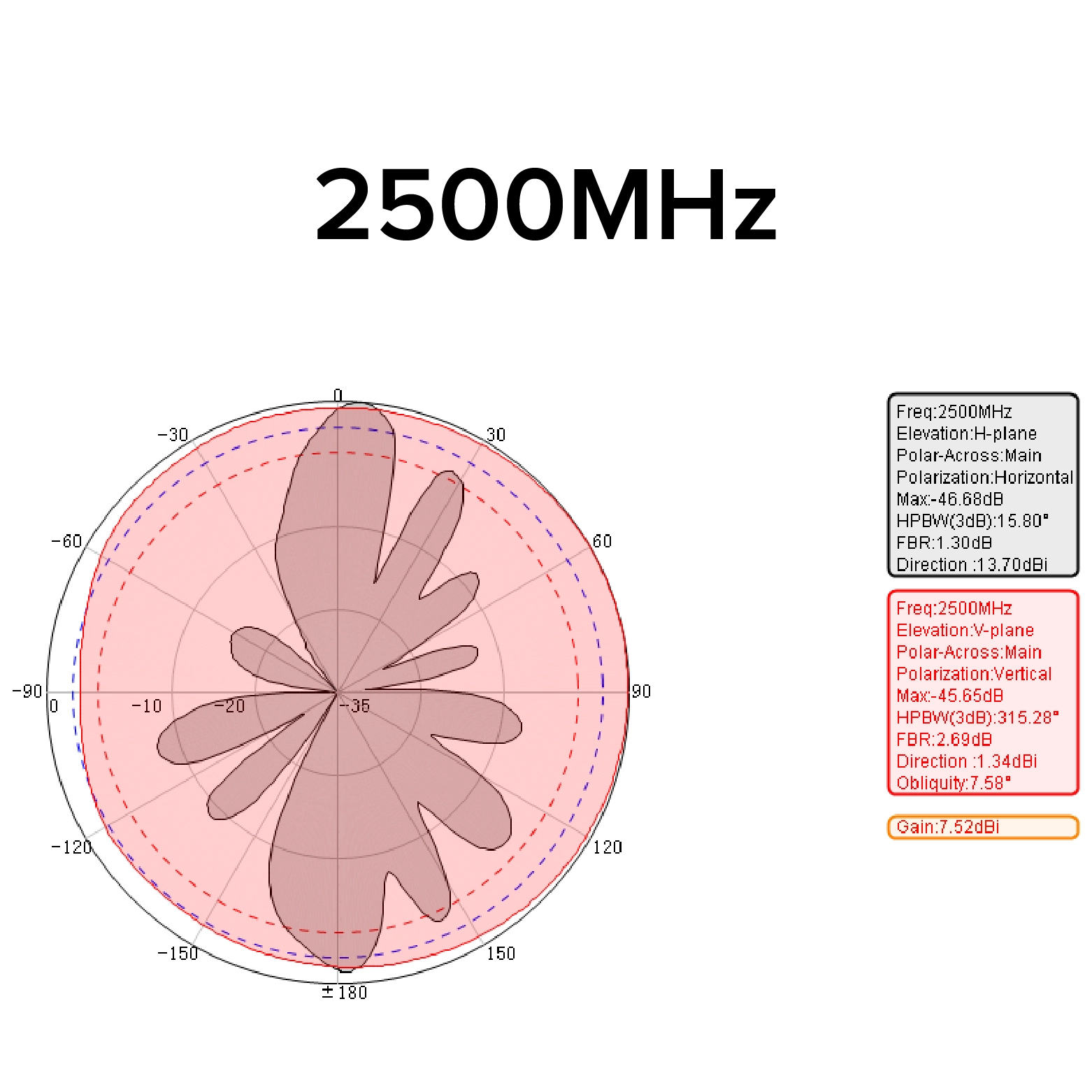

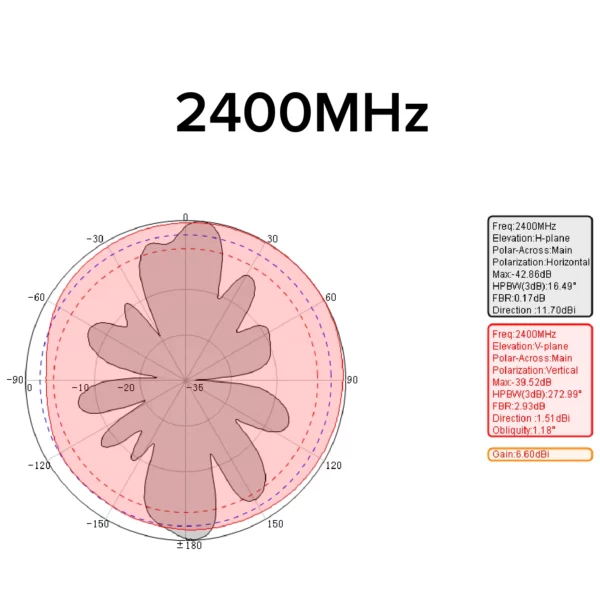

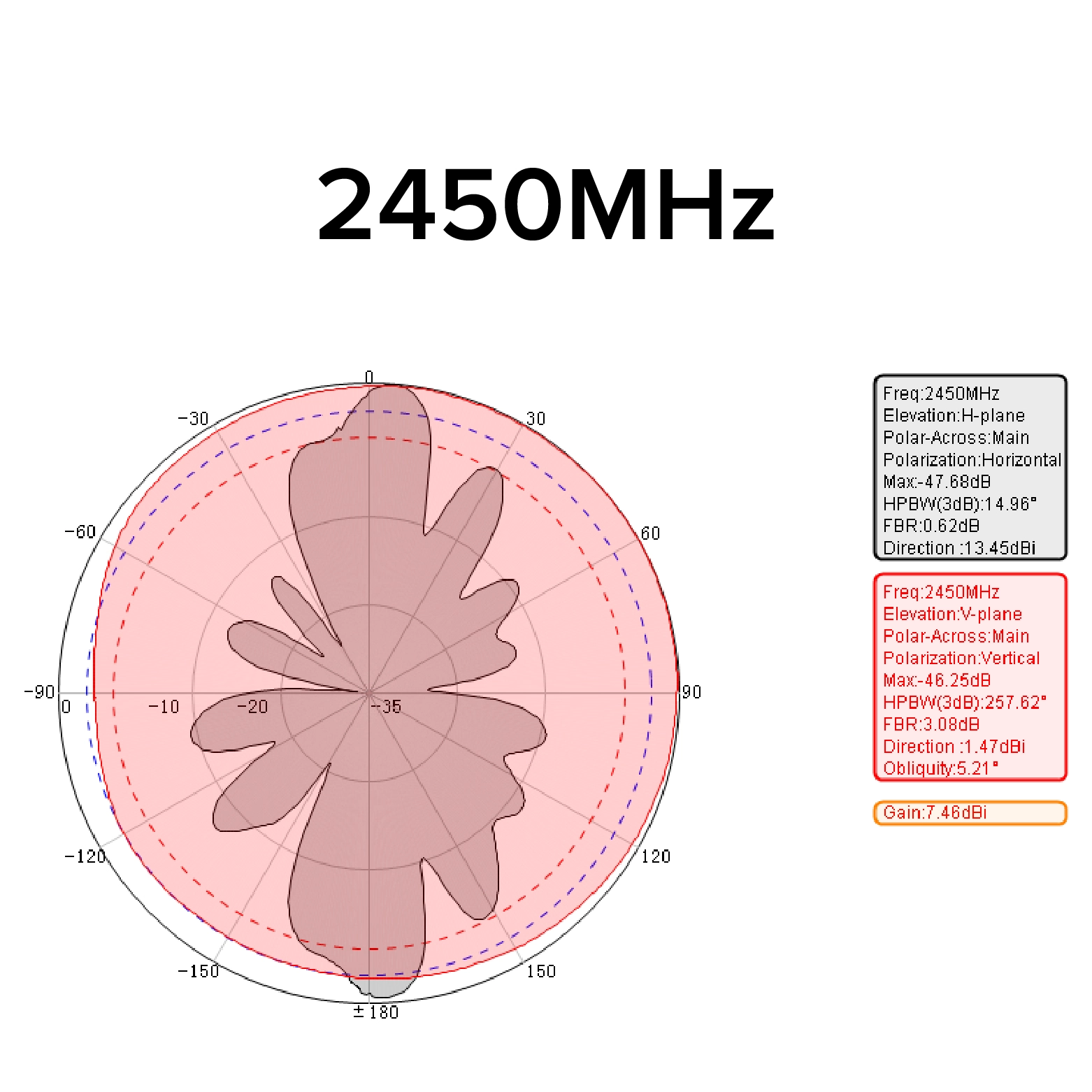

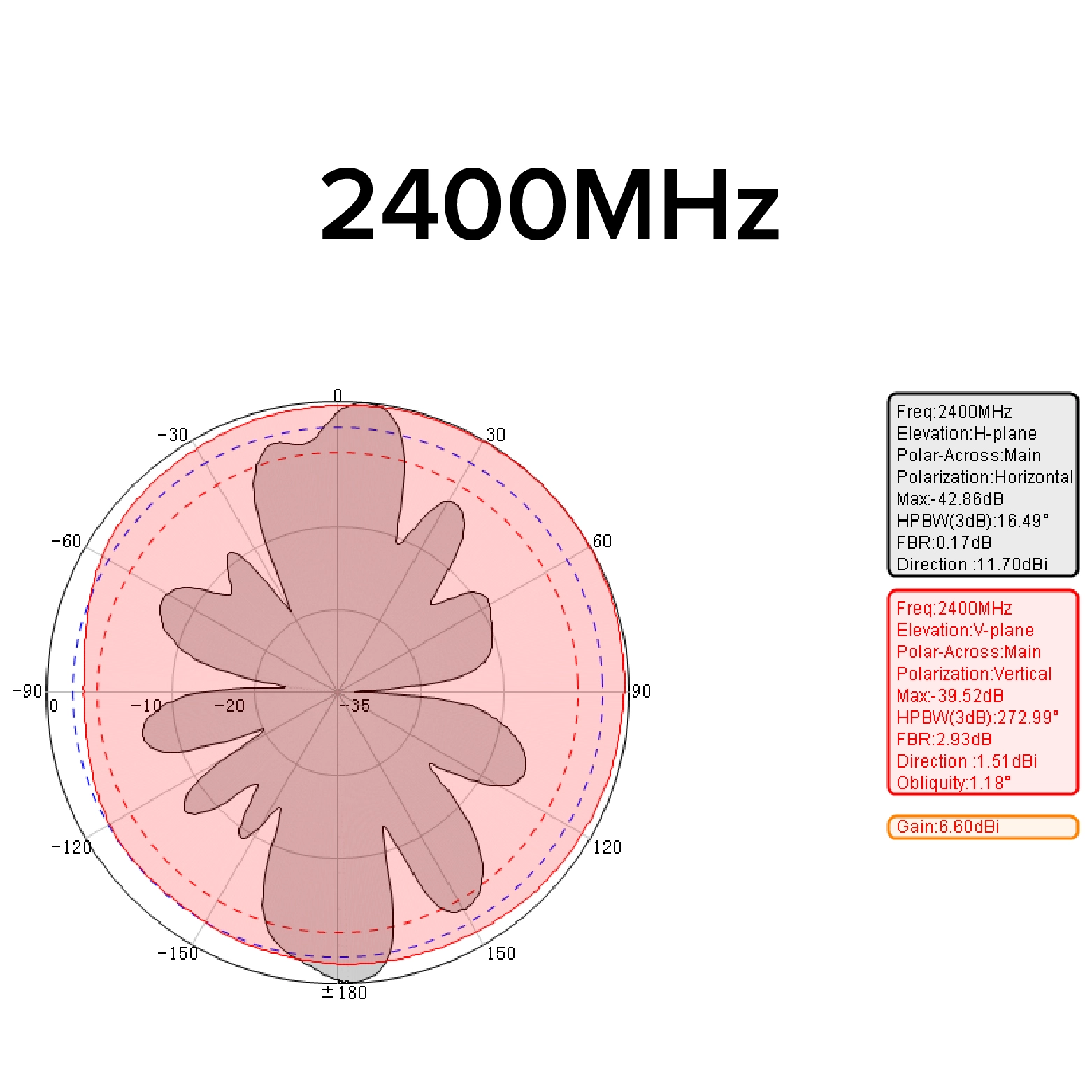

3dB Beam Width
|
E-plan 15(degree)
H-plan 360(degree) |
|
Dimension Phi x L
|
24 x 560 mm
|
|
Weight
|
400 g
|
|
Pigtail
|
N
|
|
Connector
|
N Female
|
|
Temperature
|
-20 to +80(degree)
|
|
Humidity
|
40% – 60% RH
|
|
Mount
|
Hanged on pole
|
|
Directional
|
N
|
