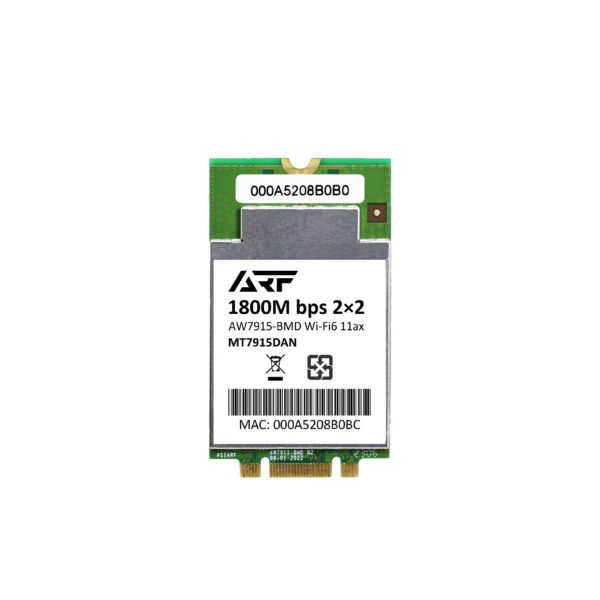

WiFi 6 11ax M.2 BM Key Module AW7915-BMD
$37.90
AW7915-BMD is a WiFi6 M.2 Module BM Key by MT7915DAN, offering reliable wireless connectivity with a PHY rate of 1800Mbps. It complies with IEEE 802.11ax/ac and IEEE 802.11 ac/a/b/g/n standards.
This item: WiFi 6 11ax M.2 BM Key Module AW7915-BMD
$37.90
$37.90
40AW7915-BMD: Reliable Wi-Fi 6 M.2 Module with 1800Mbps PHY Rate and Broad IEEE Compatibility
Introducing the AW7915-BMD, a WiFi 6 M.2 Module with BM Key, powered by the MT7915DAN chipset. It’s your ticket to rock-solid wireless connectivity with a speedy PHY rate of 1800Mbps. And guess what? It plays nicely with a bunch of IEEE standards, including 802.11ax/ac and even the older 802.11 ac/a/b/g/n ones.
Now, let’s talk tech. This module is no slouch. It’s got some clever tricks up its sleeve. Thanks to its optimized RF architecture and smart MAC design, it performs like a champ while sipping power conservatively. Plus, it’s all about dual bands and dual concurrent operation, which means it can juggle two wireless tasks at once.
When it’s time for a power nap, it’s got you covered too. It has multiple power domains and can go into a deep sleep mode to save those precious watts. Inside, you’ll find a 32-bit RISC MCU subsystem, clock control options, and PDMA engines to keep your data flowing efficiently.
But here’s where it really shines. The MT7915DAN chipset inside combines the WiFi MAC and BBP subsystems to deliver top-notch radio performance. It’s all about giving you the best possible connection. It even supports multi-user MIMO (MU-MIMO) for when you’ve got a crowd of devices.
And don’t worry about your data’s speed – it’s got an integrated PCIe interface for a stable, high-speed link between your device and the module.
In a nutshell, the AW7915-BMD is a high-performance WiFi 6 module that’s all about advanced features, efficient power use, and keeping you connected to multiple devices.
- 2T2R in 2.4G+2T2R in 5G with support of up to 573+1201Mbps PHY rate
- Supports 20, 40, 80 channels
- HE MCS0-11 BW20/40/80MHz with Nss=1~2
- Short Guard Interval
- Space-time block code (STBC)
- Low Density Partiy check (LDPC)
- Support digital pre-distortion to enhance PA performance
- Smoothing (channel estimation) extension to MIMO case
- DFS radar detection
- Embedded ARM Cortex R4 processor for full host CPU offload
- Embedded 32-bit RISC microprocessor
- Support STBC, LDPC, TX Beamformer and RX Beamformee
- Decoded BW20/40/80 up to 4×2 MU materix feedback
- Greenfield, mixed mode, legacy modes support
- Highly integrated RF with 40nm low power process
- Noise mitigation:
- Supports background scan function for fast channel switching
- Supports spectrum analysis for non-Wi-Fi signals
- Intelligent power saving
- WFA WMM, WMM PS (QoS)
- Integrate high efficiency internal 4G/5G PAs
- Intelligent Calibration (iCal) reduces the production time
- Integrate high efficiency internal 4G/5G PAs
| Standards | Wireless: IEEE 802.11ax/ac/b/g/n (2Tx2R) |
| Data Rate | IEEE802.11ax 1201Mbps @TX/RX IEEE802.11ac 1733Mbps @TX/RX IEEE802.11a/n 600Mbps @TX/RX IEEE802.11a/g 108Mbps IEEE802.11b 22Mbps |
| Output Power | 11b: 23dbm+/- 1.5dbm @11Mbps 11g: 20dbm+/- 1.5dbm @54Mbps 11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 17dBm@MCS7,HT40 11a: 19.5dBm +/- 1.5dbm @54Mbps 11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20+/-1.5dBm @MCS8 11ac HT40: 17+/-1.5dBm @MCS9 11ac HT80: 14.5+/-1.5dBm @MCS9 11ax HT20: 20+/-1.5dBm @MCS9 11ax HT40: 17 +/- 1.5dBm @MCS9 11ax HT80: 14.5 +/- 1.5dBm @MCS11 |
| Receiver Sensitivity | 11b: -99dBm @11Mbps 11g: -95dBm @54Mbps 11g/n: -90dBm @HT20, MCS7 -86dBm @HT40, MCS7 11a: -90Bm @54Mbps 11a/n: -85dBm @HT20, MCS7 -81dBm @HT40, MCS7 11ac: -90dBm +/- 2dBm @VHT20 MCS8 11ac: -85dBm +/- 2dBm @VHT40 MCS9 11ac: -68dBm +/- 2dBm @VHT80 MCS9 11ax: -61dBm +/- 2dBm @HE20 MCS11 11ax: -58dBm +/- 2dBm @HE40 MCS11 11ax: -55dBm +/- 2dBm @HE80 MCS11 |
| Antenna | External Antenna connector (IPEX) x2 |
| Frequency Range | US, Canada 2.412GHz~2.462 GHz (CH1~CH11) EU, Japan: 2.412GHz~2.472GHz (CH1~CH13) 5.15GHz ~5.875GHz |
| Software | Security: 64/128-bit WEP Encryption, WPA, WPA2 Driver: Linux |
| Operating Voltage | DC 3.3V ± 5% |
| Temperature | Operating: 0°C ~ +70°C Storage : -20°C ~ +90°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
| Dimension | 50.95(H) x 30(W)mm |
Power consumption maximum is 9W, average is 4 – 8W
Main board Power Supply design please provide 3.3V 3A, minimum 3.3V 2.5A.
