WiFi 6 11ax 4T4R Mini PCIe Module AW7915-NP1
$39.90
AW7915-NP1 is a WiFi6 11ax 4T4R 2401Mbps mini PCIe Module by MT7915. It fully complies with IEEE 802.11ax/ac and IEEE 802.11 ac/a/b/g/n standards, delivering reliable wireless connectivity with optimized performance and low power consumption.
This item: WiFi 6 11ax 4T4R Mini PCIe Module AW7915-NP1
$39.90
$39.90
AW7915-NP1: High-Speed WiFi6 Mini PCIe Module with Low Power Consumption
The AW7915-NP1 is a mini PCIe Module from MT7915, and it’s all about supercharged WiFi. It’s like having a speed demon in your device, with WiFi 6 (that’s the fancy 11ax) support, boasting 4T4R for a blazing 2401Mbps speed.
What’s cool is that it plays nice with all the WiFi standards you’ve ever heard of, like 802.11ax/ac and the older ac/a/b/g/n. It’s your ticket to rock-solid wireless connections that won’t drain your battery.
This module has some high-tech tricks up its sleeve. It’s got smart RF architecture, a clever MAC design, and PCIe interfaces built in to keep your bandwidth stable. You’ll get speedy WiFi and power-saving nap time thanks to its deep sleep mode.
Inside, it’s got not one but two 32-bit RISC MCU subsystems and some PDMA engines for clock control, power management, and data juggling on the fly. It’s like a WiFi wizard that delivers top-notch radio performance.
It’s a champ at handling multiple devices at once with MU-MIMO support and can work on both 2.4GHz and 5GHz bands. Plus, it’s got features to fight off noise, save power smartly, and support quality of service with WFA WMM/WMM PS.
In a nutshell, the AW7915-NP1 is your go-to for high-speed WiFi 6, with a knack for conserving power and all the fancy features you need for a rock-solid wireless experience.
- Supports 4×4 4SS 11ax wave2 MU-MIMO
- MU-MIMO configurations of
- 4 users: 4*1ss
- 3 users: 2*1ss + 1*2ss or 3*1ss
- 2 users: 2*2ss or 1*1ss + 1*2ss or 2*1ss
- Supports 5, 10, 20, 40, 80, 80+80 channels
- Support MU-OFDMA TX/RX
- Embedded ARM Cortex R4 processor for full host CPU offload
- Embedded 32-bit RISC microprocessor
- Support STBC, LDPC, TX Beamformer and RX Beamforming
- Greenfield, mixed mode, legacy modes support
- Highly integrated RF with 40nm low power process
- 4T4R with support of up to 2401Mbps PHY rate
- Configurable 4×4/3×3
- Noise mitigation:
- Supports background scan function for fast channel switching
- Supports spectrum analysis for non-Wi-Fi signals
- Intelligent power savingWFA WMM, WMM PS (QoS)
- Integrate high efficiency internal 4G/5G PAs
- Intelligent Calibration (iCal) reduces the production time
- WoWLAN via GPIO (client mode), supports Host Sleep (AP mode)

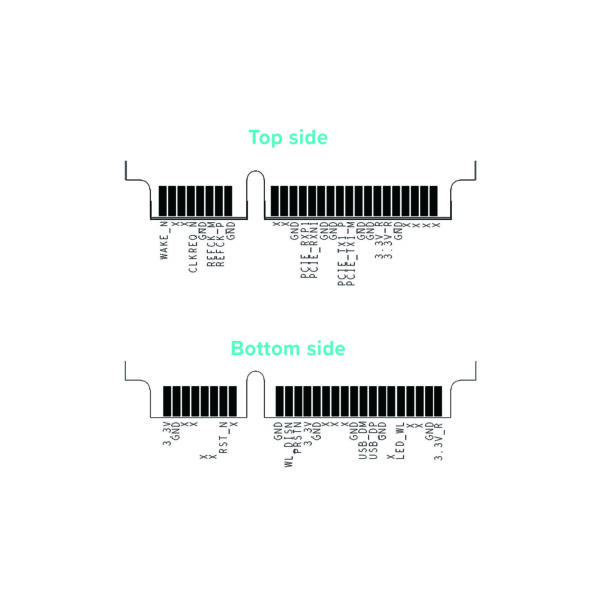

| Standards | Wireless: IEEE 802.11ax/ac/b/g/n (4Tx4R) |
| Data Rate | IEEE802.11ax 2401Mbps @TX/RX IEEE802.11ac 1733Mbps @TX/RX IEEE802.11a/n 600Mbps @TX/RX IEEE802.11a/g 108Mbps IEEE802.11b 22Mbps |
| Output Power | 11b: 23dbm+/- 1.5dbm @11Mbps 11g: 20dbm+/- 1.5dbm @54Mbps 11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 17dBm@MCS7,HT40 11a: 19.5dBm +/- 1.5dbm @54Mbps 11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20+/-1.5dBm @MCS8 11ac HT40: 17+/-1.5dBm @MCS9 11ac HT80: 14.5+/-1.5dBm @MCS9 11ax HT20: 20+/-1.5dBm @MCS9 11ax HT40: 17 +/- 1.5dBm @MCS9 11ax HT80: 14.5 +/- 1.5dBm @MCS11 |
| Receiver Sensitivity | 11b: -99dBm @11Mbps 11g: -95dBm @54Mbps 11g/n: -90dBm @HT20, MCS7 -86dBm @HT40, MCS7 11a: -90Bm @54Mbps 11a/n: -85dBm @HT20, MCS7 -81dBm @HT40, MCS7 11ac: -90dBm +/- 2dBm @VHT20 MCS8 11ac: -85dBm +/- 2dBm @VHT40 MCS9 11ac: -68dBm +/- 2dBm @VHT80 MCS9 11ax: -61dBm +/- 2dBm @HE20 MCS11 11ax: -58dBm +/- 2dBm @HE40 MCS11 11ax: -55dBm +/- 2dBm @HE80 MCS11 |
| Antenna | External Antenna connector (IPEX) x4 |
| Frequency Range | US, Canada 2.412GHz~2.462 GHz (CH1~CH11) EU, Japan: 2.412GHz~2.472GHz (CH1~CH13) 5.15GHz ~5.875GHz |
| Software | Security: 64/128-bit WEP Encryption, WPA, WPA2 Driver: Linux |
| Operating Voltage | DC 3.3V ± 5% |
| Temperature | Operating: 0°C ~ +70°C Storage : -20°C ~ +90°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
| Dimension | 50.95(H) x 30(W)mm |
Power consumption maximum is 9W, average is 4 – 8W
Main board Power Supply design please provide 3.3V 3A, minimum 3.3V 2.5A.
Additional information
| Weight | 0.0185 kg |
|---|---|
| Dimensions | 9.5 × 6.5 × 1.5 cm |
