Wi-Fi HaLow Sub-GHz Wireless Module Morse Micro MM6108
$22.58

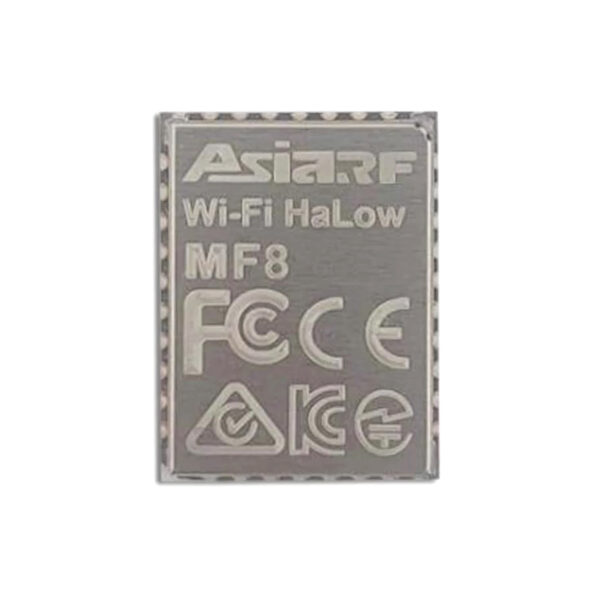

MM610X-MF8 is a Wi-Fi HaLow Sub-GHz wireless module based on Morse Micro® MM6108 RF SOC
MM610X-MF8 is a Wi-Fi HaLow Sub-GHz wireless module based on Morse Micro® MM6108 RF SOC
Sub 1GHz
Distance > 1 KM (0.625 Mile)
INTRODUCTION
HaLow (pronounced halo) is a low-power, long-range version of the IEEE 802.11 Wi-Fi standard. HaLow is based on the Wi-Fi Alliance 802.11ah specification and is expected to play an important part in the Internet of Things (IoT).
Wi-Fi CERTIFIED HaLow™, the designation for products incorporating IEEE 802.11ah technology, augments Wi-Fi by operating in spectrum below 1 gigahertz (GHz) to offer longer range and lower power connectivity.
Excellent RF performance, MM610X-001 module has excellent sensitivity with good selectivity and blocking performance. MM610X-001 module come with U.FL connector for external Sub-GHz antenna.
Certificate FCC IC CE TELEC NCC RCM is applying.
There are many IO interfaces: UART, SDIO, SPI, I2C and rich GPIOs for PWM and switch functions.
2 KMs LOS distance communication: MM610X-001 module is tested to support up to 2000 meters LOS distance communication, good for both indoor and outdoor IoT applications.
20Mbps UDP Throughput is the best capacity compared with all Wireless IoT long distance throughput. The PHY data rate is 32.5Mbps.
Protocol
- 11ah OFDM PHY supporting future WFA HaLow certification
- BPSK & QPSK, 16-QAM & 64-QAM Modulation
- Automatic frequency & gain control
- Packet detect & channel equalization
- Forward Error Correction (FEC) coding & decoding
- Supports Modulation and Coding Scheme (MCS) levels MCS 0-7 and MCS 10
- Supports 1 MHz duplicate mode
- Supports optional Traveling Pilot
- 11ah MAC supporting future WFA HaLow certification
- Support for STA and AP roles
- Listen-Before-Talk (LBT) access with energy detect
- 11 power save
- 11 fragmentation and defragmentation
- Power-Saving Target Wake Time (TWT) support for long battery life
- Automatic and manual MCS rate selection
Radio Operation
- Single-stream max data rate of 32.5 Mbps (MCS=7, 64-QAM, 8MHz channel, 4 uSec GI)
- Radio supporting worldwide Sub-1 GHz frequency bands
- Frequency Range: 850-950 MHz
- Channel width options of 1/2/4/8 MHz
Transmitter Performance
- Tx output power (dBm): +21 dBm (Typical)
- Tx EVM @ 27dBm BPSK (dB)
RF Interface
- On-chip 8dBm output power, with FEM reach 27dBm
- External antenna connector
Power Consumption
- 37 mA RX current @ Listen
- 40 mA RX current @ Active Receive
Power Management Unit (PMU) for various modes of operation
- Power-down (interrupt driven wake)
- Hibernate mode (internal / external wake)
- Target Wake Time mode
- Active Receive / Transmit mode
- Integrated DC-DC converter supports a wide supply voltage, from 1.8V to 3.6V
Regulatory Certifications by requested
- CE/FCC/JATE/NCC
- ESD: HBM 2KV / MM 200V, Latch-up: 150mA
- Halogen-free / RoHS 2.0 / Reach Annex 14 & 17
Operating Range
- 0-3.6V for VBATT and VDDFEM. 1.8-3.6V for VDDIO
- -40 to +85°C
Dimensions

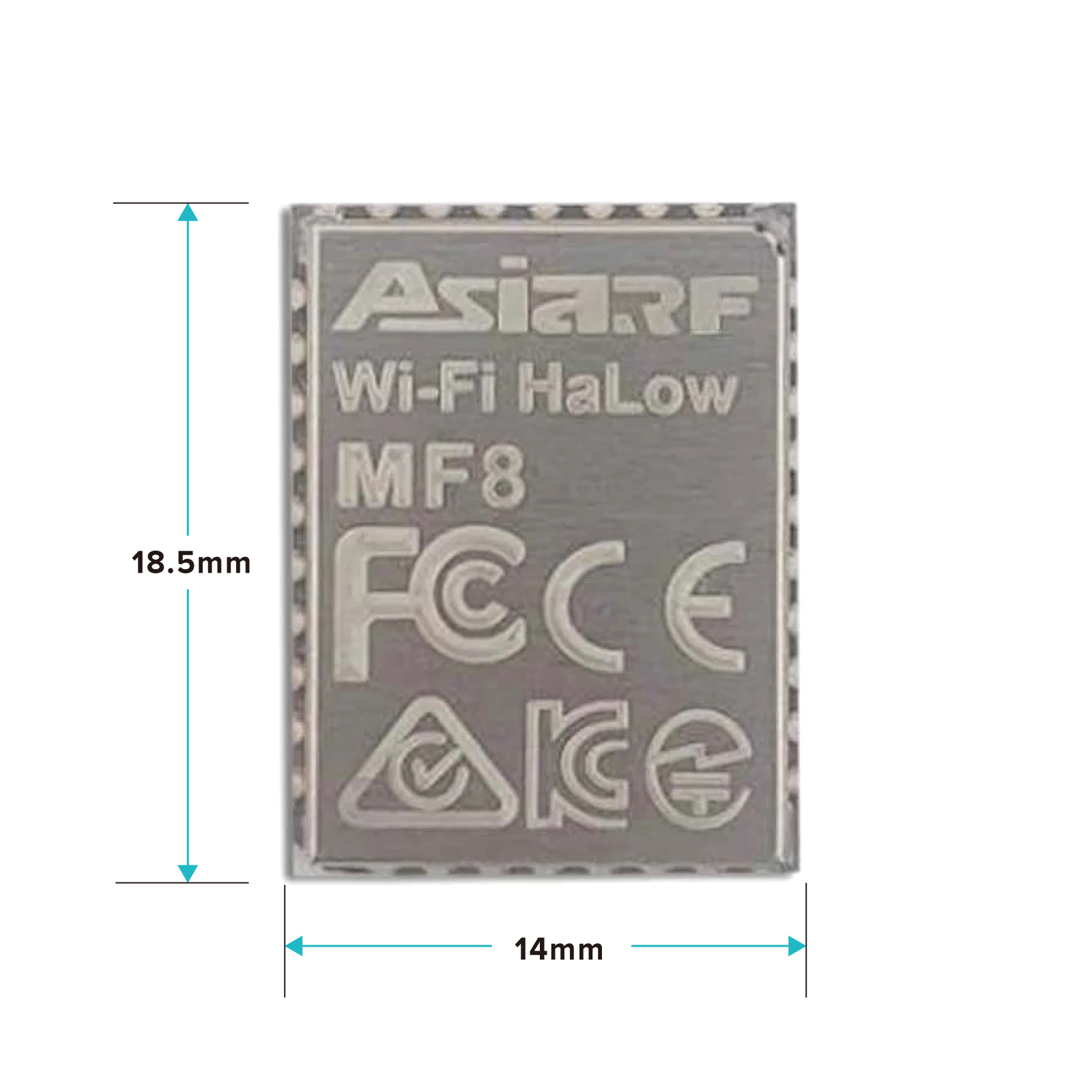

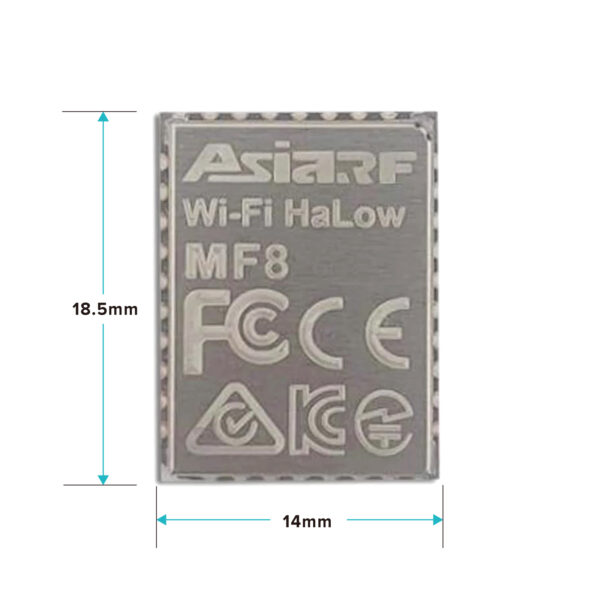

- 22 mm x 17.0 mm x 2.0 mm (module)
Security
- AES encryption engine
- Hardware support for SHA1 and SHA2 hash functions (SHA-256, SHA-384, SHA-512)
- WPA3 including protected management frames (PMF)
- Opportunistic Wireless Encryption (OWE)
MCU Peripherals
- 12-bit 1 Msps SAR ADC
- 12 × GPIO
- 3 × UART, 1 x SPI, 1 x I2C
- 2 × 16-bit Timer/Counter
- 1 × 32-bit Timer/Counter
- 32-bit Real Time Counter
- 24-bit Low Energy Timer for waveform generation
- 2 × Watchdog Timer
- Power Management Unit for power state switching
- SDIO 2.0 compliant slave interface
- SDIO 2.0 Default Speed (DS) at 25MHz
- SDIO 2.0 High Speed (HS) at 50MHz
- Support for both 1-bit and 4-bit data mode
- Support for SPI mode operation
Applications
| Surveillance Cameras and Sensors | Cloud Connectivity |
| Low-power Sensor Networks | Building Automation Systems (BAS) |
| Asset Tracking and Management | Machine Performance Monitors & Sensors |
| Building Access Control & Security | Drone Video and Navigation Communications |
| Connected Toys and Games | Rural Internet Access |
| Agricultural and Farm Networks | Utility Smart Meter and Intelligent Grid |
| Proximity Sensors | Industrial Automation Controls |
| Smart Home Automation | EV Car Chargers |
| Appliances | Construction Site Connectivity |
| Smart Signs and Kiosks | Retail Point-of-Sale Terminals |
| Vehicle-to-Vehicle Communications | IP Sensor Networks |
| Biometric IDs and Keypads | Warehouse Connectivity |
| Intelligent Lighting Controls | BT/ZigBee(™)/Z-Wave(™) to Wi-Fi HaLow Gateways |
| Wi-Fi to Wi-Fi HaLow Bridges | Wi-Fi HaLow Client Adapters/Dongles |
| Smart City Networks |
Ordering Information
| Part Number | Description |
| MM610X-MF8 | WiFi HaLow Module |
