Wi-Fi HaLow Sub-1GHz+2.4GHz, long-range, low-power, ideal for IoT with wide coverage and strong penetration.
Omni Directional

Wi-Fi HaLow Antenna ANTSM90003004001

$8.80

Wi-Fi HaLow Antenna 2.5DBI 900MHz ANTSM90003004001



x

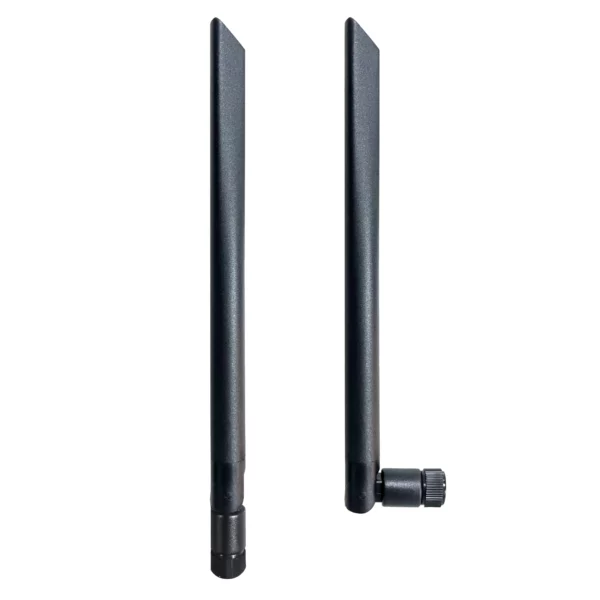

This Wi-Fi HaLow antenna ANTSM90003004001 operates in the frequency range of 900MHz  and has a gain of  2.5 dBi.

Electrical Properties

Frequency Range 900-930MHz
Impedance 50 Ohms nominal
V.S.W.R 2.0 MAX
Gain 2.5 DBi
Admitted power radiation 1W
Pattern of Radiation Toroidal
Radiation Omni
Polarization Vertical
Connector SMA PLUG

 Mechanical Properties

Operation temperature range -40℃~+85℃
Storage temperature range -40℃~+85℃
Color Black
IP Level IP-65

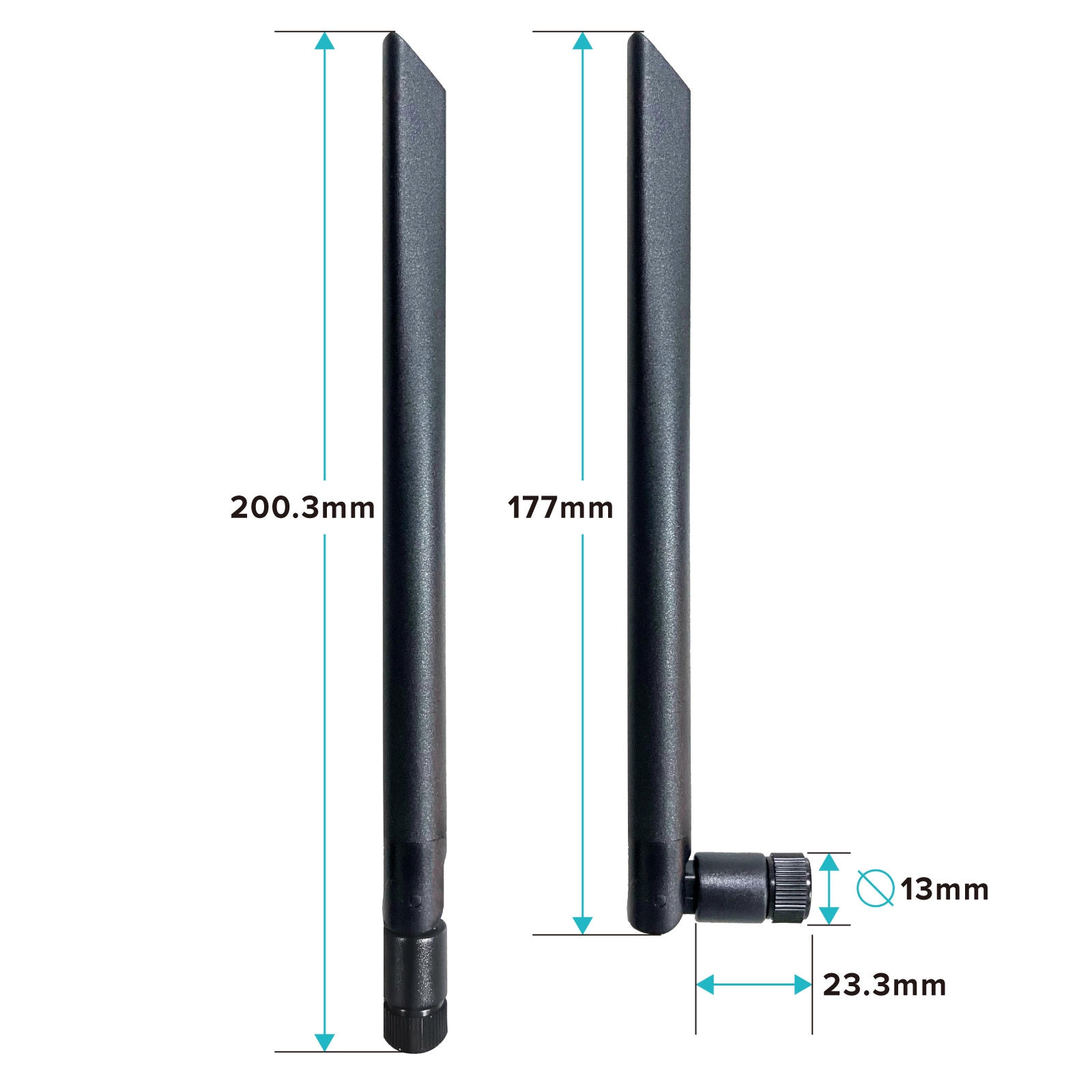

Dimension 200.3
Weight 0.03kg
Weight 0.03 kg
Dimensions 23 × 2.5 × 2.5 cm
