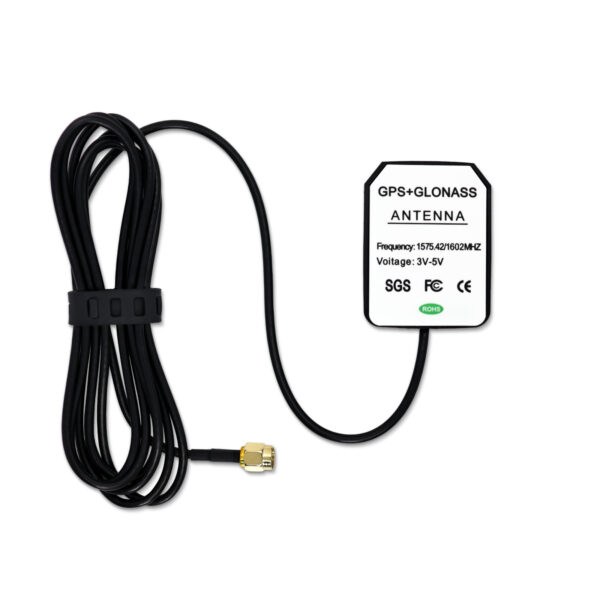

ANTS157528S01001 GPS Antenna

$8.00

ANTS157528S01001 GPS Antenna

Quantity Discount (%) Price
1 - 99 $8.00
100+ 12.5 % $7.00
x

ANTS157528S01001 GPS Antenna

2.7~5V/28dB/RG174/1.8M/SMA(M)

RoHS Compliant Product

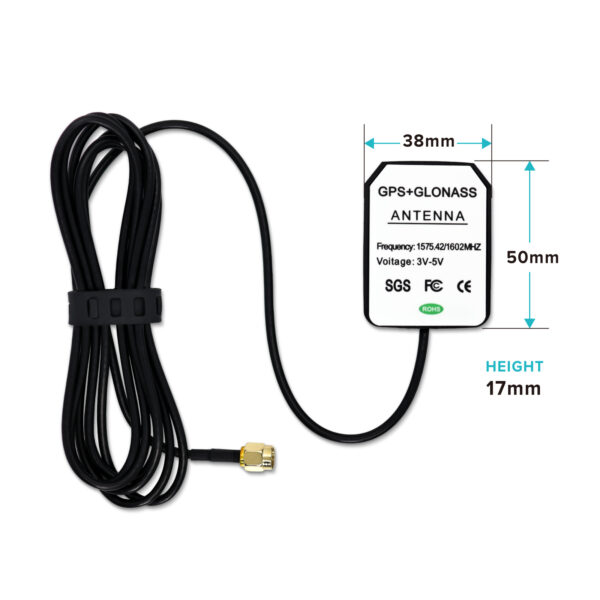

GPS Antenna ANTS157528S01001-dimension

Learn more on our blog : From Wireless to IoT : AsiaRF’s Journey of Innovation

Or follow us on Linkedin

  • WITH LOW NOISE AMPLIFIER

Specifications | GENERAL

Environmental conditions
Operation Temperature -40℃ to + 80℃
Storage Temperature -40℃ to + 80℃
Electrical specifications
Operation Voltage Min: 2.7 V

Typ.: 3.0 V

Max: 5.0V

Current Consumption Typ.: 10 mA

Max: 15mA @ 3.0V

Mechanical specifications
Mounting Magnet mount.
Cable Pulling Off Force 3Kg
Water Proof IP67
Housing Material ABS-758



Specifications | ANTENNA

Frequency Range 1575.42 ± 1.023 MHz.

1602±8 MHz

Gain 1575.42MHz:-0.5 dBi Typ.

@zenith(28 mm x 28mm GND)

1602MHz:+2.5dBiTyp.

@zenith(28mm x 28mm GND)

Polarization RHCP



Specifications | LNA

Frequency Range 1575.42±1.023 MHz

1602±8 MHz

Gain 28±3dB ( + 25 ℃± 5℃)
Noise Figure 1.5 dB Typ. ( + 25 ℃ ± 5℃)
Output Impedance 50Ω
ESD 2.5KV(HBM)



TOTAL SPECIFICATIONS | Through Antenna, LNA, Cable and Connector

RF Cable RG174 ,ψ2.7 ± 0.2mm

Cable Length: 1.8M ± 30mm

RF Connector SMA(M)
Frequency Range 1575.42±1.023 MHz

1602±8 MHz

Gain at Zenith :

1575.42MHz: 27.5± 3dBic – (cable loss) Note:1

1602MHz: 30.5± 3dBic – (cable loss) Note:1

Output Impedance 50Ω
VSWR 2.0 Max

Note 1: Cable Loss = Max.( –1.4dB / m)

Weight 0.2 kg
Dimensions 15 × 12 × 4 cm
