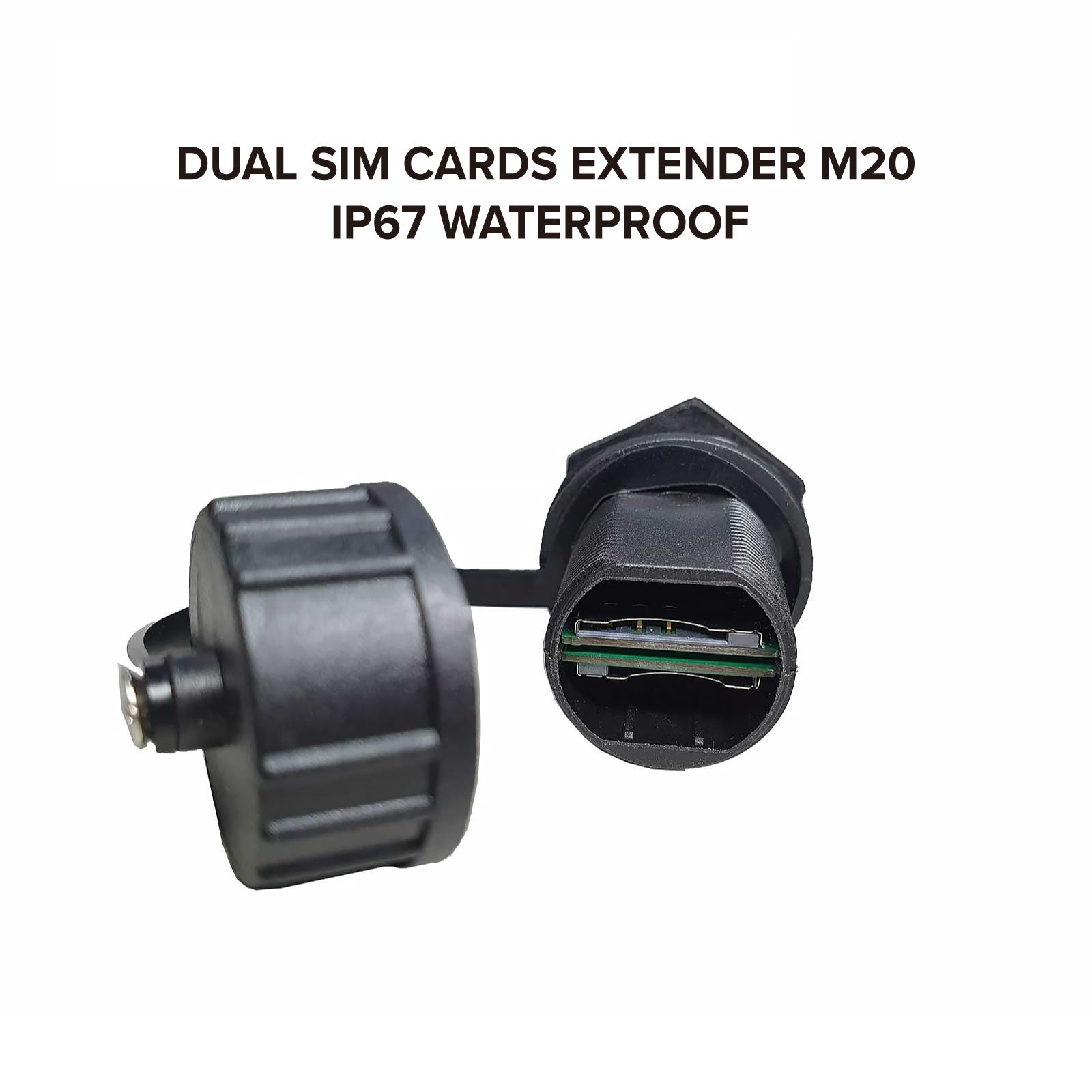

Dual Sim Card Extender M20 IP67 Waterproof for Cabinet Chassis Case Frame Envelope Outdoor

Dual SIM Card Extender IP67 Waterproof for Cabinet Chassis Case Frame Envelope Outdoor.

Dual SIM card Extender dimension IP67 Waterproof chassis is a key component applied in all LTE 5G NBIoT outdoor applications.

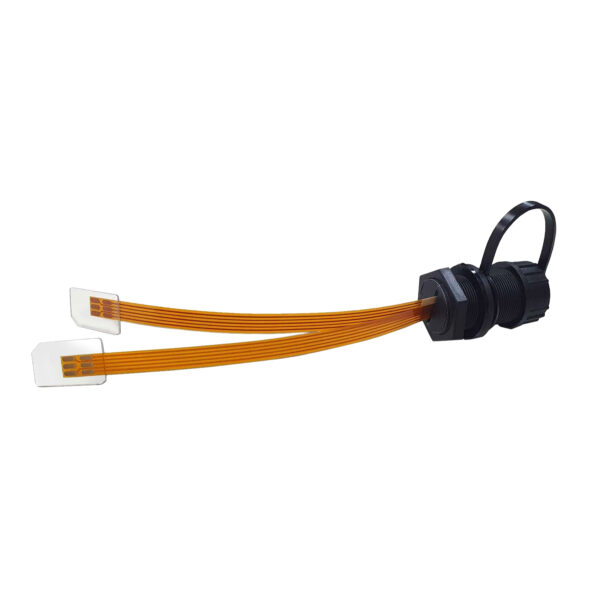

This dual SIM card extender connector is combined with 1 waterproof connector and 2 SIM card extenders.

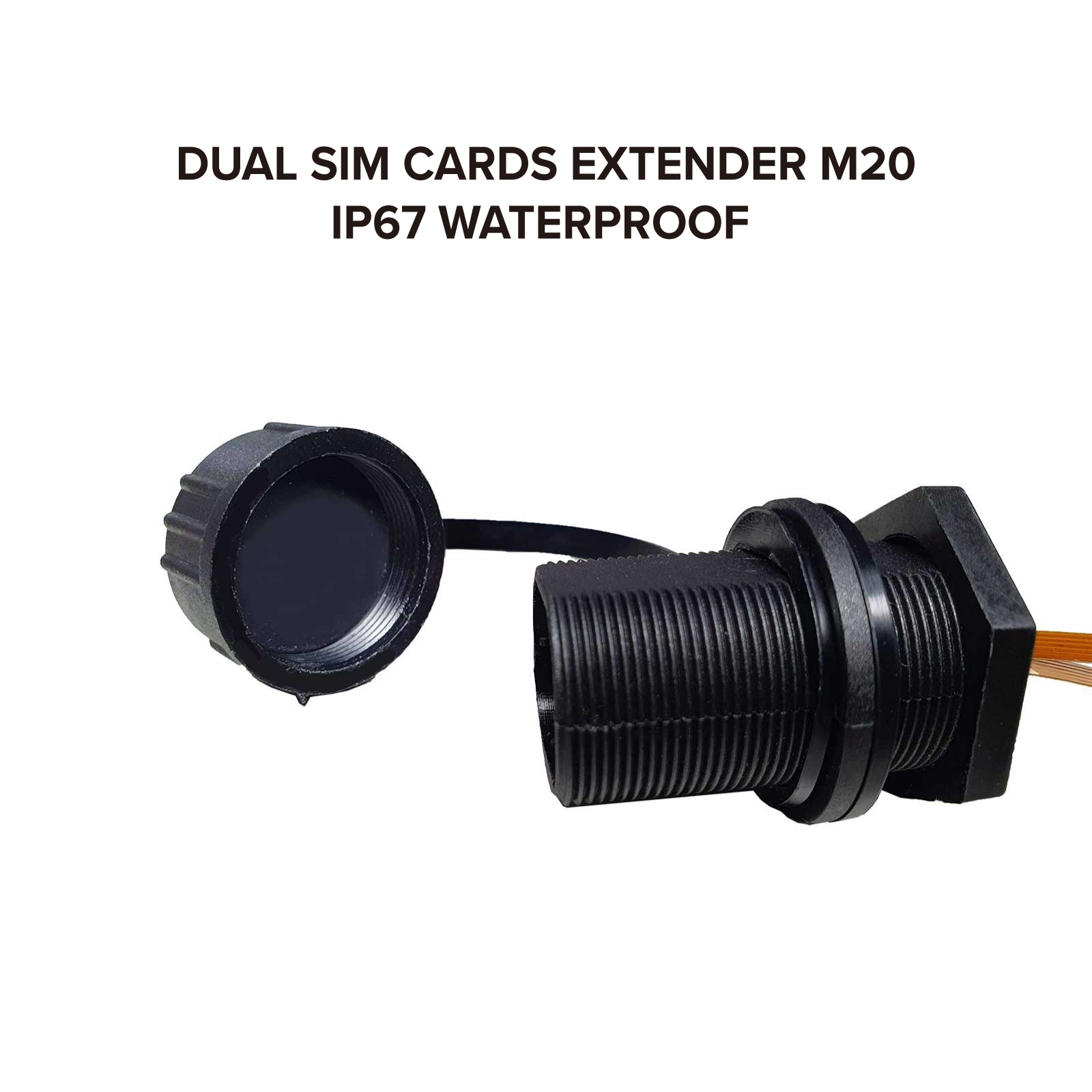

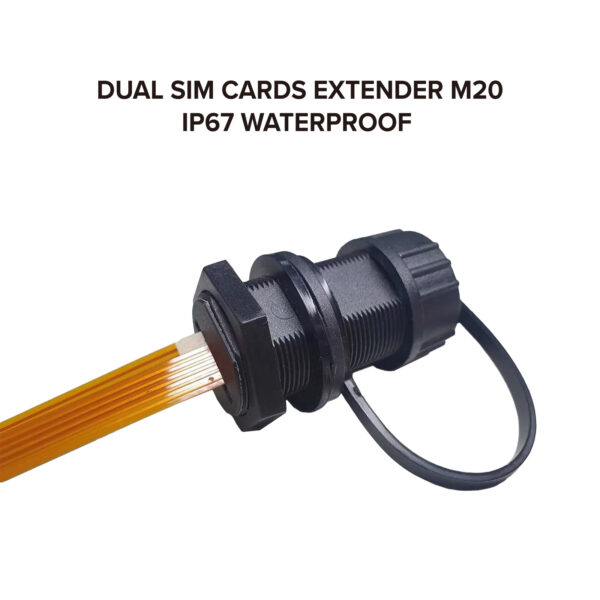

• IP67 Waterproof Connector

The connector is a IP67 waterproof case with the dimension 20.5*36.1 mm, which can be put in 2 SIM card extenders to become a SIM CARD EXTENDER CABINET.

• SIM Card Extender

There are 6 contact points on the SIM mock card, in general market, the SIM card extender only provide 5 contact point conducted, they ignore the VPP contact point. But we specially develop a tooling to provide 6 contact points conducted included VPP pad.

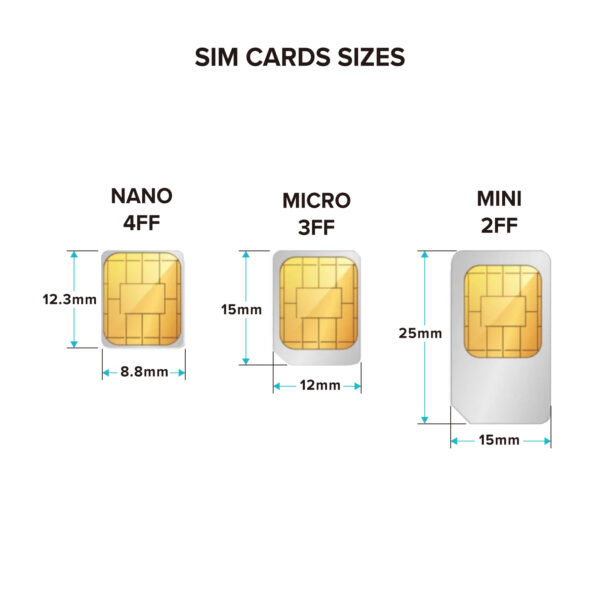

• 2 types of real SIM slot for Nano / Micro SIM (Mini SIM excluded)
• On the flexible PCB end side is Nano / Micro / Mini mock card.

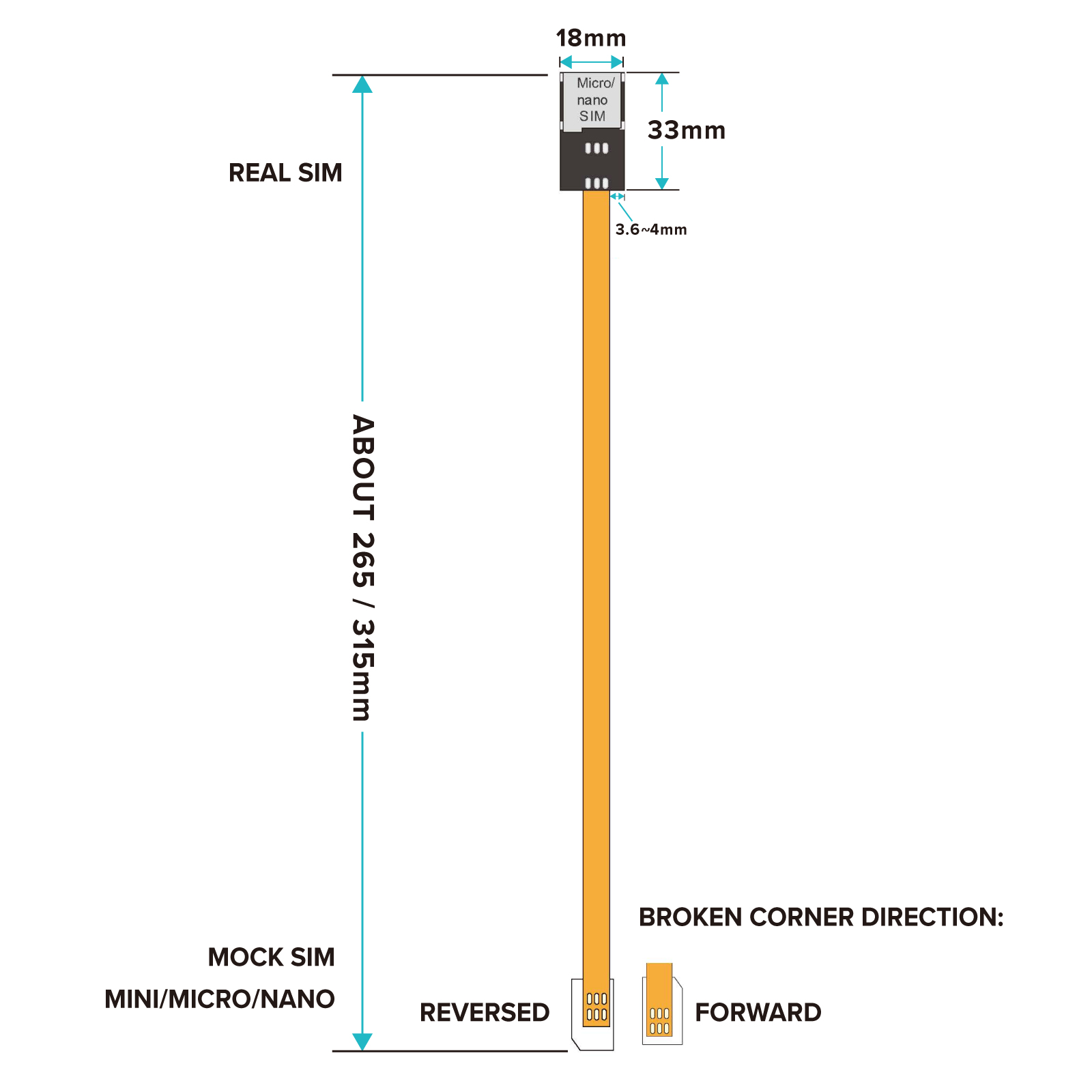

• 2 differences of length, 26.5 and 31.5 cm are available.
• 24 models of SIM card extender are on the list for you to choose.

Please confirm two ends SIM size. And pick up 2 extenders to combine a DUAL SIM cabinet set. Please write down the PN on the purchase order.

About mock card end (the end inserts into your board), please confirm the direction is forward or reverse.

Welcome to do Customization.
