Wi-Fi HaLow Sub-1GHz+2.4GHz, long-range, low-power, ideal for IoT with wide coverage and strong penetration.

Wi-Fi HaLow Gateway AP7628-UWH 802.11ah Ethernet to USB C Dongle

$0.00

Wi-Fi HaLow Gateway AP7628-UHM is a small-size 8 (L) x 5 (W) x 1.5 (H) cm, Wi-Fi 4 & Wi-Fi HaLow IoT  Gateway Ethernet to USB C Dongle.
USB drivers: Windows, MAC, UEFI (PXE, UNDI) and Linux supported.

*Country Standards: For Singapore customers: Please choose either the US or EU version based on your requirements.

Currently out of stock. If you would like to purchase this product, please refer to ARFHL-UM for availability.

x

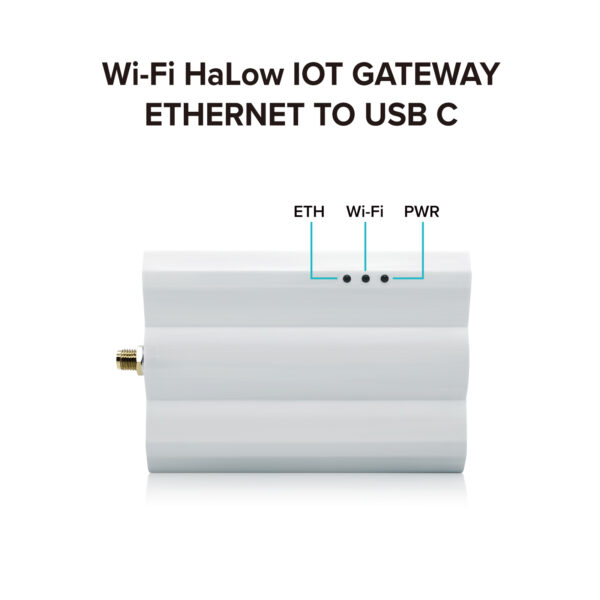

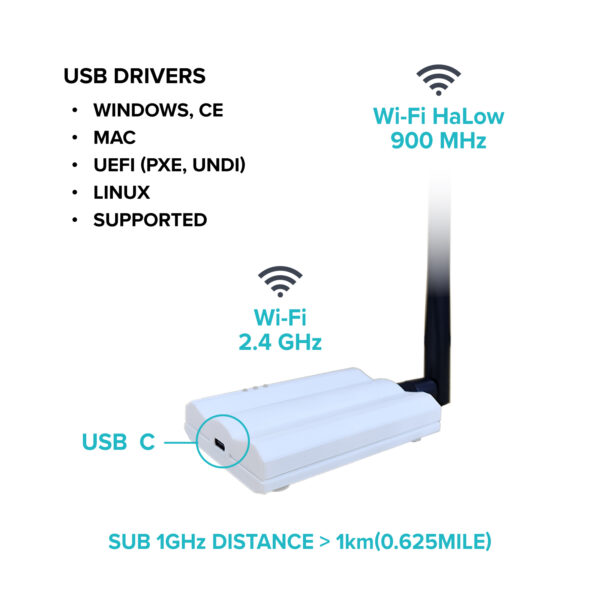

Wi-Fi HaLow Gateway AP7628-UWH is a small-size 9 (L) x 6 (W) x 1.5 (H) cm, Wi-Fi 4 & Wi-Fi HaLow IoT Gateway Powered by Mediatek MT7628 SOC Ethernet to USB C Dongle.

The HaLow long-range transmission Clinet device adopts a USB Type C interface for power supply and supports USB-Ethernet port functionality, allowing for the direct generation of an Ethernet network interface through the USB. The hardware utilizes the Mediatek MT7628 SOC and Morse Micro HaLow wireless communication technology.

USB drivers: Windows, MAC, UEFI (PXE, UNDI) and Linux supported.

Temporary cases only, will make tooling in near future. You can buy this for experiment and proof of your concept.

Wi-Fi HaLow gateway enables the transfer of video and IoT data over distances exceeding 1 KM, which is 10x farther than 2.4 GHz Wi-Fi or Bluetooth along with 100x the coverage of traditional Wi-Fi networks, making it perfect for warehouses, factories, retail stores and other large campus environments.

Tailored For IoT, Wi-Fi HaLow Boasts 6 Undeniable Advantages:

1.Low Power
Wi-Fi HaLow is designed for ultra-low power consumption, extending device battery life up to 5 years. This eliminates the hassle of frequent battery replacements, saving your enterprise time and manpower costs.

2.Long Range Connectivity
Operating in the sub-1GHz frequency band, Wi-Fi HaLow can provide stable connections at distances of up to 1 kilometer. That’s 10 times the coverage of traditional Wi-Fi, with a 100 times larger coverage area and 1000 times the spatial capacity. Even thick walls or large machinery are no longer an issue, solving the problem of network coverage.

3.Strong Penetration
This Wi-Fi technology can penetrate various obstacles, including thick walls and metal structures. It can even penetrate two 30cm thick steel plates, maintaining a reliable connection in complex and highly-interfering industrial environments.

4.Security
Wi-Fi HaLow supports the latest and highest-level encryption and security mechanisms, such as WPA3, ensuring the privacy and security of data transmission. This provides peace of mind and addresses your security concerns.

5.8000+ stable nodes
Imagine being able to connect over 8000 devices and sensors simultaneously with a single Wi-Fi network. In the past, you might have needed multiple routers to achieve this, but now it can be done with just one. This high-density connectivity makes it ideal for industrial IoT applications, saving equipment setup costs.

6.Simple Setup
Wi-Fi HaLow is as easy to set up as traditional Wi-Fi. There’s no need for complex configurations or additional research; simply plug it in, and it’s ready to use. This eliminates the need for extra effort in setting up your wireless connectivity devices.

In simple terms, Wi-Fi HaLow is a new Wi-Fi technology designed primarily for Industrial Internet of Things (IIoT) applications. It stands out for its low power consumption, long-range connectivity, and ability to penetrate obstacles, making it a great fit for challenging environments and remote monitoring. To put it briefly, Wi-Fi HaLow offers a robust communication solution with significant implications for our future daily lives and work.

AsiaRF Wi-Fi Alliance HaLow Certified Halow for IoT
AsiaRF Wi-Fi Alliance HaLow Certified Halow for IoT



Star Topology Network

In its initial stages of deployment, the purpose of Wi-Fi HaLow is to be used in both indoor and outdoor scenarios where traditional Wi-Fi cannot cover, such as battery-powered monitoring systems, wireless cameras, and door- bells. It is also commonly used in large venues, where a single HaLow access point may replace many APs, elimi- nating redundant, complex mesh architectures, simplifying installation, and reducing total cost of ownership. In an increasingly automated world, many industries, including industrial automation, process control sensors, building automation, warehouses, and retail stores, need this technology to maintain connectivity everywhere.

AsiaRF ARFHL-AP wifi halow star topology
AsiaRF AP7628-UWH- wifi halow star topology
AsiaRF ARFHL-AP wifi halow star topology 360
AP7628-UWH WiFi HaLow Star Topology 360



HaLow IIoT Applications



Learn more on our blog : Wi-Fi HaLow: Transforming Connectivity for a Sustainable Future

Related Linkedin Post : AsiaRF Unveils Revolutionary Developments for MWC Las Vegas 2023: The World’s First Wi-Fi HaLow IoT Solution to Debut Soon

FEATURES

  • Dual Wireless Technology: Wi-Fi 4 and Wi-Fi HaLow
  • Data Rate: Wi-Fi 4 Max up to 300Mbps
  • Data Rate: Wi-Fi HaLow: Max  to 32.8Mbps @ 8MHz Ch. BW
  • Plug and Play, USB drivers: Windows, MAC, UEFI (PXE, UNDI) and Linux supported.
  • Security: 64/128-bits WEP, TKIP,WPA, WPA2,AES,WPS
  • Multi-modes: Gateway, AP/Client

Hardware:

Wi-Fi HaLow specification details please refer to Wi-Fi HaLow module below link. MM610X-001

Standard IEEE 802.11 b/g/n standards compliant
IEEE 802.11ah standards compliant
Wireless LAN Wi-Fi 4: 2T2R Mode
Wi-Fi HaLow: 1T1R Mode
Antenna Wi-Fi 4: Embedded PIFA PCB antenna
Wi-Fi HaLow: External Dipole antenna
Interface USB type C 5V power input
Reset button
Frequency Range Wi-Fi 4: 2.400 ~ 2.4835GHz (subject to local regulations)
Wi-Fi HaLow: 850 ~ 950MHz (subject to local regulations)
Numbers of Wi-Fi Selectable Channels Wi-Fi 4:

  • 802.11n 20MHz/40MHz
  • 802.11b/g
  • USA, Canada (FCC):11 channels (2.412GHz~2.462GHz)
  • Europe (CE): 13 channels (2.412GHz~2.472GHz)
  • Japan (TELEC): 14 channels (2.412GHz~2.472GHz,2.484MHz)

Wi-Fi HaLow:

  • USA (FCC): 3x8MHz, 6x4MHz, 13x2MHz or 26x1MHz
  • Japan (TELEC): 2x4MHz, 4x2MHz or 5x1MHz
Data Rate Wi-Fi 4:

  • 802.11n: up to 300Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11b: 1, 2, 5,5, 11Mbps

Wi-Fi HaLow:

  • 1MHz BW: 0.16, 0.33, 0.66, 1, 1.33, 2, 2.66, 3, 3.33Mbps
  • 2MHz BW: 0.72, 1.44, 2.16, 2.88, 4.33, 5.77, 6.5, 7.22Mbps
  • 4MHz BW: 1.5, 3, 4.5, 6, 9, 12, 13.5, 15Mbps
  • 8MHz BW: 3.25, 6.5, 9.75, 13, 19.5, 26, 29.25, 32.5Mbps
Transmit Power Wi-Fi 4:

  • 11n HT40 MCS7: +13 dBm (+/- 2dBm)
  • 11g OFDM: +15 dBm (+/- 2dBm)
  • 11b CCK: +18 dBm (+/- 2dBm)

Wi-Fi HaLow:

  • +18dBm (+/- 2dBm)
Receiver Sensitivity Wi-Fi 4:

  • -66dBm at HT40 MCS7
  • -73dBm at 54Mpbs
  • -86dBm at 11Mpbs

Wi-Fi HaLow:

  • -78 ~ -105dBm
Dimension 90x60x15 mm
Certifications FCC IC CE TELEC NCC RCM applying
Power USB 5V 1A
Package Gift box: 126L x 96W x 30H mm



SOFTWARE FEATURE

  • Wi-Fi HaLow:
    • AP Mode/STA Mode/Bridge Mode
  • Network Features:
    • DHCP Client/Relay/Server
    • Dynamic DNS
    • NTP Client
    • DNS Cache/Proxy
  • Wi-Fi:
    • Support Multiple SSID
    • Clock rate up to 400MHzLegacy and High Throughput Modes.
    • High security with build-in: WEP 64/128, TKIP, WPA, WPA2 mixed,802.1xand 802.11i
    • 1X Authentication with RADIUS Client
    • QoS-WMM.WMM-PS
    • P2P
Weight 0.15 kg
Dimensions 22 × 8 × 2.5 cm
Country Standards

US, AU, NZ, JP, EU
