【Wi-Fi Advanced Kit】AP7622-001 5G 4G LTE Router Board with 2.4GHz Wi-Fi GPS LoRa IoT functions by MT7622 w/ 2.4GHz Wi-Fi manufacturer

$225.00

The AP7622-001 Wi-Fi Advanced Kit offers a reliable MT7622 board featuring integrated 5G and 4G LTE functionalities. Designed for essential connectivity needs, this kit comes equipped with a LoRa module and a GPS module. It also includes, GPS Antenna and five dual-band 2.4/5GHz Wi-Fi/BT PCB antennas, making it a cost-effective solution for various basic networking applications.

Package detail

WIFI 2.4/5G PCB Antenna WIFI 2.4/5G PCB Antenna *5pc

For optimal performance, consider purchasing one AW7615-NPD and one AW7916-NPD module for installation, or you can install two of the same module depending on your specific needs.



For purchasing inquiries, please connect with our sales team:  sales@asiarf.com  /  (+886) 2 2940 7880

Out of stock

AP7622-001 a 5G 4G LTE Router Board by Mediatek MT7622 with 2.4GHz Wi-Fi GPS LoRa IoT functions, after add on AW7915 serious Wi-Fi modules to be 11ax 3301 or 5702 Mbps Dual Bands Dual Concurrent.

AP7622 5G 4G LTE Router board with 2.4GHz Wi-Fi GPS LoRa IoT functions by MT7622 w/ 2.4GHz Wi-Fi manufacturer-banner

Wi-Fi 6E is optional

  • AP7622-001 is without AW7915 serious Wi-Fi modules, 5G/4G modules.
  • If you need, we have all OPENWRT firmware ready could let this board works with the Wi-Fi and 5G/4G modules. You need to buy AW7915-NP1, AW7915-NPD, or AW7916-NPD. 4G/5G modules we will put online soon.

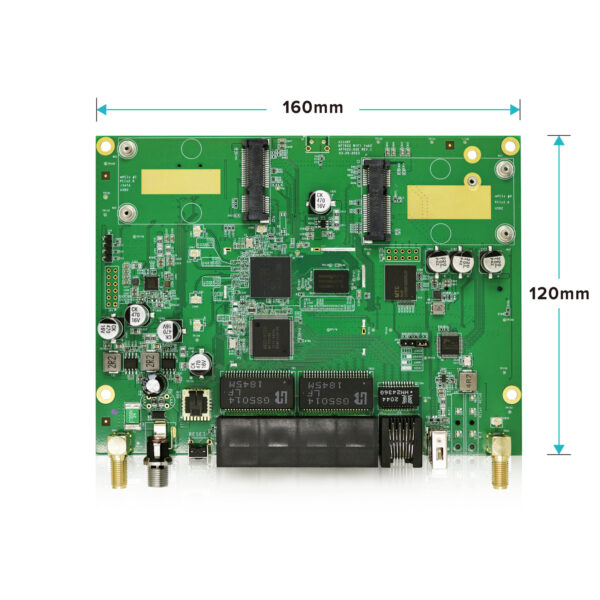

  • AP7622 is a 12 x 16 cm, 802.11ac AP Router board that achieves a data rate up to 3301 or 5702 Mbps. with high performance ARM® Cortex-A53 MPCoreTM operating up to 1.35GHz. With LTE module(optional), UART, I2C, SPI, and GPIOs can do many different applications.
AP7622-001 5G 4G LTE Router Board with 2.4GHz Wi-Fi GPS LoRa IoT functions by MT7622 w/ 2.4GHz Wi-Fi manufacturer
AP7622-001 5G 4G LTE Router Board with 2.4GHz Wi-Fi GPS LoRa IoT functions by MT7622 w/ 2.4GHz Wi-Fi manufacturer

MT7622 is fabricated with advanced silicon process and integrates a Dual-core ARM® Cortex-A53 MPCoreTM operating up to 1.35GHz and more DRAM bandwidth. This SoC also includes a variety of peripherals, including SGMII, RGMII, PCIe2.0, USB2.0(Host/Device), USB3.0(Host)ports, and 5-port 10/100 switch. To support popular network applications, MT7622A also implements 2.5Gbps HSGMII and 1Gbps RGMII Ethernet interface, embedded a 5-ports 10/100 switch and supports Bluetooth and 802.11n 2.4GHz 4T4R WLAN radio, 802.11ac/802.11ax (900Mbps) WLAN connection can be supported thru its PCIe port. Besides the connectivity features, the hardware-based NAT engine with QoS embedded in MT7622Atransporting the audio/video streams in higher priority than other non-timely services also enriches the home entertainment application. The SFQ separating P2P sessions from audio/video ones so that MT7622A guarantees the streaming service. With the advanced technology and abundant features, MT7622A is well positioned to be the core of next-generation Smart Wi-Fi AP router, and home gateway systems.

Specification Comparison Chart : Best-Selling Wi-Fi Module
Follow us on Linkedin :  From Wireless to IoT : AsiaRF’s Journey of Innovation

  • Mediatek MT7622 chipset with Interface UART, PWM, MDC, MDIO, JTAG, I2C, SPI, GPIOs and USB(LTE) port.
  • Flash SPI NAND Flash 128MB (1Gb), Max 512MB (4Gb)
  • DDR3 256MB (2Gb)
  • Data Rate up to 5702 Mbps
  • SIM card slot
  • Security: 64/128-bits WEP, TKIP,WPA, WPA2,AES,WPS
  • Multi-modes: MiFi, AP/Client
  • 5 Giga LAN ports

SOFTWARE FEATURE

  • Support OPENWRT, MTK SDK
  • Network Features:
  • Video, Storage
  • DHCP Client/Relay/Server
  • Dynamic DNS
  • NTP Client
  • DNS Cache/Proxy
  • Firewall
  • MAC/IP/Port Filter
  • Virtual Server
  • DMZ
  • Content Filter

MT7915 Wi-Fi 6 Modules supports 4×4 5GHz reach 2401Mbps. With 2 x MT7915 modules is to be 3 bands backbone mesh router.

Board Main Interfaces:

2 x mini PCIe slots 5 x Giga Ethernet Ports (PoE)
1 x Micro SD-XC 1 x M.2 Slot with USB 3.0 pins
1 x USB 2.0 1 x GPS (Quectel L70B)
1 x I2S 1 x SPI, GPIOs



Hardware Features:

Standard IEEE 802.11 a/b/g/n/ac standards compliant
Wireless LAN 4T4R 2.4GHz 900Mbps, 2x5GHz modules is 4802Mbps
4G / 5G Compatible with M.2 card
Memory Flash is SPI SOP8 128MB
DDR3 is 256MB 16bits BUS
Interface 2 x mini PCIe slots
1 x M.2 slot (USB 3.0)
5 x Giga Ethernet Ports
1 x Micro SD-XC
1 x USB 2.0
1 x GPS (Quectel L70B)
1 x I2C
1 x SPI
GPIOs
Dimension 120 x 160 x 30 mm
Certifications FCC/CE IC by request
Power DC Power Jack from 12V Barrel D=2.0mm (or 2 pins)



Weight 0.2 kg
Dimensions 17 × 14 × 3.5 cm
